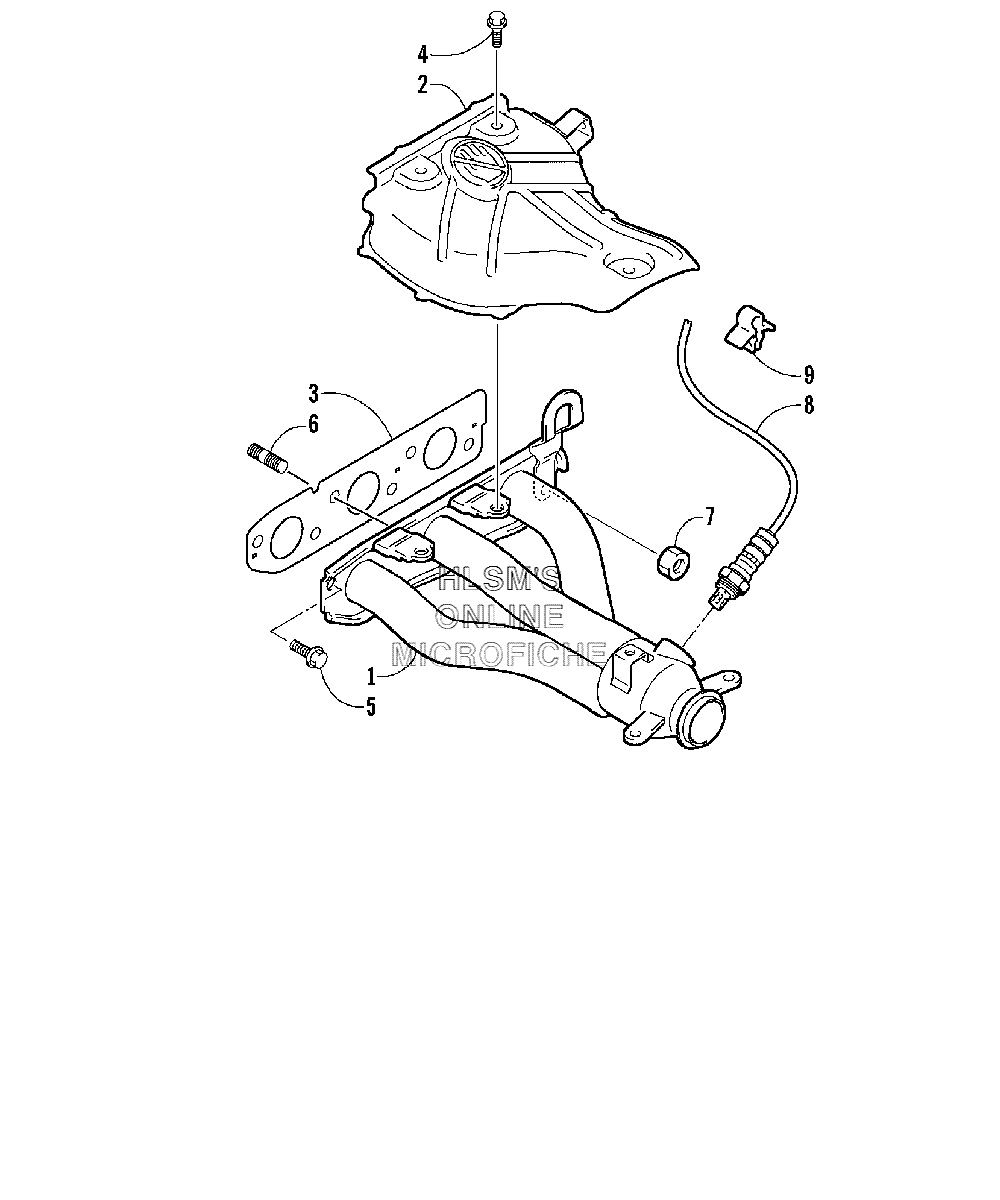

EXHAUST MANIFOLD ASSEMBLY для Arctic Cat 4-STROKE TOURING (INTERNATIONAL) - 2003 года выпуска
-
№АртикулНазвание
-
13006-586 MANIFOLD, EXHAUSTMANIFOLD, EXHAUST
-
23006-587 SHIELD, HEATSHIELD, HEAT
-
33006-216 GASKETGASKET
-
43006-100 BOLT 6X10BOLT 6X10
-
53006-103 BOLT 8X16BOLT 8X16
-
63006-106 BOLT, STUDBOLT, STUD
-
73006-111 NUTNUT
-
83006-588 SENSOR, OXYGENSENSOR, OXYGEN
-
93006-129 CLAMP, SENSORCLAMP, SENSOR
