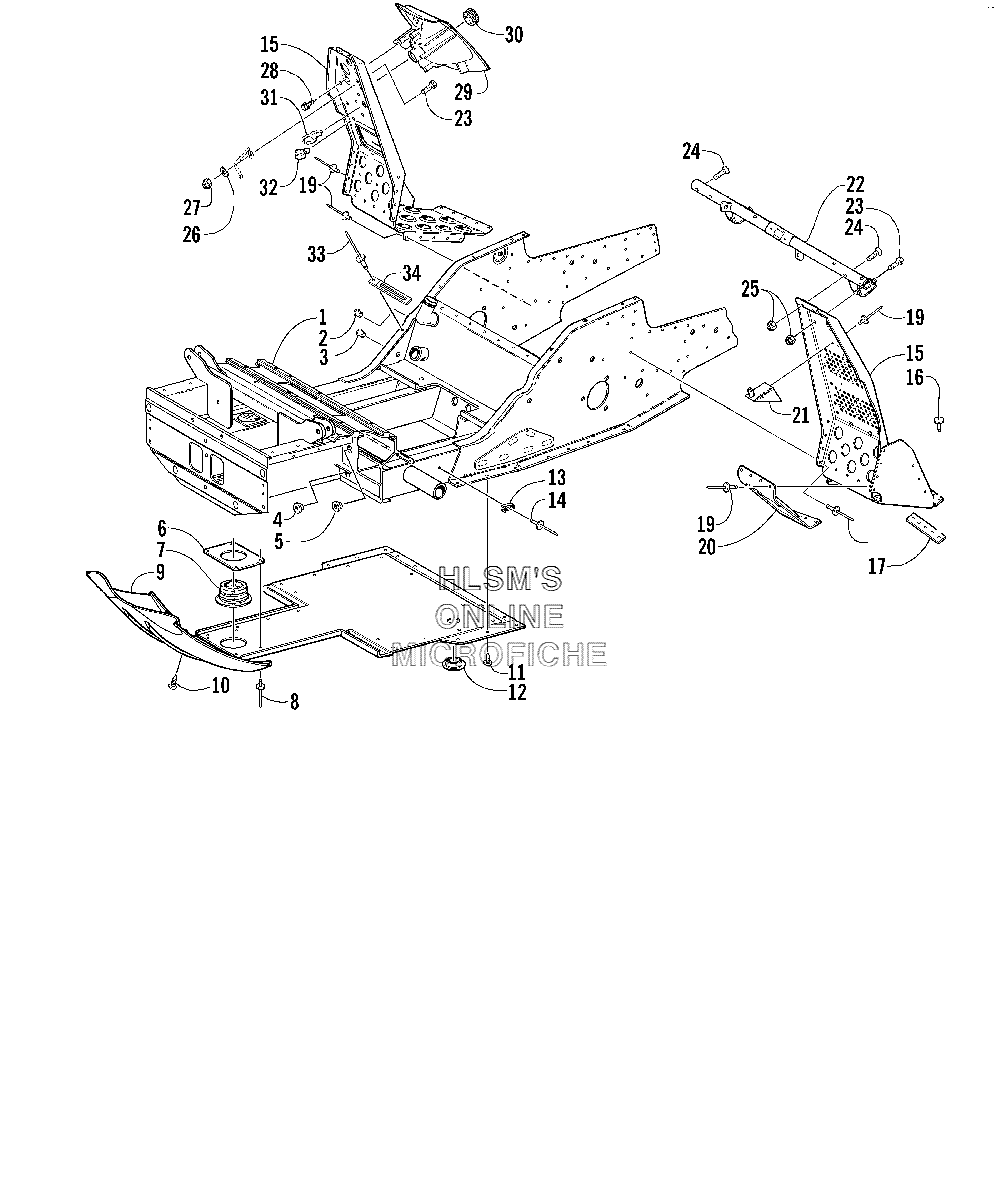

FRONT FRAME AND FOOTREST ASSEMBLY для Arctic Cat 4-STROKE TOURING (INTERNATIONAL) - 2003 года выпуска
-
№АртикулНазвание
-
10707-654 CHASSIS ASSY (INC. 2, 5)CHASSIS ASSY (INC. 2, 5)
-
20623-581 INSERTINSERT
-
30623-582 INSERTINSERT
-
40607-420 INSERT A, ARM MOUNT (LOWER)INSERT A, ARM MOUNT (LOWER)
-
50607-421 INSERT A, ARM MOUNT (UPPER)INSERT A, ARM MOUNT (UPPER)
-
60712-952 RING, EXHAUST OUTLET (BLACK)RING, EXHAUST OUTLET (BLACK)
-
71612-027 BOOT, EXHAUSTBOOT, EXHAUST
-
88060-508 RIVETRIVET
-
91706-996 BELLY PAN (CENTER) (GRAY)BELLY PAN (CENTER) (GRAY)
-
100623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
110623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
122606-367 PLUG, OIL DRAIN ACCESSPLUG, OIL DRAIN ACCESS
-
130623-228 MOUNT, CABLE TIEMOUNT, CABLE TIE
-
148060-428 RIVETRIVET
-
151706-884 FOOTREST (RIGHT) (BLACK)FOOTREST (RIGHT) (BLACK)
-
152706-113 FOOTREST (LEFT) (BLACK)FOOTREST (LEFT) (BLACK)
-
160623-282 RIVETRIVET
-
172706-110 PLATE, BACKING, FOOTRESTPLATE, BACKING, FOOTREST
-
180623-341 RIVETRIVET
-
190623-166 RIVETRIVET
-
201706-886 PLATE, BACKING (RIGHT) (BLACK)PLATE, BACKING (RIGHT) (BLACK)
-
201706-887 PLATE, BACKING (LEFT) (BLACK)PLATE, BACKING (LEFT) (BLACK)
-
210705-173 BRACKET, MOUNTING, BELT GUARDBRACKET, MOUNTING, BELT GUARD
-
220705-924 SUPPORT, STEERINGSUPPORT, STEERING
-
238002-041 SCREW, CAPSCREW, CAP
-
248019-614 SCREW, MACHINESCREW, MACHINE
-
258041-366 NUT, LOCKNUT, LOCK
-
268050-212 WASHERWASHER
-
278040-366 NUT, LOCKNUT, LOCK
-
280623-297 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
291706-099 CUP, RECOIL ROPECUP, RECOIL ROPE
-
300623-831 PLUG, RECOIL CUPPLUG, RECOIL CUP
-
310623-677 CABLE TIE, PUSH, MOUNTCABLE TIE, PUSH, MOUNT
-
320623-101 CLIP, ROUTINGCLIP, ROUTING
-
338060-504 RIVETRIVET
-
343002-964 CLAMP, WIRECLAMP, WIRE
