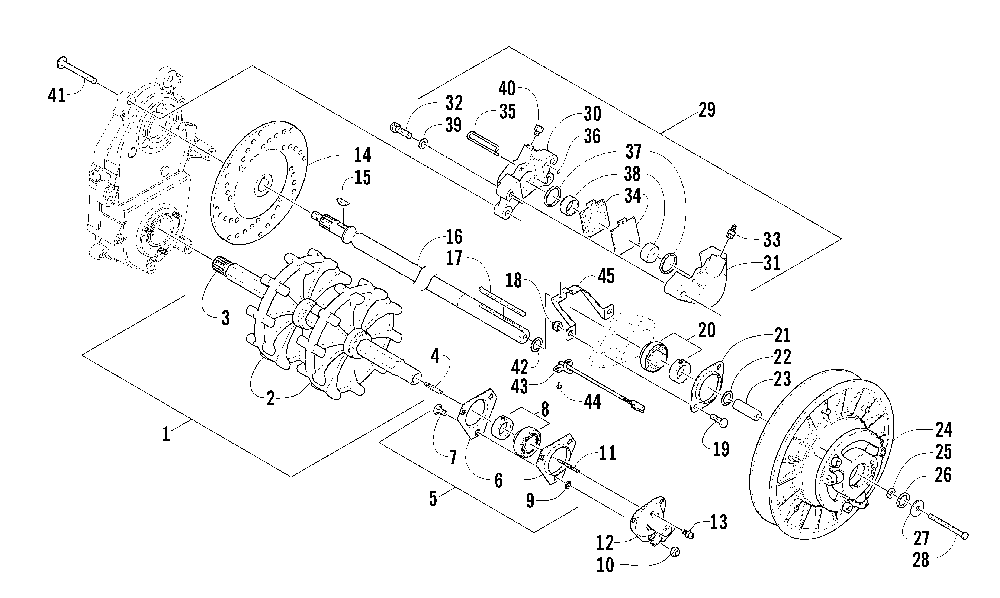

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES для Arctic Cat 4-STROKE TOURING (INTERNATIONAL) - 2003 года выпуска
-
№АртикулНазвание
-
10728-065 TRACK DRIVE ASSY (INC. 2, 4)TRACK DRIVE ASSY (INC. 2, 4)
-
21602-200 SPROCKET, DRIVESPROCKET, DRIVE
-
30602-487 DRIVESHAFTDRIVESHAFT
-
40120-247 BUSHING, DRIVEBUSHING, DRIVE
-
50702-476 PLATE, FLANGE, BEARING ASSY (INC. 6, 9)PLATE, FLANGE, BEARING ASSY (INC. 6, 9)
-
60602-198 PLATE, FLANGEPLATE, FLANGE
-
78011-130 BOLT, CARRIAGEBOLT, CARRIAGE
-
81602-375 BEARING, 1 IN. W/LOCK COLLARBEARING, 1 IN. W/LOCK COLLAR
-
90623-810 RING, SOLDERRING, SOLDER
-
108040-426 NUT, LOCKNUT, LOCK
-
110602-154 CABLE, ADAPTERCABLE, ADAPTER
-
120720-005 ADAPTER, DRIVE (INC. 13)ADAPTER, DRIVE (INC. 13)
-
130104-062 FITTING, GREASEFITTING, GREASE
-
141602-205 DISC, BRAKEDISC, BRAKE
-
150602-598 KEYKEY
-
160702-266 SHAFT, DRIVENSHAFT, DRIVEN
-
170101-076 KEYKEY
-
188041-426 NUT, LOCKNUT, LOCK
-
198002-132 SCREW, CAPSCREW, CAP
-
201602-370 BEARING, 1 IN. W/LOCK COLLAR, RE, LUBRICATIVEBEARING, 1 IN. W/LOCK COLLAR, RE, LUBRICATIVE
-
210602-892 PLATE, FLANGEPLATE, FLANGE
-
220623-118 WASHERWASHER
-
220623-119 WASHERWASHER
-
230648-066 SHAFT, STUBSHAFT, STUB
-
240726-145 CLUTCH, DRIVENCLUTCH, DRIVEN
-
250123-053 WASHERWASHER
-
260123-578 WASHERWASHER
-
270123-019 WASHERWASHER
-
288002-142 SCREW, CAPSCREW, CAP
-
290602-829 CALIPER, BRAKE ASSY (INC. 30, 40)CALIPER, BRAKE ASSY (INC. 30, 40)
-
328005-679 SCREW, CAPSCREW, CAP
-
330602-707 SCREW, BLEED, ASSYSCREW, BLEED, ASSY
-
340702-229 PAD, BRAKE, SET (INC. 35)PAD, BRAKE, SET (INC. 35)
-
350602-706 PIN, RETAININGPIN, RETAINING
-
360602-729 O-RING, HOUSINGO-RING, HOUSING
-
370602-583 O-RINGO-RING
-
380602-708 PISTONPISTON
-
398050-272 WASHERWASHER
-
400602-590 FITTING, ADAPTERFITTING, ADAPTER
-
418020-315 SCREW, CAPSCREW, CAP
-
421602-396 MAGNETMAGNET
-
430630-008 SWITCH, MAGNETICSWITCH, MAGNETIC
-
440623-137 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
452706-209 BRACKET, MOUNTING, MAGNETIC SWITCHBRACKET, MOUNTING, MAGNETIC SWITCH
