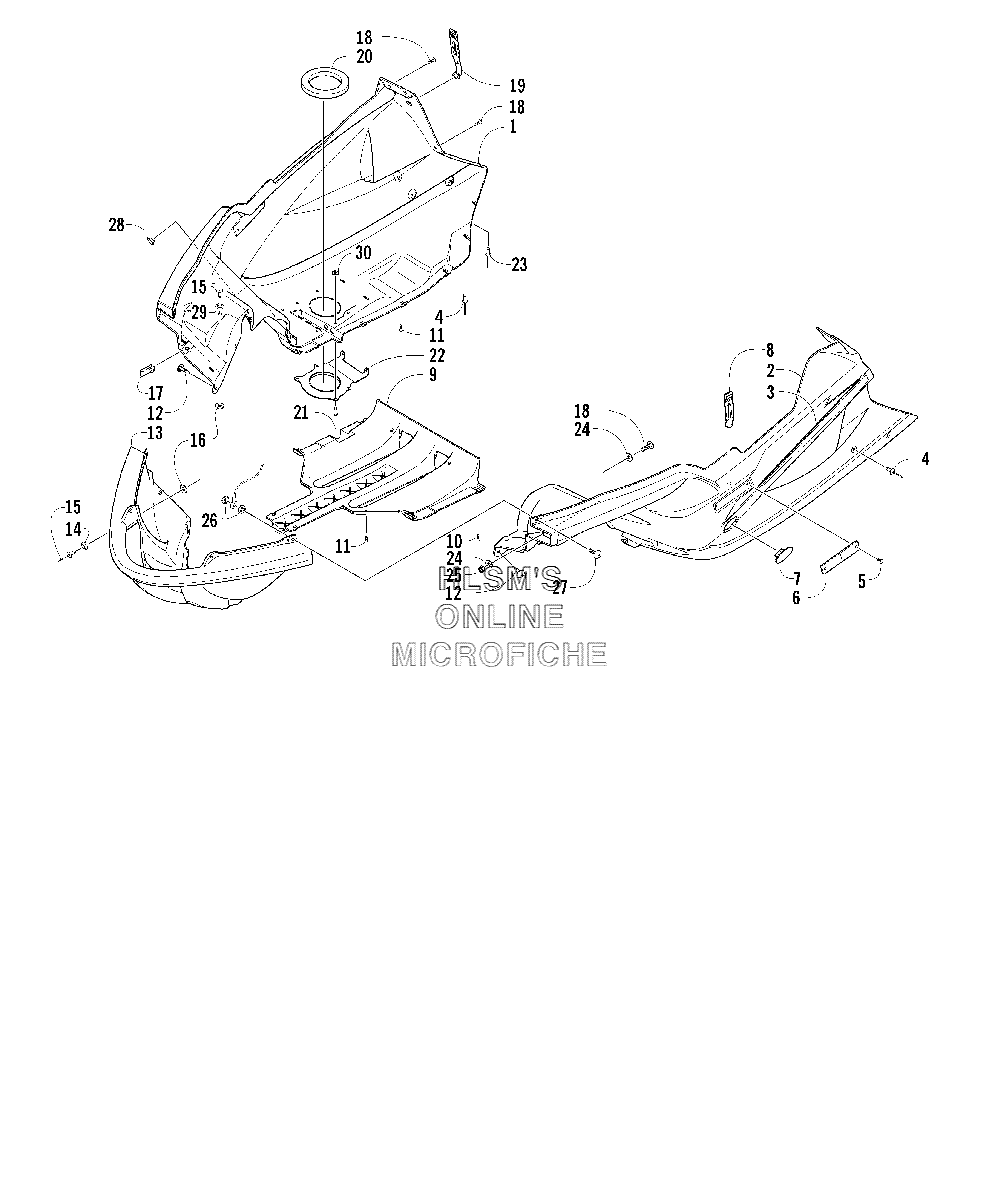

BELLY PAN ASSEMBLY для Arctic Cat 440 SNO PRO L/C - 2003 года выпуска
-
№АртикулНазвание
-
12706-236 BELLY PAN (RIGHT) (GREEN)BELLY PAN (RIGHT) (GREEN)
-
22706-237 BELLY PAN (LEFT) (GREEN)BELLY PAN (LEFT) (GREEN)
-
35611-176 DECAL, BELLY PAN (RIGHT)DECAL, BELLY PAN (RIGHT)
-
35611-177 DECAL, BELLY PAN (LEFT)DECAL, BELLY PAN (LEFT)
-
48061-708 RIVETRIVET
-
50623-269 CLIP, RETAININGCLIP, RETAINING
-
60606-526 REFLECTOR (FRONT) (AMBER)REFLECTOR (FRONT) (AMBER)
-
72606-350 PANEL, CLUTCH ACCESS (GREEN)PANEL, CLUTCH ACCESS (GREEN)
-
81606-930 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
93606-027 BELLY PAN (CENTER) (BLACK)BELLY PAN (CENTER) (BLACK)
-
101623-031 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
110623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
120623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
132706-334 BUMPER (FRONT) (BLACK) (INC. 14 AND SIX NO. 15, 16)BUMPER (FRONT) (BLACK) (INC. 14 AND SIX NO. 15, 16)
-
140116-074 SNAPSNAP
-
158060-229 RIVETRIVET
-
161623-153 WASHERWASHER
-
171623-030 NUT, SPEEDNUT, SPEED
-
188017-581 SCREW, MACHINESCREW, MACHINE
-
192606-624 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
201612-408 SEAL, EXHAUSTSEAL, EXHAUST
-
218061-508 RIVETRIVET
-
221612-407 DEFLECTOR, EXHAUSTDEFLECTOR, EXHAUST
-
238061-710 RIVETRIVET
-
248050-217 WASHERWASHER
-
258040-366 NUT, LOCKNUT, LOCK
-
268041-366 NUT, LOCKNUT, LOCK
-
278017-582 SCREW, MACHINESCREW, MACHINE
-
283606-050 PIN, RESONATOR MOUNTINGPIN, RESONATOR MOUNTING
-
291623-155 SNAPSNAP
-
300123-149 WASHERWASHER
