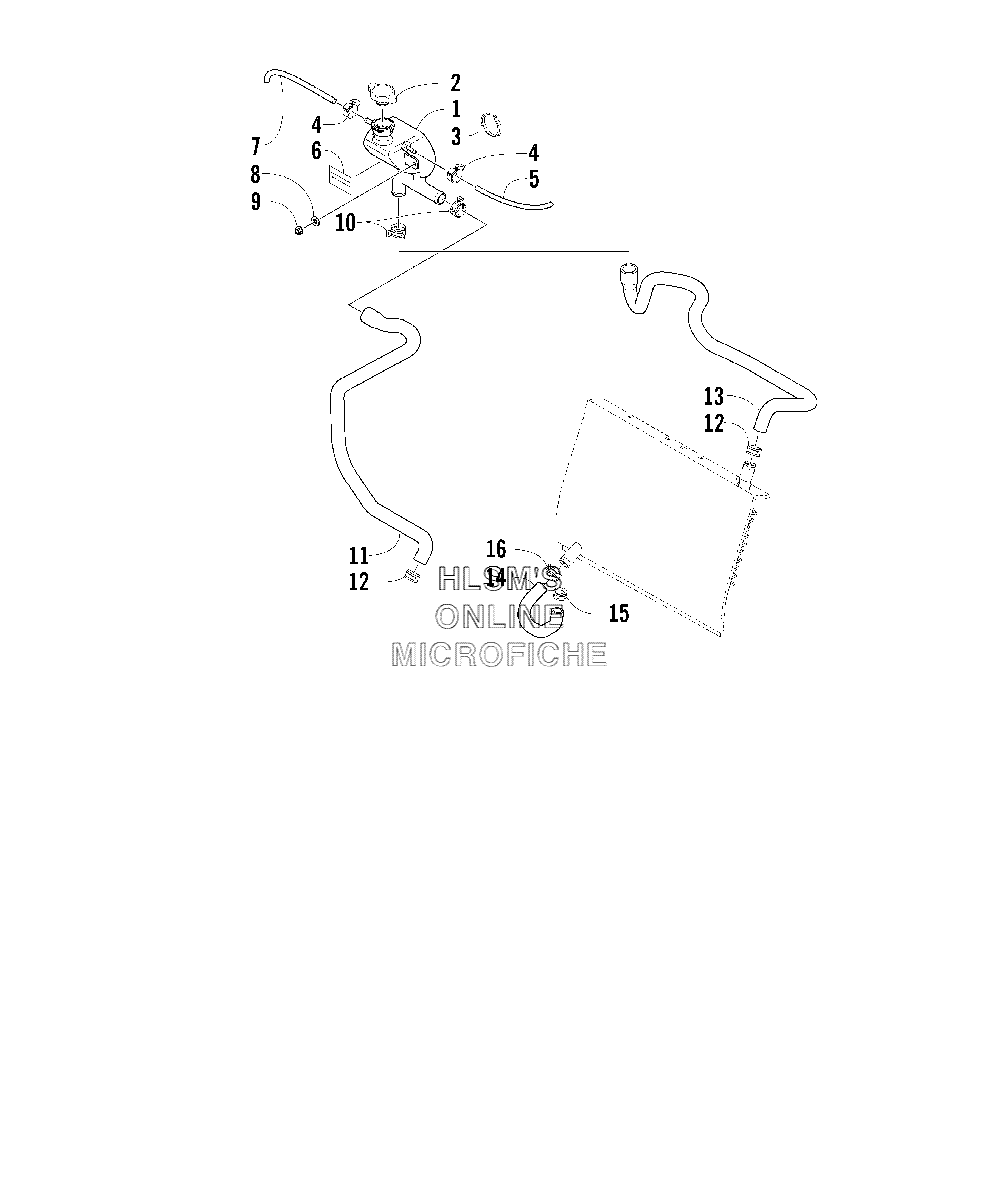

COOLING ASSEMBLY для Arctic Cat 440 SNO PRO L/C - 2003 года выпуска
-
№АртикулНазвание
-
12606-932 TANK, COOLANTTANK, COOLANT
-
20606-268 CAP, FILLER NECKCAP, FILLER NECK
-
30123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
40623-063 CLAMP, HOSECLAMP, HOSE
-
50610-538 HOSE, VENT (25 FT)HOSE, VENT (25 FT)
-
62611-758 DECAL, FILL LEVEL, COOLANT TANKDECAL, FILL LEVEL, COOLANT TANK
-
70610-015 HOSE, VENT (100 FT)HOSE, VENT (100 FT)
-
70610-016 HOSE, VENT (25 FT)HOSE, VENT (25 FT)
-
88050-222 WASHERWASHER
-
98041-366 NUT, LOCKNUT, LOCK
-
101623-092 CLAMP, HOSECLAMP, HOSE
-
110610-526 HOSE, COOLANT, COOLANT TANK/ENGINEHOSE, COOLANT, COOLANT TANK/ENGINE
-
121623-049 CLAMP, HOSECLAMP, HOSE
-
130610-531 HOSE, COOLANT, HEAT EXCHANGER/ COOLANT TANKHOSE, COOLANT, HEAT EXCHANGER/ COOLANT TANK
-
140610-527 HOSE, COOLANT, ENGINE/ HEAT EXCHANGERHOSE, COOLANT, ENGINE/ HEAT EXCHANGER
-
151623-048 CLAMP, HOSECLAMP, HOSE
-
160623-941 CLAMP, HOSECLAMP, HOSE
