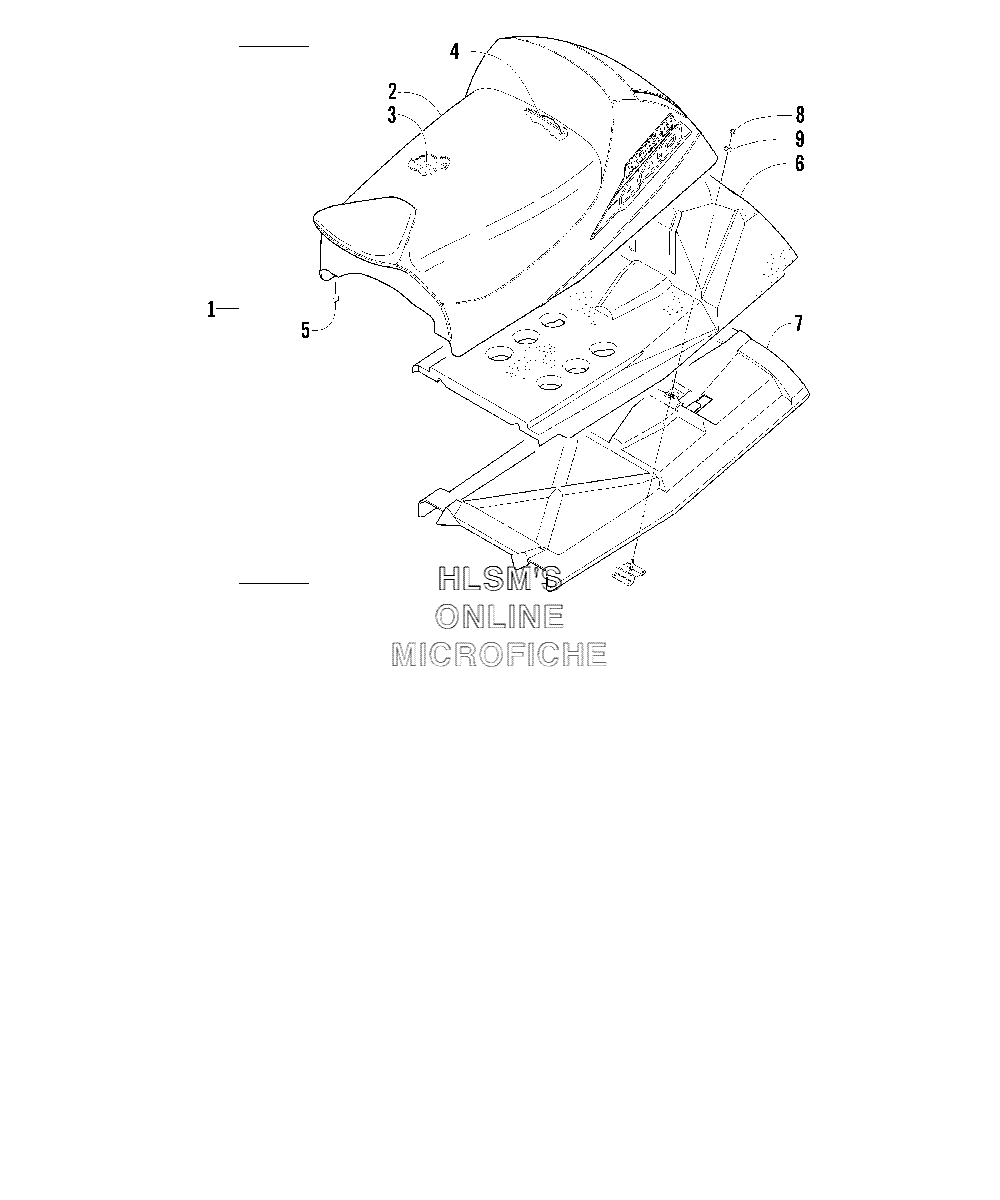

SEAT ASSEMBLY для Arctic Cat 440 SNO PRO L/C - 2003 года выпуска
-
№АртикулНазвание
-
-1718-454 COMPLETE SEAT ASSEMBLYCOMPLETE SEAT ASSEMBLY
-
11718-454 COMPLETE SEAT ASSEMBLY (INC. 2, 7)COMPLETE SEAT ASSEMBLY (INC. 2, 7)
-
22706-238 COVER, SEATCOVER, SEAT
-
30717-181 FOAM, SEAT (UPPER)FOAM, SEAT (UPPER)
-
41606-150 WIRE, SEATWIRE, SEAT
-
50624-528 STAPLESTAPLE
-
60617-438 FOAM, SEAT (LOWER)FOAM, SEAT (LOWER)
-
72606-907 BASE, SEATBASE, SEAT
-
88040-366 NUT, LOCKNUT, LOCK
-
90623-875 WASHER, CUPWASHER, CUP
