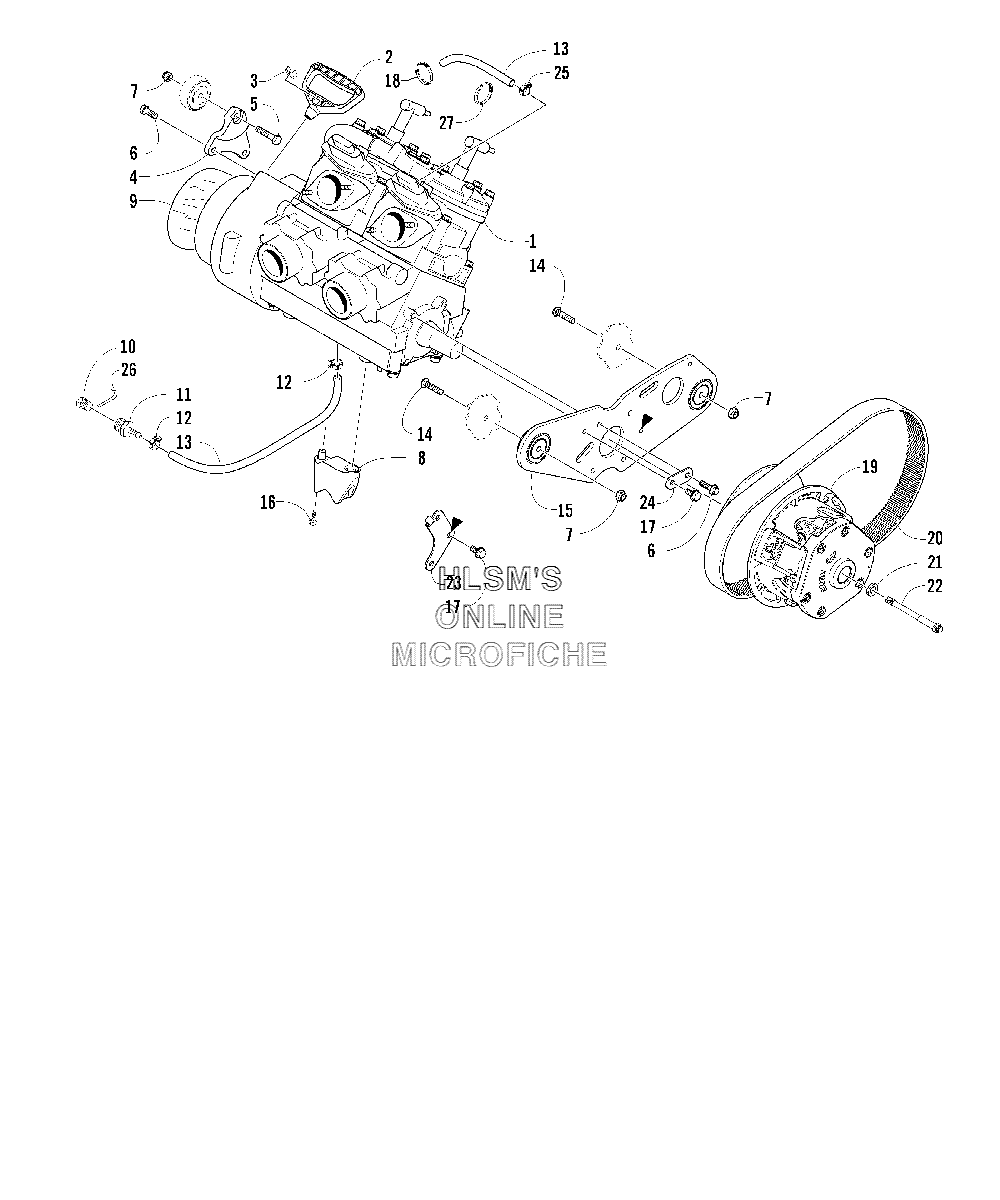

ENGINE AND RELATED PARTS для Arctic Cat 440 SNO PRO L/C - 2003 года выпуска
-
№АртикулНазвание
-
10662-340 ENGINE, AW44L2ENGINE, AW44L2
-
20636-363 HANDLE, RECOILHANDLE, RECOIL
-
30606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
40608-402 BRACKET, ENGINE MOUNTING (RIGHT)BRACKET, ENGINE MOUNTING (RIGHT)
-
58002-136 SCREW, CAPSCREW, CAP
-
68408-820 SCREW, CAPSCREW, CAP
-
78041-426 NUT, LOCKNUT, LOCK
-
80608-401 BUMPER, TORQUEBUMPER, TORQUE
-
91670-328 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
100670-243 PLUGPLUG
-
110623-801 ADAPTER, FITTINGADAPTER, FITTING
-
120124-045 CLAMP, HOSECLAMP, HOSE
-
130610-007 HOSE, GASLINE (25 FT)HOSE, GASLINE (25 FT)
-
141623-020 BOLT, CARRIAGE, RIBBED (PRESS, FIT)BOLT, CARRIAGE, RIBBED (PRESS, FIT)
-
150708-423 BRACKET, ENGINE MOUNTING W/MOUNTS (LEFT)BRACKET, ENGINE MOUNTING W/MOUNTS (LEFT)
-
161623-031 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
170623-765 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
180123-788 CABLE TIE, 7.5 IN.CABLE TIE, 7.5 IN.
-
190725-379 CLUTCH, DRIVECLUTCH, DRIVE
-
200627-010 BELT, DRIVEBELT, DRIVE
-
210623-210 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
220623-804 BOLT, CLUTCHBOLT, CLUTCH
-
230608-397 PLATE, REINFORCEMENTPLATE, REINFORCEMENT
-
240608-407 PLATE, REINFORCEMENTPLATE, REINFORCEMENT
-
250123-045 CLAMP, HOSECLAMP, HOSE
-
260670-289 TAPE, TEFLONTAPE, TEFLON
-
270123-811 CABLE TIE, 4 IN.CABLE TIE, 4 IN.
