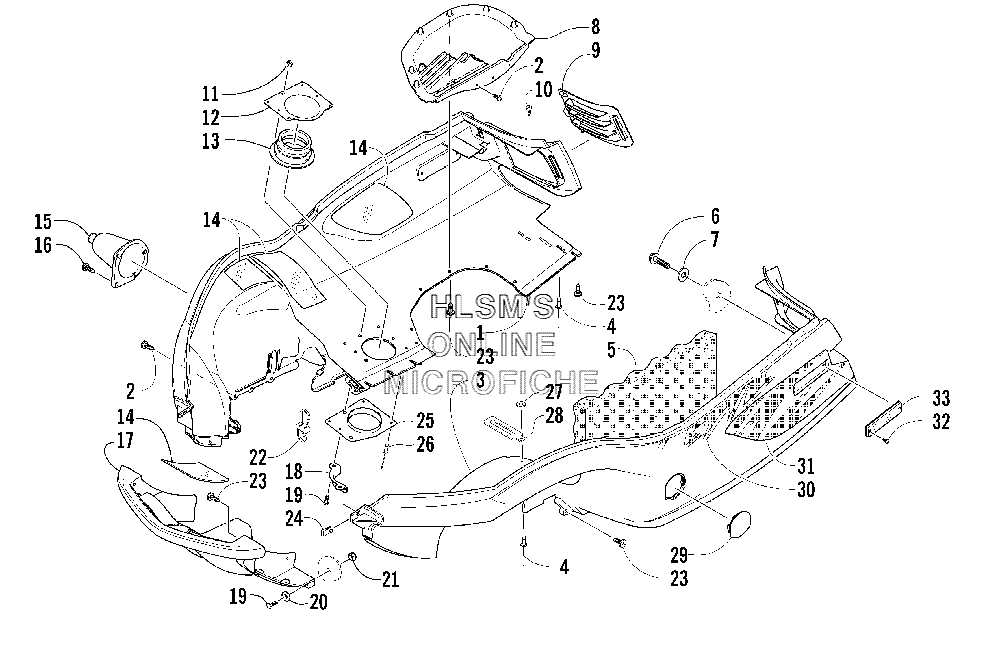

BELLY PAN AND FRONT BUMPER ASSEMBLY для Arctic Cat MOUNTAIN CAT 600 EFI (BLACK-RED 144) - 2003 года выпуска
-
№АртикулНазвание
-
11706-390 BELLY PAN (RIGHT) (SILVER)BELLY PAN (RIGHT) (SILVER)
-
20623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
31706-389 BELLY PAN (LEFT) (SILVER)BELLY PAN (LEFT) (SILVER)
-
48061-508 RIVETRIVET
-
50617-315 FOAM, BELLY PAN (LEFT)FOAM, BELLY PAN (LEFT)
-
60623-647 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
70623-184 WASHERWASHER
-
82606-856 GUARD, DROPCASEGUARD, DROPCASE
-
92606-734 LOUVER, AIR, INTAKE (RIGHT) (SILVER)LOUVER, AIR, INTAKE (RIGHT) (SILVER)
-
92606-735 LOUVER, AIR, INTAKE (LEFT) (SILVER)LOUVER, AIR, INTAKE (LEFT) (SILVER)
-
100623-378 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
118040-366 NUT, LOCKNUT, LOCK
-
120712-891 RING, EXHAUST OUTLET (UPPER)RING, EXHAUST OUTLET (UPPER)
-
130612-747 BOOT, EXHAUSTBOOT, EXHAUST
-
140619-206 TAPE, FOILTAPE, FOIL
-
150605-332 BOOT, STEERING (RIGHT)BOOT, STEERING (RIGHT)
-
150605-333 BOOT, STEERING (LEFT)BOOT, STEERING (LEFT)
-
160623-564 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
172606-737 BUMPER (FRONT) (PEWTER)BUMPER (FRONT) (PEWTER)
-
180712-879 DEFLECTOR, EXHAUSTDEFLECTOR, EXHAUST
-
198002-040 SCREW, CAPSCREW, CAP
-
208050-222 WASHERWASHER
-
218041-366 NUT, LOCKNUT, LOCK
-
220623-285 CABLE TIE, DOUBLE LOOPCABLE TIE, DOUBLE LOOP
-
230623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
240623-427 NUT, UNUT, U
-
250712-950 RING, EXHAUST OUTLET (LOWER)RING, EXHAUST OUTLET (LOWER)
-
268060-508 RIVETRIVET
-
270123-149 WASHERWASHER
-
283002-964 CLAMP, WIRECLAMP, WIRE
-
292606-747 PANEL, CLUTCH ACCESS (SILVER)PANEL, CLUTCH ACCESS (SILVER)
-
304611-542 DECAL, BELLY PAN (UPPER/RIGHT) (BLACK/RED)DECAL, BELLY PAN (UPPER/RIGHT) (BLACK/RED)
-
304611-543 DECAL, BELLY PAN (UPPER/LEFT) (BLACK/RED)DECAL, BELLY PAN (UPPER/LEFT) (BLACK/RED)
-
314611-540 DECAL, BELLY PAN (LOWER/RIGHT)DECAL, BELLY PAN (LOWER/RIGHT)
-
314611-541 DECAL, BELLY PAN (LOWER/LEFT)DECAL, BELLY PAN (LOWER/LEFT)
-
320623-269 CLIP, RETAININGCLIP, RETAINING
-
330606-526 REFLECTOR (FRONT) (AMBER)REFLECTOR (FRONT) (AMBER)
