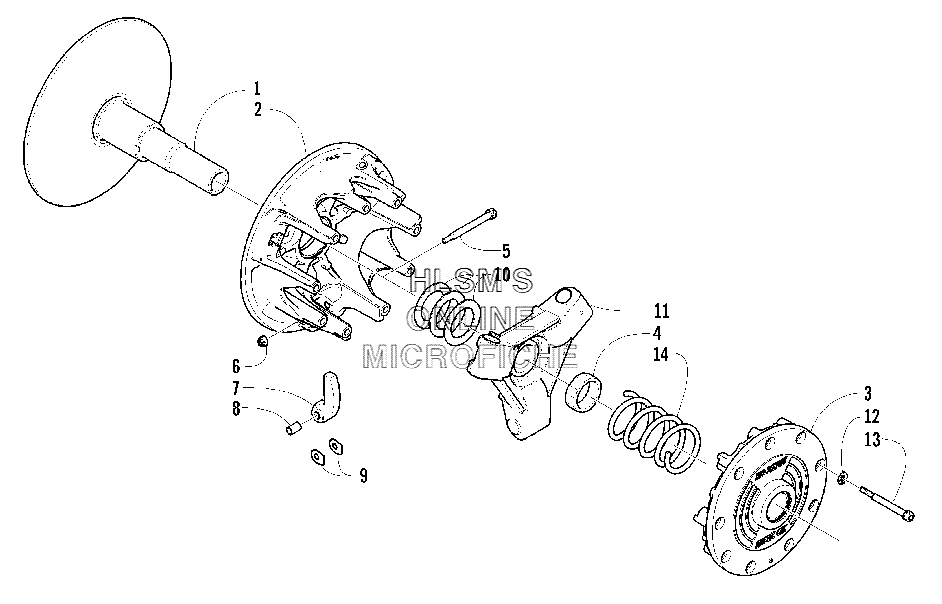

DRIVE CLUTCH для Arctic Cat MOUNTAIN CAT 600 EFI (BLACK-RED 144) - 2003 года выпуска

№

Артикул

Название
-

0725-366 CLUTCH, DRIVE (YELLOW/WHITE) (50.0)

CLUTCH, DRIVE (YELLOW/WHITE) (50.0)

127 080 ₽
-

0725-323 CLUTCH, DRIVE (YELLOW/GREEN) (INTERNATIONAL)

CLUTCH, DRIVE (YELLOW/GREEN) (INTERNATIONAL)

127 080 ₽
-

1639-030 CAM ARM KIT (INC. 5, 6, 8, AND 9)

CAM ARM KIT (INC. 5, 6, 8, AND 9)

12 060 ₽
-

0746-103 UNCALIBRATED DRIVE CLUTCH (INC. 5, 6, 8, AND 9)

UNCALIBRATED DRIVE CLUTCH (INC. 5, 6, 8, AND 9)

127 080 ₽
1

0646-325 SHEAVE, STATIONARY

SHEAVE, STATIONARY

33 690 ₽
2

0746-074 SHEAVE, MOVABLE

SHEAVE, MOVABLE

34 940 ₽
3

0746-086 COVER

COVER

17 880 ₽
4

0646-140 NUT

NUT

2 700 ₽
5

0646-295 PIN, CAM ARM

PIN, CAM ARM

2 280 ₽
6

0623-392 NUT, LOCK

NUT, LOCK

230 ₽
7

0746-587 ARM, CAM (INC. 8) (STD AND 6, 9, 000 FT ALT. INTERNATIONAL)

ARM, CAM (INC. 8) (STD AND 6, 9, 000 FT ALT. INTERNATIONAL)

3 530 ₽
7

0746-539 ARM, CAM (INC. 8) (INTERNATIONAL AND 0, 3, 000 FT ALT. STD)

ARM, CAM (INC. 8) (INTERNATIONAL AND 0, 3, 000 FT ALT. STD)

2 490 ₽
7

0746-592 ARM, CAM (INC. 8) (3, 6, 000 FT ALT.)

ARM, CAM (INC. 8) (3, 6, 000 FT ALT.)

3 530 ₽
7

0746-523 ARM, CAM (INC. 8) (OVER 9, 000 FT ALT.)

ARM, CAM (INC. 8) (OVER 9, 000 FT ALT.)

2 490 ₽
8

0646-160 BEARING, CAM ARM

BEARING, CAM ARM

2 280 ₽
9

0646-101 WASHER, CAM ARM

WASHER, CAM ARM

150 ₽
10

0646-265 WASHER, SPACER

WASHER, SPACER

480 ₽
11

0746-118 SPIDER ASSY

SPIDER ASSY

42 220 ₽
12

8051-212 WASHER, LOCK

WASHER, LOCK

20 ₽
13

0623-596 SCREW, MACHINE

SCREW, MACHINE

650 ₽
14

0646-229 SPRING, DRIVE CLUTCH (YELLOW/WHITE) (STD AND OVER 3, 000 FT ALT. INTERNATIONAL)

SPRING, DRIVE CLUTCH (YELLOW/WHITE) (STD AND OVER 3, 000 FT ALT. INTERNATIONAL)

8 110 ₽
14

0646-147 SPRING, DRIVE CLUTCH (YELLOW/GREEN) (INTERNATIONAL AND 0, 3, 000 FT ALT. STD)

SPRING, DRIVE CLUTCH (YELLOW/GREEN) (INTERNATIONAL AND 0, 3, 000 FT ALT. STD)

8 110 ₽
