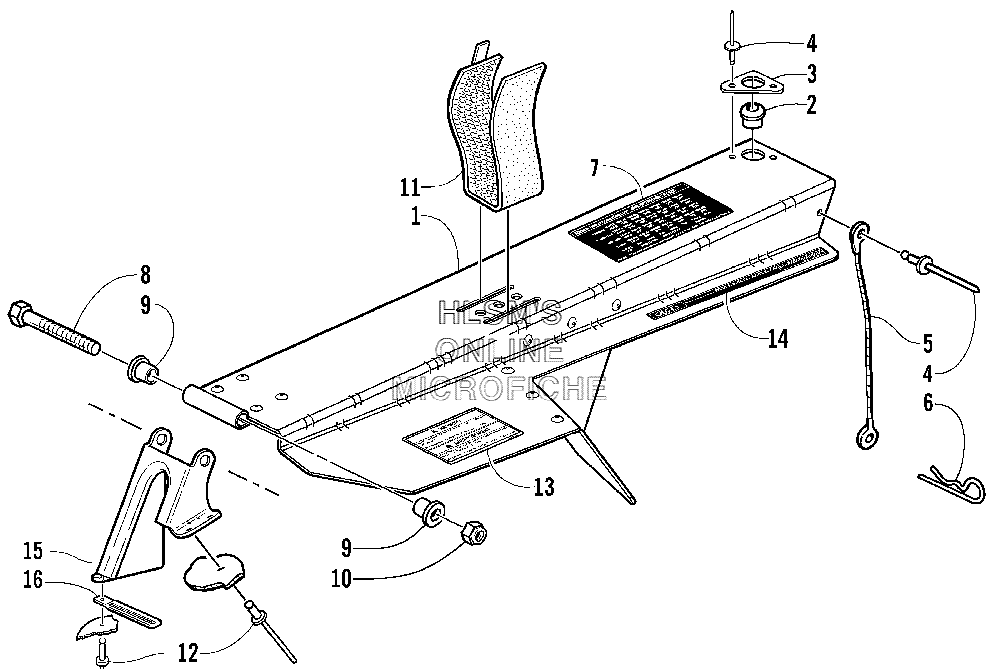

BELT GUARD ASSEMBLY для Arctic Cat MOUNTAIN CAT 600 EFI (BLACK-RED 144) - 2003 года выпуска
-
№АртикулНазвание
-
10707-722 BELT GUARD (INC. 2, 3 AND TWO NO. 4)BELT GUARD (INC. 2, 3 AND TWO NO. 4)
-
20607-549 BUSHING, BELT GUARDBUSHING, BELT GUARD
-
30607-550 PLATE, BUSHING, BELT GUARDPLATE, BUSHING, BELT GUARD
-
48060-504 RIVETRIVET
-
50607-447 CABLECABLE
-
60605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
74611-550 DECAL, CLUTCHINGDECAL, CLUTCHING
-
88002-050 SCREW, CAPSCREW, CAP
-
90607-094 INSERT, HINGEINSERT, HINGE
-
108040-366 NUT, LOCKNUT, LOCK
-
110707-582 RETAINER, DRIVE BELT, VELCRORETAINER, DRIVE BELT, VELCRO
-
128061-508 RIVETRIVET
-
131611-565 DECAL, WARNING, BELT GUARDDECAL, WARNING, BELT GUARD
-
143611-969 DECAL, "ACT, ROLLER DRIVEN CLUTCH"DECAL, "ACT, ROLLER DRIVEN CLUTCH"
-
150707-707 BRACKET, BELT GUARDBRACKET, BELT GUARD
-
163002-964 CLAMP, WIRECLAMP, WIRE
