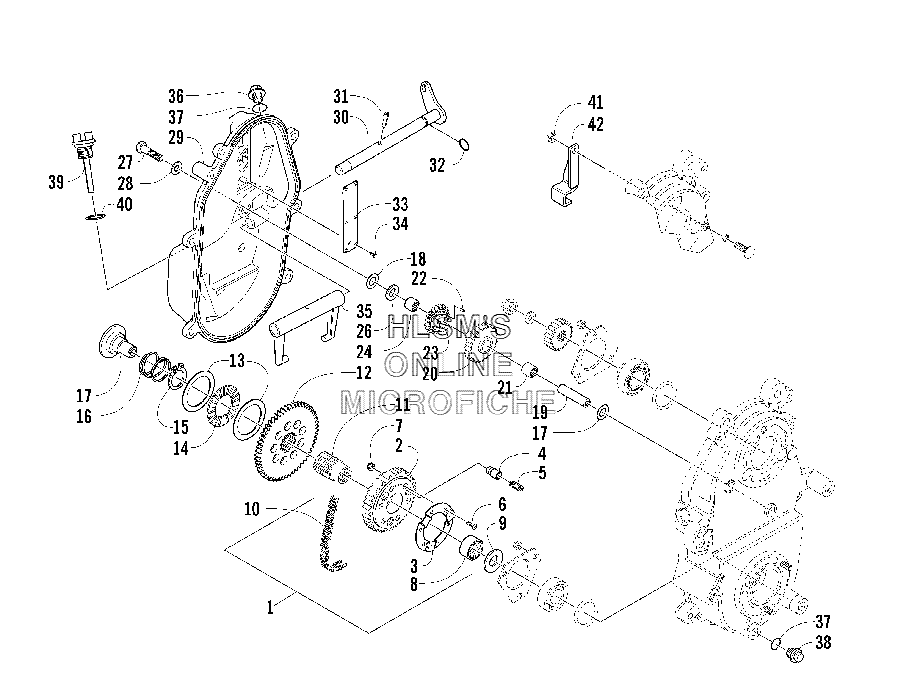

DRIVE/REVERSE DROPCASE ASSEMBLY (OPTIONAL) для Arctic Cat MOUNTAIN CAT 600 EFI (BLACK-RED 144) - 2003 года выпуска
-
№АртикулНазвание
-
-3639-050 REVERSE KIT 19/39 13W-STRAIGH LOW ALT.REVERSE KIT 19/39 13W-STRAIGH LOW ALT.
-
-3639-049 REVERSE KIT 18:44/13WREVERSE KIT 18:44/13W
-
10702-170 SPROCKET ASSY (39 TEETH) (INC. 2, 8)SPROCKET ASSY (39 TEETH) (INC. 2, 8)
-
10702-400 SPROCKET ASSY (44 TEETH) (INC. 2, 8) (OVER 3, 000 FT ALT.)SPROCKET ASSY (44 TEETH) (INC. 2, 8) (OVER 3, 000 FT ALT.)
-
30602-144 RETAINER, SPRINGRETAINER, SPRING
-
40602-133 PIN, SLIPPIN, SLIP
-
50602-138 SPRING, COMPRESSIONSPRING, COMPRESSION
-
60623-182 SCREW, CAPSCREW, CAP
-
70123-430 NUT, LOCKNUT, LOCK
-
80602-016 BEARINGBEARING
-
90602-012 SPACER, SHAFTSPACER, SHAFT
-
101602-041 CHAIN, 70PCHAIN, 70P
-
101602-042 CHAIN, 72P (OVER 3, 000 FT ALT.)CHAIN, 72P (OVER 3, 000 FT ALT.)
-
111602-048 EXTENSION, DRIVESHAFTEXTENSION, DRIVESHAFT
-
120702-048 GEAR, REVERSE (55 TEETH) (INC. 13, 15)GEAR, REVERSE (55 TEETH) (INC. 13, 15)
-
130602-023 WASHER, THRUSTWASHER, THRUST
-
140602-022 BEARING, THRUSTBEARING, THRUST
-
150602-024 RING, RETAININGRING, RETAINING
-
160602-028 SPRING, RETURNSPRING, RETURN
-
170638-881 RETAINER, SHAFT EXTENSIONRETAINER, SHAFT EXTENSION
-
180602-215 SPACER, REVERSE IDLERSPACER, REVERSE IDLER
-
190602-094 SHAFT, REVERSESHAFT, REVERSE
-
200702-260 SPROCKET, IDLER (24 TEETH) (INC. 21)SPROCKET, IDLER (24 TEETH) (INC. 21)
-
200702-449 SPROCKET, IDLER (20 TEETH) (INC. 21) (OVER 3, 000 FT ALT.)SPROCKET, IDLER (20 TEETH) (INC. 21) (OVER 3, 000 FT ALT.)
-
210602-018 BEARINGBEARING
-
220602-366 ALIGNER, IDLER, PINALIGNER, IDLER, PIN
-
230702-366 IDLER, REVERSE ASSY (19 TEETH) (INC. 24)IDLER, REVERSE ASSY (19 TEETH) (INC. 24)
-
241602-045 BEARINGBEARING
-
250602-444 SPROCKET (19 TEETH)SPROCKET (19 TEETH)
-
251602-378 SPROCKET (18 TEETH) (OVER 3, 000 FT ALT.)SPROCKET (18 TEETH) (OVER 3, 000 FT ALT.)
-
261602-044 WASHER, THRUSTWASHER, THRUST
-
278002-130 SCREW, CAPSCREW, CAP
-
288050-242 WASHERWASHER
-
291602-409 COVER, DROPCASECOVER, DROPCASE
-
300702-492 SHAFT, SHIFT FORKSHAFT, SHIFT FORK
-
310623-542 PIN, SPRINGPIN, SPRING
-
320602-021 SEAL, O-RINGSEAL, O-RING
-
331602-151 COVER, OIL VENTCOVER, OIL VENT
-
340623-081 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
350602-085 FORK, SHIFTFORK, SHIFT
-
360623-293 PLUG, DRAIN (ONE INCLUDED IN KIT)PLUG, DRAIN (ONE INCLUDED IN KIT)
-
371602-213 O-RINGO-RING
-
380602-479 PLUG, DRAIN, MAGNETICPLUG, DRAIN, MAGNETIC
-
390602-483 STICK, OIL LEVELSTICK, OIL LEVEL
-
400670-183 O, O-RINGIL LEVEL STICKO, O-RINGIL LEVEL STICK
-
410623-122 NUT, LOCKNUT, LOCK
-
420602-466 BRACKET, CHAIN BACKINGBRACKET, CHAIN BACKING
