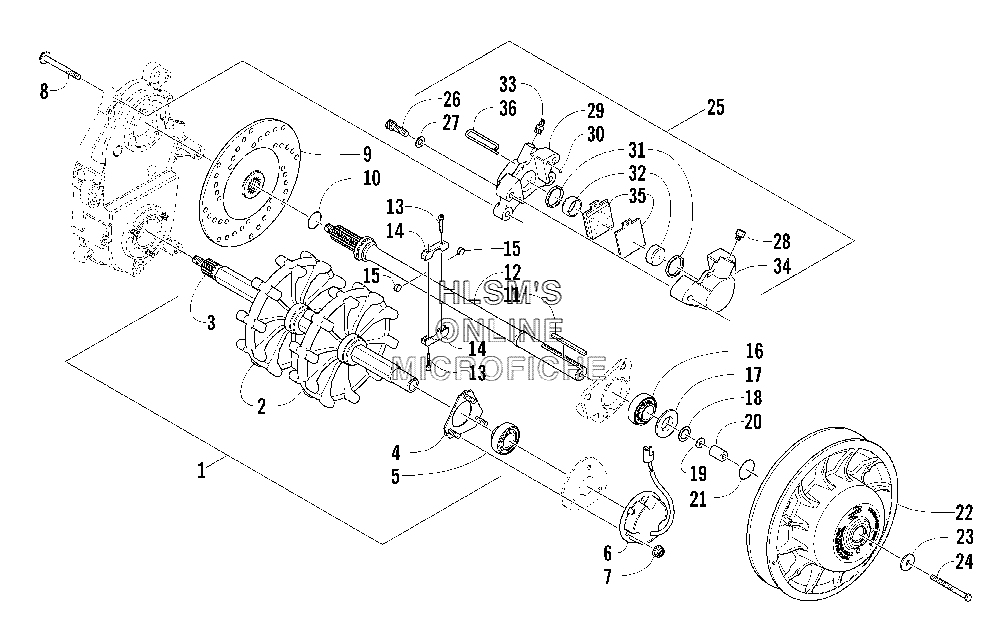

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES для Arctic Cat Arctic Cat 440 Sno Pro - 2004 года выпуска
-
№АртикулНазвание
-
10728-112 TRACK DRIVE ASSEMBLY (INC. 2, 5)TRACK DRIVE ASSEMBLY (INC. 2, 5)
-
21602-574 SPROCKET, DRIVESPROCKET, DRIVE
-
31602-530 DRIVESHAFTDRIVESHAFT
-
40702-412 PLATE, FLANGEPLATE, FLANGE
-
51602-601 BEARING, 1 IN. W/O LOCK COLLARBEARING, 1 IN. W/O LOCK COLLAR
-
60630-180 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
78047-426 NUT, LOCKNUT, LOCK
-
88020-315 SCREW, CAPSCREW, CAP
-
91602-401 DISC, BRAKEDISC, BRAKE
-
101602-199 O-RINGO-RING
-
111602-575 KEYKEY
-
120702-558 SHAFT, DRIVEN (INC. 13, 17)SHAFT, DRIVEN (INC. 13, 17)
-
138005-402 SCREW, CAPSCREW, CAP
-
143606-581 BRACKET, SPEED SENSORBRACKET, SPEED SENSOR
-
150630-167 MAGNET, DISCMAGNET, DISC
-
161602-233 BEARING, 1 IN. W/O LOCK COLLARBEARING, 1 IN. W/O LOCK COLLAR
-
171602-367 SPACERSPACER
-
180623-118 WASHERWASHER
-
180623-119 WASHERWASHER
-
190123-053 WASHERWASHER
-
200648-709 SHAFT, STUBSHAFT, STUB
-
210616-032 O-RINGO-RING
-
220726-181 CLUTCH, DRIVENCLUTCH, DRIVEN
-
230123-019 WASHERWASHER
-
248002-138 SCREW, CAPSCREW, CAP
-
251602-639 CALIPER, BRAKE ASSEMBLY (INC. 26, 36)CALIPER, BRAKE ASSEMBLY (INC. 26, 36)
-
268005-679 SCREW, CAPSCREW, CAP
-
278050-272 WASHERWASHER
-
280602-590 FITTING, ADAPTERFITTING, ADAPTER
-
300602-729 O-RING, HOUSINGO-RING, HOUSING
-
310602-583 O-RINGO-RING
-
320602-708 PISTONPISTON
-
330602-707 SCREW, BLEED, ASSEMBLYSCREW, BLEED, ASSEMBLY
-
350702-229 PAD, BRAKE, SET (INC. 36)PAD, BRAKE, SET (INC. 36)
-
360602-706 PIN, RETAININGPIN, RETAINING
