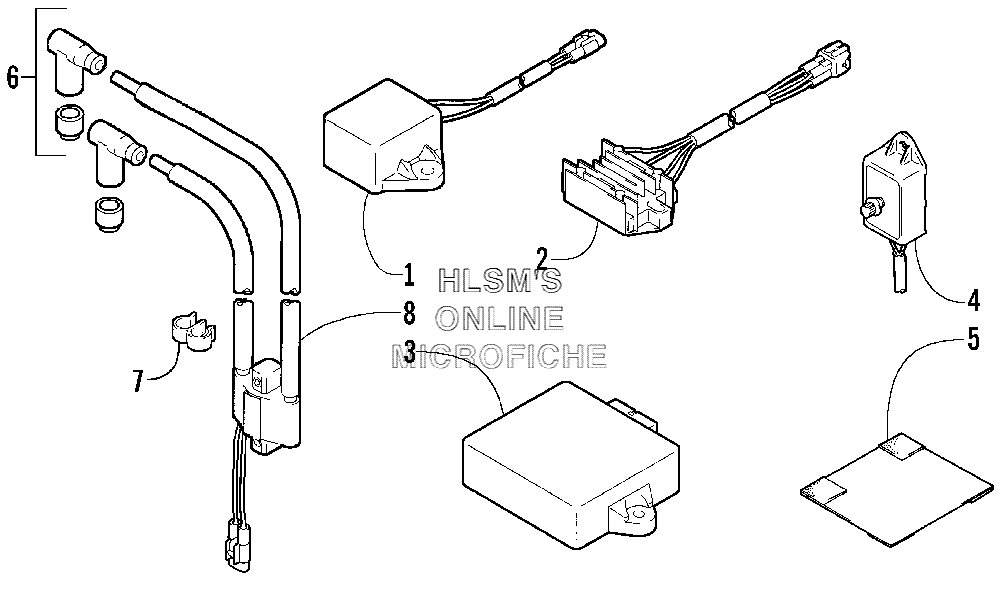

ELECTRICAL для Arctic Cat Arctic Cat 440 Sno Pro - 2004 года выпуска
-
№АртикулНазвание
-
13006-894 CONDENSER, EXHAUST VALVECONDENSER, EXHAUST VALVE
-
23006-895 REGULATOR, EXHAUST VALVEREGULATOR, EXHAUST VALVE
-
33006-742 CDI UNITCDI UNIT
-
43005-932 UNIT, TIMING CONTROLUNIT, TIMING CONTROL
-
53003-474 COVER, CONNECTORCOVER, CONNECTOR
-
63006-367 CAP, SPARK PLUG, ASSEMBLYCAP, SPARK PLUG, ASSEMBLY
-
73005-387 CLAMPCLAMP
-
83006-692 COIL, IGNITION, ASSEMBLYCOIL, IGNITION, ASSEMBLY
Все узлы модели:
- A-ARM ASSEMBLY
- AIR SILENCER ASSEMBLY
- BELLY PAN ASSEMBLY
- BELT GUARD ASSEMBLY
- CARBURETOR
- CONSOLE AND SWITCH ASSEMBLY
- CONTROL ASSEMBLY
- COOLING ASSEMBLY
- CRANKCASE ASSEMBLY
- CYLINDER AND HEAD ASSEMBLY
- DRIVE CLUTCH
- DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
- DRIVE/DROPCASE ASSEMBLY
- DRIVEN CLUTCH
- • ELECTRICAL
- ENGINE AND RELATED PARTS
- EXHAUST ASSEMBLY
- FOOTREST AND STEERING SUPPORT ASSEMBLY
- FRONT FRAME ASSEMBLY
- FRONT SUSPENSION SHOCK ABSORBER
- GAS TANK ASSEMBLY
- HANDLEBAR ASSEMBLY
- HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLIES
- HOOD AND WINDSHIELD ASSEMBLY
- HYDRAULIC BRAKE CONTROL ASSEMBLY
- IDLER WHEEL ASSEMBLY
- MAGNETO
- PISTON AND CRANKSHAFT ASSEMBLY
- REAR SUSPENSION FRONT ARM ASSEMBLY
- REAR SUSPENSION FRONT ARM SHOCK ABSORBER
- REAR SUSPENSION REAR ARM ASSEMBLY
- REAR SUSPENSION REAR ARM SHOCK ABSORBER
- REAR SUSPENSION SHOCK ABSORBER ASSEMBLY
- RECOIL STARTER
- REED VALVE ASSEMBLY
- RELATED ITEMS
- SEAT ASSEMBLY
- SERVOMOTOR ASSEMBLY
- SHOCK ABSORBER AND SWAY BAR ASSEMBLY
- SKI AND SPINDLE ASSEMBLY
- SLIDE RAIL AND TRACK ASSEMBLY
- STEERING POST ASSEMBLY
- TIE ROD ASSEMBLY
- TUNNEL- REAR BUMPER- AND TAILLIGHT ASSEMBLIES
- WATER PUMP/WATER MANIFOLD ASSEMBLY
