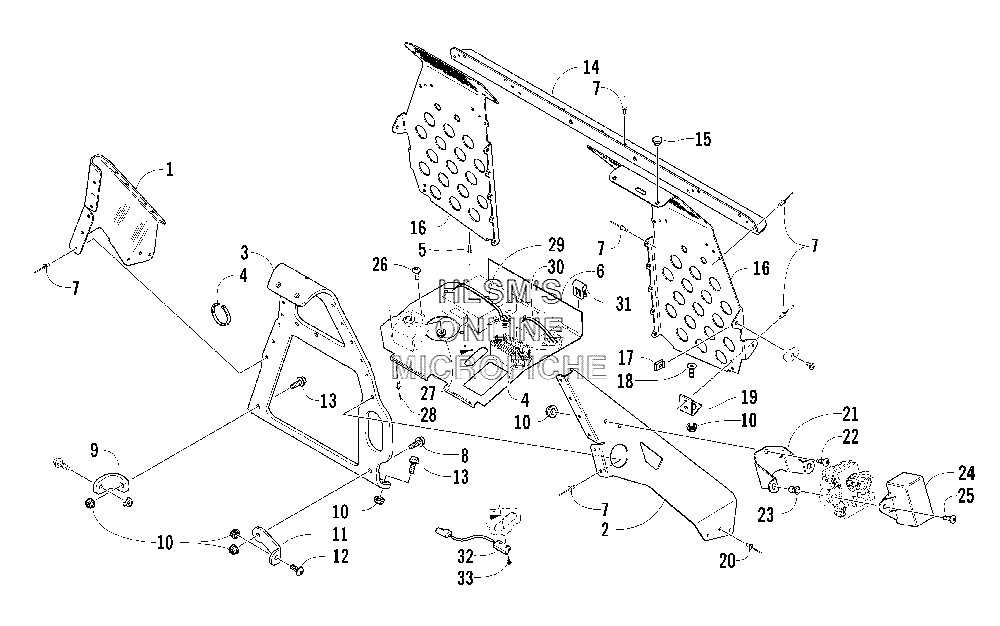

FOOTREST AND STEERING SUPPORT ASSEMBLY для Arctic Cat Arctic Cat 440 Sno Pro - 2004 года выпуска
-
№АртикулНазвание
-
10707-914 SUPPORT, STEERING (RIGHT)SUPPORT, STEERING (RIGHT)
-
20707-915 SUPPORT, STEERING (LEFT)SUPPORT, STEERING (LEFT)
-
30707-912 SUPPORT, STEERINGSUPPORT, STEERING
-
40123-788 CABLE TIE, 7.5 IN.CABLE TIE, 7.5 IN.
-
51623-241 RIVETRIVET
-
63606-491 PLATE, ELECTRICALPLATE, ELECTRICAL
-
71623-130 RIVETRIVET
-
88020-040 SCREW, CAPSCREW, CAP
-
93606-434 SUPPORT, SIDE PLATE (RIGHT)SUPPORT, SIDE PLATE (RIGHT)
-
108047-366 NUT, LOCKNUT, LOCK
-
110607-779 SUPPORT, SIDE PLATE (LEFT)SUPPORT, SIDE PLATE (LEFT)
-
128017-580 SCREW, MACHINESCREW, MACHINE
-
138020-041 SCREW, CAPSCREW, CAP
-
140707-919 SUPPORT, FOOTRESTSUPPORT, FOOTREST
-
153606-178 BUMPERBUMPER
-
162706-694 FOOTREST (RIGHT)FOOTREST (RIGHT)
-
162706-695 FOOTREST (LEFT)FOOTREST (LEFT)
-
171623-030 NUT, SPEEDNUT, SPEED
-
180623-962 SCREW, MACHINESCREW, MACHINE
-
192706-696 SUPPORT, FOOTRESTSUPPORT, FOOTREST
-
201623-206 RIVETRIVET
-
213606-094 PLATE, MOUNTING, SERVOMOTORPLATE, MOUNTING, SERVOMOTOR
-
228017-579 SCREW, MACHINESCREW, MACHINE
-
230623-582 INSERTINSERT
-
242606-129 COVER, SERVOMOTORCOVER, SERVOMOTOR
-
258017-584 SCREW, MACHINESCREW, MACHINE
-
268017-577 SCREW, MACHINESCREW, MACHINE
-
278041-366 NUT, LOCKNUT, LOCK
-
280623-282 RIVETRIVET
-
290623-144 CABLE TIE, 17.5 IN.CABLE TIE, 17.5 IN.
-
300123-903 CABLE TIE, 11.5 IN.CABLE TIE, 11.5 IN.
-
310423-459 CLIP, MOUNTINGCLIP, MOUNTING
-
320630-184 SENSOR, SPEEDSENSOR, SPEED
-
330623-462 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
