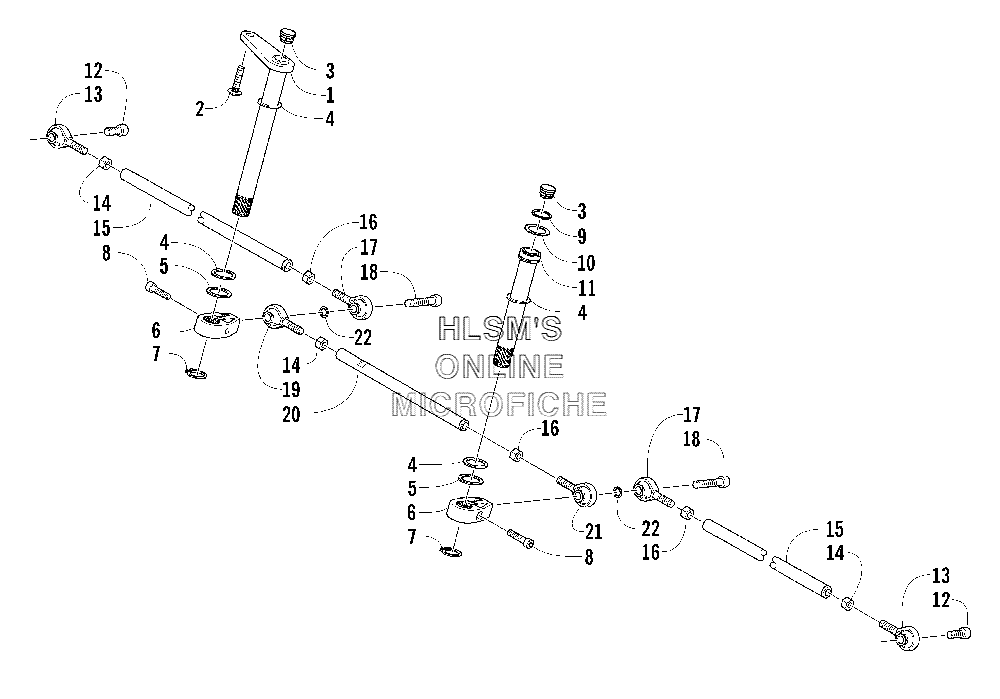

TIE ROD ASSEMBLY для Arctic Cat Arctic Cat 440 Sno Pro - 2004 года выпуска
-
№АртикулНазвание
-
10705-990 SHAFT, STEERING (INC. 2)SHAFT, STEERING (INC. 2)
-
21623-205 BOLT, CARRIAGE, RIBBEDBOLT, CARRIAGE, RIBBED
-
31606-079 PLUGPLUG
-
40623-954 WASHER, THRUSTWASHER, THRUST
-
50623-955 WASHER, THRUSTWASHER, THRUST
-
60605-635 ARM, SHAFTARM, SHAFT
-
70623-956 SNAP RINGSNAP RING
-
88005-584 SCREW, CAPSCREW, CAP
-
90623-796 RING, SNAPRING, SNAP
-
101603-203 WASHER, THRUSTWASHER, THRUST
-
111705-016 SHAFT, IDLERSHAFT, IDLER
-
128005-673 SCREW, CAPSCREW, CAP
-
130605-607 BALL JOINT, TIE ROD (LEFT)BALL JOINT, TIE ROD (LEFT)
-
140123-917 NUT, HEX (LEFT)NUT, HEX (LEFT)
-
150605-204 TUBE, TIE ROD, SPINDLETUBE, TIE ROD, SPINDLE
-
160623-294 NUT, HEX (RIGHT)NUT, HEX (RIGHT)
-
170605-608 BALL JOINT, TIE ROD (RIGHT)BALL JOINT, TIE ROD (RIGHT)
-
180623-957 SCREW, CAPSCREW, CAP
-
190605-605 BALL JOINT, TIE ROD (LEFT)BALL JOINT, TIE ROD (LEFT)
-
200605-312 TUBE, TIE RODTUBE, TIE ROD
-
210605-606 BALL JOINT, TIE ROD (RIGHT)BALL JOINT, TIE ROD (RIGHT)
-
220623-439 WASHERWASHER
