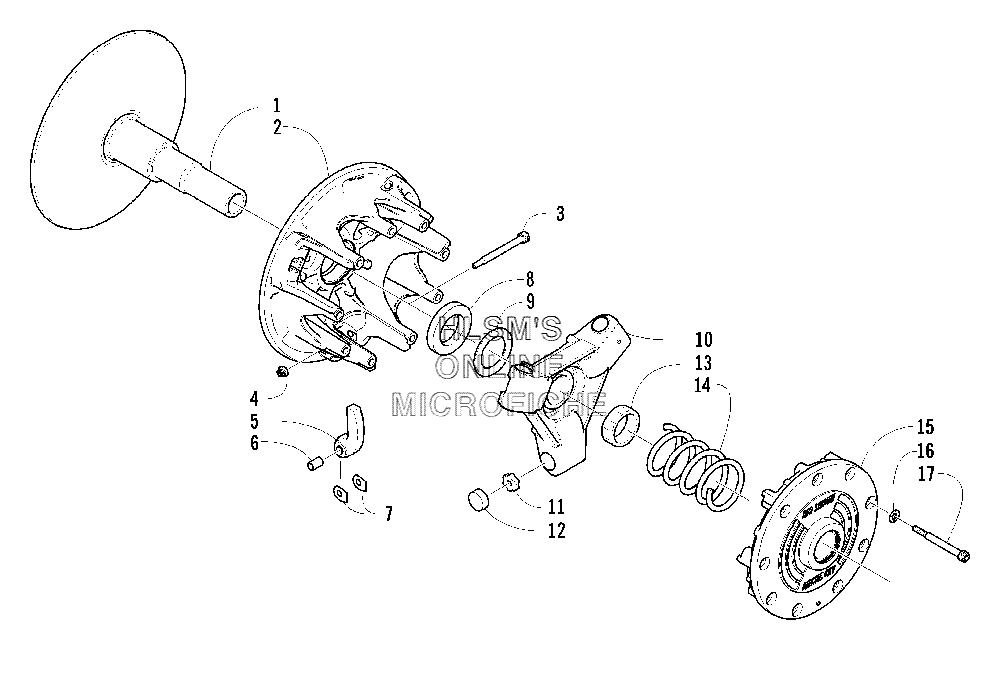

DRIVE CLUTCH для Arctic Cat Bearcat Wide Track - 2004 года выпуска
-
№АртикулНазвание
-
-0725-408 DRIVE CLUTCH ASSYDRIVE CLUTCH ASSY
-
-1639-030 CAM ARM KIT (INC. 3, 4 AND 6, 7)CAM ARM KIT (INC. 3, 4 AND 6, 7)
-
-0746-133 UNCALIBRATED DRIVE CLUTCHUNCALIBRATED DRIVE CLUTCH
-
10646-365 SHEAVE, STATIONARYSHEAVE, STATIONARY
-
20746-080 SHEAVE, MOVABLESHEAVE, MOVABLE
-
30646-295 PIN, CAM ARMPIN, CAM ARM
-
40623-392 NUT, LOCKNUT, LOCK
-
50746-636 ARM, CAM (INC. 6)ARM, CAM (INC. 6)
-
50746-645 ARM, CAM (INC. 6) (5, 000, 9, 000 FT ALT.)ARM, CAM (INC. 6) (5, 000, 9, 000 FT ALT.)
-
50746-647 ARM, CAM (INC. 6) (OVER 9, 000 FT ALT.)ARM, CAM (INC. 6) (OVER 9, 000 FT ALT.)
-
60646-160 BEARING, CAM ARMBEARING, CAM ARM
-
70646-101 WASHER, CAM ARMWASHER, CAM ARM
-
80646-196 SPACERSPACER
-
90646-266 WASHER, SPACERWASHER, SPACER
-
100746-686 SPIDER ASSYSPIDER ASSY
-
110646-297 BUTTON, TORQUEBUTTON, TORQUE
-
120646-298 PLUG, TORQUE BUTTONPLUG, TORQUE BUTTON
-
130646-140 NUTNUT
-
140646-376 SPRING, DRIVE CLUTCH (GOLD)SPRING, DRIVE CLUTCH (GOLD)
-
140646-367 SPRING, DRIVE CLUTCHSPRING, DRIVE CLUTCH
-
150746-086 COVERCOVER
-
168051-212 WASHER, LOCKWASHER, LOCK
-
170623-596 SCREW, MACHINESCREW, MACHINE
