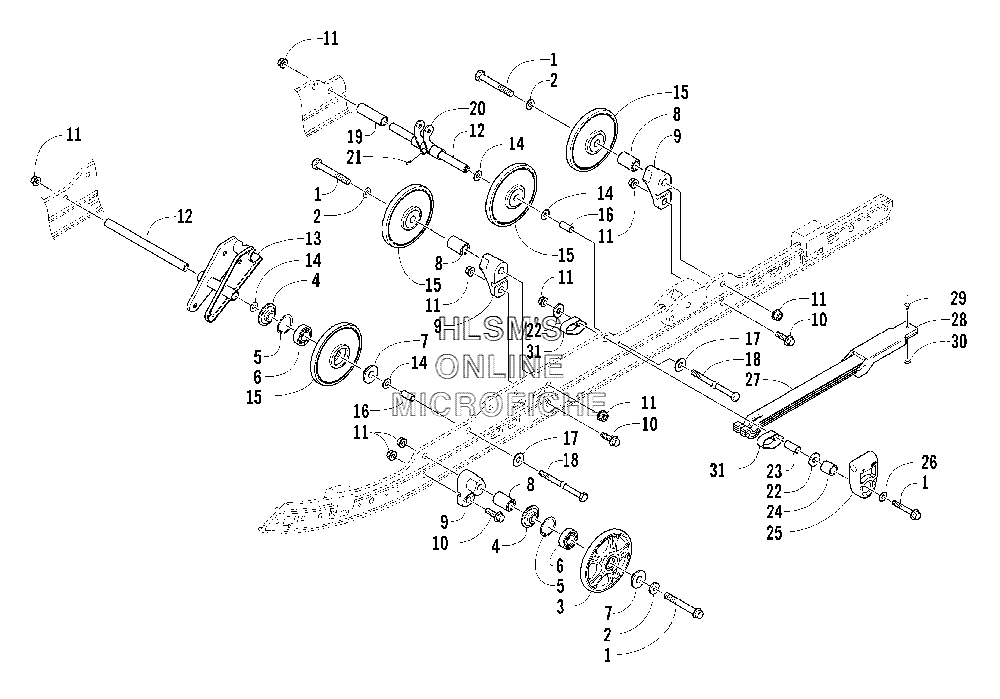

IDLER WHEEL ASSEMBLY для Arctic Cat Bearcat Wide Track - 2004 года выпуска
-
№АртикулНазвание
-
18020-232 SCREW, CAPSCREW, CAP
-
20123-570 WASHERWASHER
-
31604-693 WHEEL, IDLER (INC. 4, 7)WHEEL, IDLER (INC. 4, 7)
-
41604-772 INSERT, WHEEL (INSIDE)INSERT, WHEEL (INSIDE)
-
50123-798 RING, RETAININGRING, RETAINING
-
60107-598 BEARINGBEARING
-
71604-773 INSERT, WHEEL (OUTSIDE)INSERT, WHEEL (OUTSIDE)
-
80603-030 AXLE, SERRATEDAXLE, SERRATED
-
90704-966 BLOCK, MOUNTING, IDLER WHEELBLOCK, MOUNTING, IDLER WHEEL
-
108020-224 SCREW, CAPSCREW, CAP
-
118048-486 NUT, LOCKNUT, LOCK
-
121604-980 AXLE, STEELAXLE, STEEL
-
130704-396 BRACKET, MOUNTING, SHOCK (FRONT)BRACKET, MOUNTING, SHOCK (FRONT)
-
140623-675 WASHERWASHER
-
150114-240 WHEEL, IDLER (INC. 4, 7)WHEEL, IDLER (INC. 4, 7)
-
161604-979 SPACERSPACER
-
178050-277 WASHERWASHER
-
181623-064 SCREW, CAPSCREW, CAP
-
190603-105 SPACERSPACER
-
200704-589 PIVOT, SHOCK (INC. 21)PIVOT, SHOCK (INC. 21)
-
210623-922 FITTING, GREASEFITTING, GREASE
-
220623-746 WASHERWASHER
-
230604-739 BUSHING, OVERLOAD SPRINGBUSHING, OVERLOAD SPRING
-
241604-430 SPACER, SPRING SLIDESPACER, SPRING SLIDE
-
252604-516 SLIDE, SPRINGSLIDE, SPRING
-
268050-282 WASHERWASHER
-
271604-457 SPO-RINGVERLOAD ASSY (INC. 28, 31)SPO-RINGVERLOAD ASSY (INC. 28, 31)
-
281604-378 BLOCK, WEARBLOCK, WEAR
-
298060-411 RIVETRIVET
-
300123-149 WASHERWASHER
-
311604-412 CLIP, RETAININGCLIP, RETAINING
