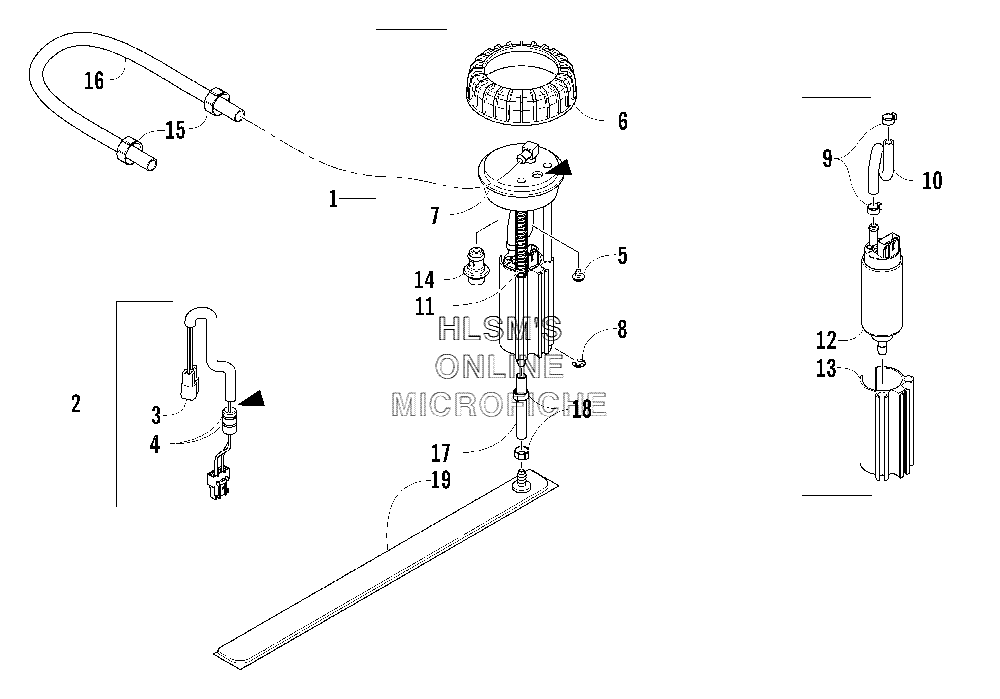

FUEL PUMP ASSEMBLY для Arctic Cat Bearcat Wide Track - 2004 года выпуска
-
№АртикулНазвание
-
11670-465 PUMP, FUEL, ASSY (INC. 2, 14)PUMP, FUEL, ASSY (INC. 2, 14)
-
21670-117 HARNESS, FUEL PUMP (INC. 3, 4)HARNESS, FUEL PUMP (INC. 3, 4)
-
30670-380 CONNECTOR, HARNESSCONNECTOR, HARNESS
-
40670-381 O-RINGO-RING
-
51670-412 SCREW, MACHINE, HARNESSSCREW, MACHINE, HARNESS
-
61670-119 NUT, RETAINING, FUEL PUMPNUT, RETAINING, FUEL PUMP
-
71670-118 SEAL, FUEL PUMP HOUSINGSEAL, FUEL PUMP HOUSING
-
81670-244 RING, RETAININGRING, RETAINING
-
91670-520 CLAMP, HOSECLAMP, HOSE
-
101670-521 HOSE, FUEL PUMP (TOP)HOSE, FUEL PUMP (TOP)
-
111670-411 SPRING, FUEL PUMP ASSYSPRING, FUEL PUMP ASSY
-
121670-531 PUMP, FUELPUMP, FUEL
-
131670-529 HOUSING, FUEL PUMPHOUSING, FUEL PUMP
-
141670-414 REGULATOR, FUEL PUMPREGULATOR, FUEL PUMP
-
150610-419 CLAMP, HOSECLAMP, HOSE
-
160610-075 HOSE, GASLINE (10 FT)HOSE, GASLINE (10 FT)
-
170610-540 HOSE, GASLINEHOSE, GASLINE
-
180610-415 CLAMP, HOSECLAMP, HOSE
-
191670-525 PICKUP, FUELPICKUP, FUEL
