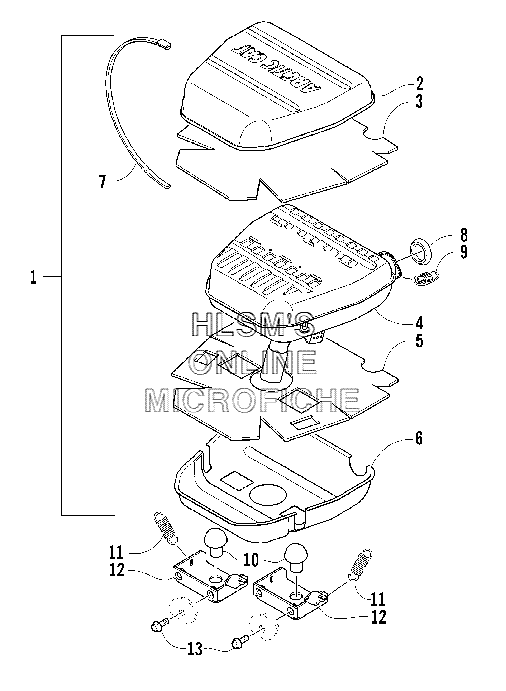

EXHAUST ASSEMBLY для Arctic Cat Bearcat Wide Track - 2004 года выпуска
-
№АртикулНазвание
-
11712-075 MUFFLER ASSY (INC. 2, 7)MUFFLER ASSY (INC. 2, 7)
-
21612-630 WRAP (UPPER)WRAP (UPPER)
-
31612-628 PACKING (UPPER)PACKING (UPPER)
-
41712-074 MUFFLERMUFFLER
-
51612-778 PACKING (LOWER)PACKING (LOWER)
-
61612-780 WRAP (LOWER)WRAP (LOWER)
-
71612-634 TIE, BAND, 42 IN.TIE, BAND, 42 IN.
-
80612-693 GASKET, EXHAUSTGASKET, EXHAUST
-
91612-800 SPRING, EXTENSIONSPRING, EXTENSION
-
100612-111 BUMPER, RUBBERBUMPER, RUBBER
-
110123-321 SPRING, EXTENSIONSPRING, EXTENSION
-
121712-069 BRACKET, MOUNTING, MUFFLERBRACKET, MOUNTING, MUFFLER
-
138020-037 SCREW, CAPSCREW, CAP
