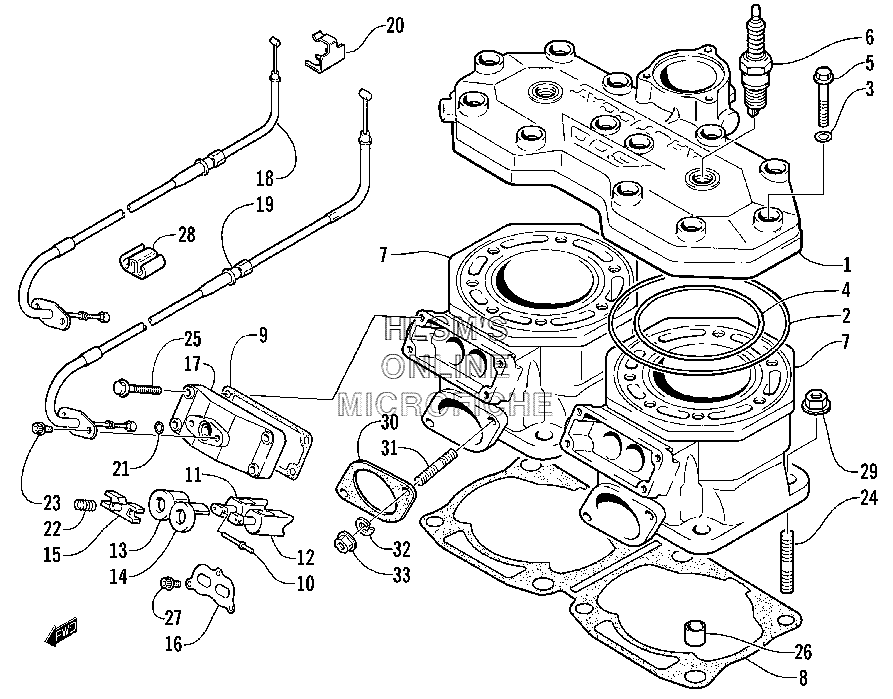

CYLINDER AND HEAD ASSY. для Arctic Cat Mountain Cat 600 EFI (Red) - 2004 года выпуска
-
№АртикулНазвание
-
13005-809 HEAD, CYLINDERHEAD, CYLINDER
-
23003-765 O-RING, HEAD, OUTERO-RING, HEAD, OUTER
-
33003-227 O-RING, HEAD BOLTO-RING, HEAD BOLT
-
43004-080 O-RING, HEAD, INNERO-RING, HEAD, INNER
-
53004-459 SCREW, CAPSCREW, CAP
-
60217-709 PLUG, SPARK (BR9EYA)PLUG, SPARK (BR9EYA)
-
73005-653 CYLINDERCYLINDER
-
83005-654 GASKET, CYLINDERGASKET, CYLINDER
-
93005-283 GASKET, CYLINDER COVERGASKET, CYLINDER COVER
-
103005-284 PIN, EXHAUST VALVEPIN, EXHAUST VALVE
-
113005-656 VALVE, EXHAUST (RIGHT)VALVE, EXHAUST (RIGHT)
-
123005-657 VALVE, EXHAUST (LEFT)VALVE, EXHAUST (LEFT)
-
133005-658 GUIDE, EXHAUST VALVE (RIGHT)GUIDE, EXHAUST VALVE (RIGHT)
-
143005-659 GUIDE, EXHAUST VALVE (LEFT)GUIDE, EXHAUST VALVE (LEFT)
-
153005-655 STOPPER, EXHAUST VALVESTOPPER, EXHAUST VALVE
-
163005-660 PLATE, EXHAUST VALVEPLATE, EXHAUST VALVE
-
173005-662 COVER, CYLINDERCOVER, CYLINDER
-
183006-556 CABLE, EXHAUST VALVE (MAGNETO)CABLE, EXHAUST VALVE (MAGNETO)
-
193006-557 CABLE, EXHAUST VALVE (PTO)CABLE, EXHAUST VALVE (PTO)
-
203005-747 HOLDER, EXHAUST VALVE CABLEHOLDER, EXHAUST VALVE CABLE
-
213005-226 O-RINGO-RING
-
223005-652 SPRINGSPRING
-
233005-744 BOLTBOLT
-
243005-596 BOLT, STUDBOLT, STUD
-
253004-426 BOLTBOLT
-
263004-975 PIN, DOWELPIN, DOWEL
-
273006-444 BOLTBOLT
-
283005-808 CLAMPCLAMP
-
293004-491 NUTNUT
-
303003-503 GASKET, EXHAUSTGASKET, EXHAUST
-
313004-301 BOLT, STUDBOLT, STUD
-
323004-280 WASHER, LOCKWASHER, LOCK
-
333004-334 NUTNUT
