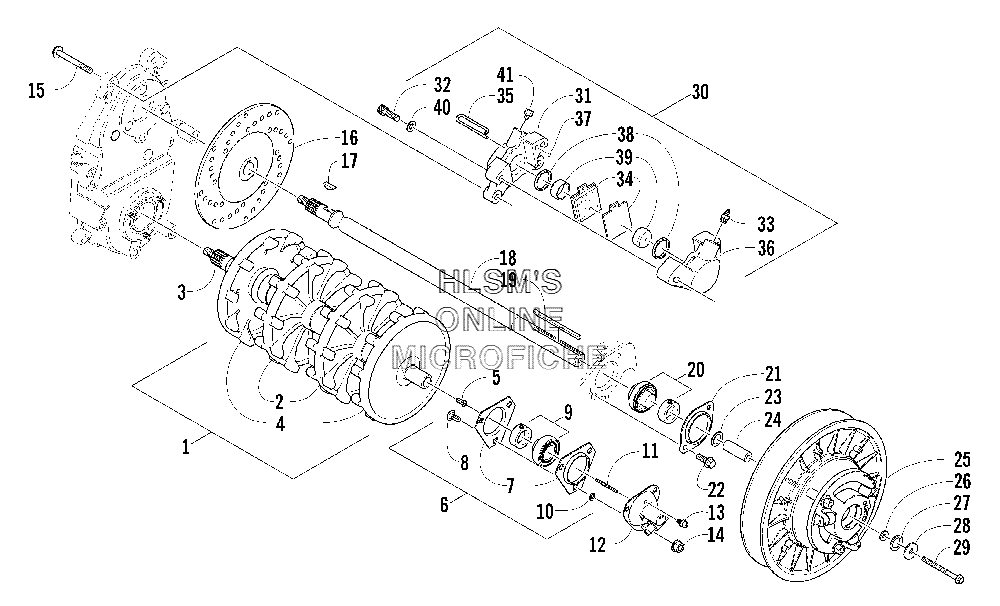

TRACK DRIVE для Arctic Cat Mountain Cat 600 EFI (Red) - 2004 года выпуска
-
№АртикулНазвание
-
10728-083 TRACK DRIVE ASSY. (INC. 2, 5)TRACK DRIVE ASSY. (INC. 2, 5)
-
21602-201 SPROCKET, DRIVESPROCKET, DRIVE
-
30602-958 DRIVESHAFTDRIVESHAFT
-
41602-292 IDLER, DRIVE, OUTERIDLER, DRIVE, OUTER
-
50120-247 BUSHING, DRIVEBUSHING, DRIVE
-
60702-476 PLATE, FLANGE, BEARING ASSY. (INC. 7, 10)PLATE, FLANGE, BEARING ASSY. (INC. 7, 10)
-
70602-198 PLATE, FLANGEPLATE, FLANGE
-
88011-130 BOLT, CARRIAGEBOLT, CARRIAGE
-
91602-375 BEARING, 1 IN. W/LOCK COLLARBEARING, 1 IN. W/LOCK COLLAR
-
100623-810 RING, SOLDERRING, SOLDER
-
110602-154 CABLE, ADAPTERCABLE, ADAPTER
-
120720-013 ADAPTER, DRIVE (INC. 13)ADAPTER, DRIVE (INC. 13)
-
130104-062 FITTING, GREASEFITTING, GREASE
-
148048-426 NUT, LOCKNUT, LOCK
-
158020-315 SCREW, CAPSCREW, CAP
-
161602-205 DISC, BRAKEDISC, BRAKE
-
170602-598 KEYKEY
-
180702-266 SHAFT, DRIVENSHAFT, DRIVEN
-
190101-076 KEYKEY
-
201602-099 BEARING, 1 IN. W/LOCK COLLAR, RE, LUBRICATIVEBEARING, 1 IN. W/LOCK COLLAR, RE, LUBRICATIVE
-
210602-892 PLATE, FLANGE, BEARINGPLATE, FLANGE, BEARING
-
228020-130 SCREW, CAPSCREW, CAP
-
230623-118 WASHERWASHER
-
230623-119 WASHERWASHER
-
240648-066 SHAFT, STUBSHAFT, STUB
-
250726-152 CLUTCH, DRIVENCLUTCH, DRIVEN
-
260123-053 WASHERWASHER
-
270123-694 WASHERWASHER
-
280123-019 WASHERWASHER
-
298020-142 SCREW, CAPSCREW, CAP
-
300602-829 CALIPER, BRAKE ASSY. (INC. 31, 41)CALIPER, BRAKE ASSY. (INC. 31, 41)
-
328005-679 SCREW, CAPSCREW, CAP
-
330602-707 SCREW, BLEED, ASSY.SCREW, BLEED, ASSY.
-
340702-229 PAD, BRAKE, SET (INC. 35)PAD, BRAKE, SET (INC. 35)
-
350602-706 PIN, RETAININGPIN, RETAINING
-
370602-729 O-RING, HOUSINGO-RING, HOUSING
-
380602-583 O-RINGO-RING
-
390602-708 PISTONPISTON
-
408050-272 WASHERWASHER
-
410602-590 FITTING, ADAPTERFITTING, ADAPTER
