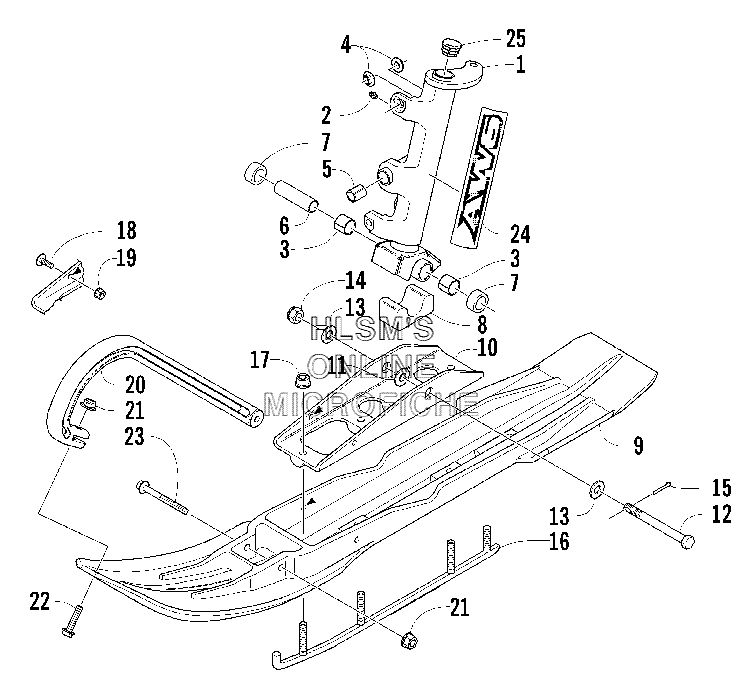

SKI AND SPINDLE ASSY. для Arctic Cat Mountain Cat 600 EFI (Red) - 2004 года выпуска
-
№АртикулНазвание
-
11703-328 SPINDLE, STEERING (RIGHT) (INC. 2, 5)SPINDLE, STEERING (RIGHT) (INC. 2, 5)
-
11703-329 SPINDLE, STEERING (LEFT) (INC. 2, 5)SPINDLE, STEERING (LEFT) (INC. 2, 5)
-
21623-010 FITTING, GREASEFITTING, GREASE
-
30603-158 BEARINGBEARING
-
40603-647 INSERT, SPINDLEINSERT, SPINDLE
-
50603-083 BEARINGBEARING
-
60603-034 AXLE, SPINDLEAXLE, SPINDLE
-
71603-908 SPACER, SKI, STANCESPACER, SKI, STANCE
-
81603-960 DAMPER, SKIDAMPER, SKI
-
90703-840 SKI, PLASTICSKI, PLASTIC
-
101703-079 SADDLE, SKI (INC. 11)SADDLE, SKI (INC. 11)
-
110603-621 INSERT, SKI SADDLEINSERT, SKI SADDLE
-
120623-552 SCREW, CAPSCREW, CAP
-
130623-728 WASHERWASHER
-
140123-296 NUT, LOCKNUT, LOCK
-
150123-458 PIN, COTTERPIN, COTTER
-
161703-219 WEARBARWEARBAR
-
178048-486 NUT, LOCKNUT, LOCK
-
188017-581 SCREW, MACHINESCREW, MACHINE
-
198048-366 NUT, LOCKNUT, LOCK
-
200603-624 HANDLE, PLASTIC (BLACK)HANDLE, PLASTIC (BLACK)
-
218048-426 NUT, LOCKNUT, LOCK
-
228020-135 SCREW, CAPSCREW, CAP
-
238020-143 SCREW, CAPSCREW, CAP
-
245611-472 DECAL, "AWS", SPINDLEDECAL, "AWS", SPINDLE
-
250623-831 CAP, SPINDLECAP, SPINDLE
