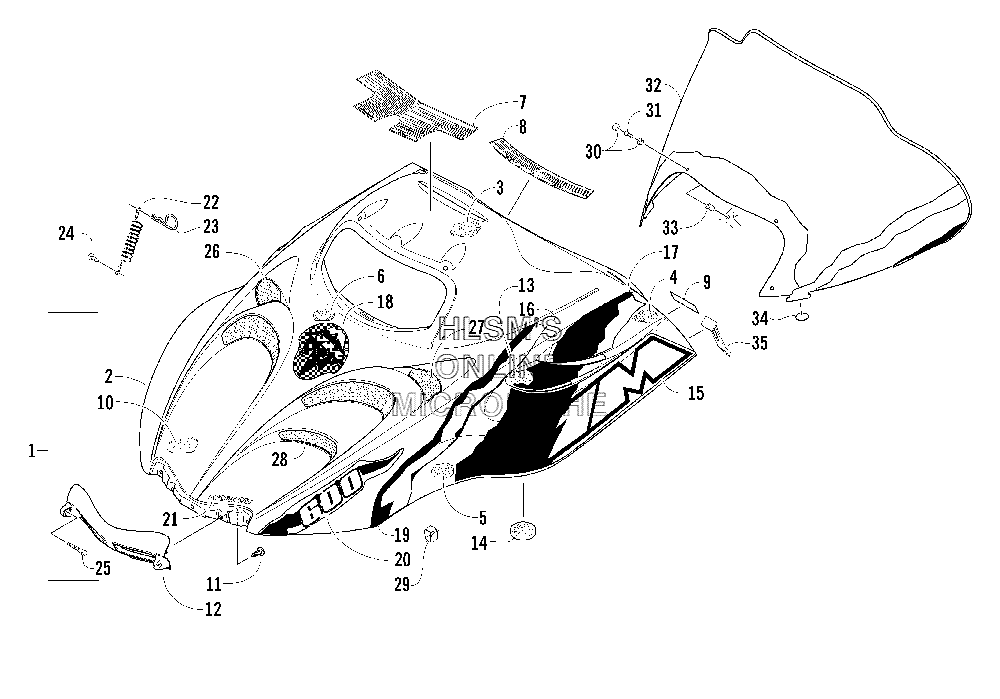

HOOD AND WINDSHIELD ASSY. для Arctic Cat Mountain Cat 600 EFI (Red) - 2004 года выпуска
-
№АртикулНазвание
-
11718-432 HOOD W/DECALS (INC. 2, 21)HOOD W/DECALS (INC. 2, 21)
-
21718-431 HOOD W/O DECALS (INC. 3, 14)HOOD W/O DECALS (INC. 3, 14)
-
30717-148 FOAM, HOOD (UPPER/MIDDLE/RIGHT)FOAM, HOOD (UPPER/MIDDLE/RIGHT)
-
30717-149 FOAM, HOOD (UPPER/MIDDLE/LEFT)FOAM, HOOD (UPPER/MIDDLE/LEFT)
-
40717-140 FOAM, HOOD (REAR/RIGHT)FOAM, HOOD (REAR/RIGHT)
-
40717-141 FOAM, HOOD (REAR/LEFT)FOAM, HOOD (REAR/LEFT)
-
50717-146 FOAM, HOOD (FRONT/RIGHT)FOAM, HOOD (FRONT/RIGHT)
-
50617-147 FOAM, HOOD (FRONT/LEFT)FOAM, HOOD (FRONT/LEFT)
-
60717-138 FOAM, HOOD (MIDDLE)FOAM, HOOD (MIDDLE)
-
73611-485 DECAL, WARNING, GENERAL AND BRAKEDECAL, WARNING, GENERAL AND BRAKE
-
83611-970 DECAL, CAUTION, ENGINE/BATTERY/FUELDECAL, CAUTION, ENGINE/BATTERY/FUEL
-
93611-509 DECAL, WARNING, SEATING CAPACITYDECAL, WARNING, SEATING CAPACITY
-
101606-938 FOIL, HOOD (RIGHT)FOIL, HOOD (RIGHT)
-
101606-939 FOIL, HOOD (LEFT)FOIL, HOOD (LEFT)
-
110623-797 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
123606-032 HINGE, HOODHINGE, HOOD
-
130617-426 FOAM, HOOD, VENTFOAM, HOOD, VENT
-
140623-078 DISC, VELCRODISC, VELCRO
-
155611-414 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
155611-415 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
165611-442 DECAL, HOOD, VENT (LOWER/RIGHT)DECAL, HOOD, VENT (LOWER/RIGHT)
-
165611-443 DECAL, HOOD, VENT (LOWER/LEFT)DECAL, HOOD, VENT (LOWER/LEFT)
-
175611-444 DECAL, HOOD, VENT (UPPER/RIGHT)DECAL, HOOD, VENT (UPPER/RIGHT)
-
175611-445 DECAL, HOOD, VENT (UPPER/LEFT)DECAL, HOOD, VENT (UPPER/LEFT)
-
185611-434 DECAL, HOOD, CRESTDECAL, HOOD, CREST
-
195611-440 DECAL, HOOD (FRONT/RIGHT)DECAL, HOOD (FRONT/RIGHT)
-
195611-441 DECAL, HOOD (FRONT/LEFT)DECAL, HOOD (FRONT/LEFT)
-
205611-438 DECAL, HOOD, "600" (RIGHT)DECAL, HOOD, "600" (RIGHT)
-
205611-439 DECAL, HOOD, "600" (LEFT)DECAL, HOOD, "600" (LEFT)
-
215611-411 DECAL, "ARCTIC CAT", HOODDECAL, "ARCTIC CAT", HOOD
-
222606-247 CABLE, HOODCABLE, HOOD
-
230623-805 CLIP, HAIRPINCLIP, HAIRPIN
-
240623-057 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
251623-016 SCREW, MACHINESCREW, MACHINE
-
262706-194 SCREEN, HOOD (RIGHT)SCREEN, HOOD (RIGHT)
-
272706-195 SCREEN, HOOD (UPPER/LEFT)SCREEN, HOOD (UPPER/LEFT)
-
282606-325 SCREEN, HOOD (LEFT)SCREEN, HOOD (LEFT)
-
290123-394 CLIP, RETAININGCLIP, RETAINING
-
300124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
310623-902 SCREW, MACHINESCREW, MACHINE
-
323606-095 WINDSHIELDWINDSHIELD
-
330623-845 NUT, EXPANSIONNUT, EXPANSION
-
340616-032 O-RINGO-RING
-
351606-067 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
