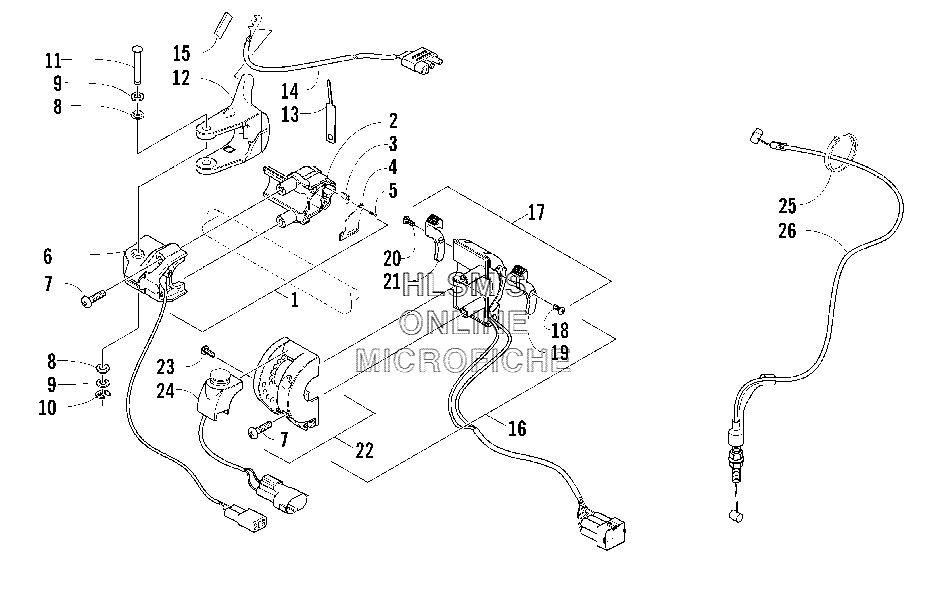

CONTROL ASSEMBLY для Arctic Cat F6 Firecat EFI (BLACK) - 2005 года выпуска
-
№АртикулНазвание
-
10609-632 CONTROL, THROTTLE, ASSEMBLY (INC. 2, 6 AND TWO NO. 7)CONTROL, THROTTLE, ASSEMBLY (INC. 2, 6 AND TWO NO. 7)
-
20609-576 CONTROL, HOUSING HALF (INC. 3, 5)CONTROL, HOUSING HALF (INC. 3, 5)
-
30609-611 CLIP, RETAININGCLIP, RETAINING
-
40609-615 PLATEPLATE
-
50609-612 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
60609-633 CONTROL, SWITCH HALFCONTROL, SWITCH HALF
-
70609-604 SCREW, MACHINESCREW, MACHINE
-
80609-501 SEAL, THROTTLE LEVERSEAL, THROTTLE LEVER
-
90609-036 WASHERWASHER
-
100609-040 E, RINGE, RING
-
110609-577 AXLE, LEVER, THROTTLEAXLE, LEVER, THROTTLE
-
120609-654 LEVER, THROTTLELEVER, THROTTLE
-
131639-963 TOOL REMOVAL, KIT, THROTTLE CABLETOOL REMOVAL, KIT, THROTTLE CABLE
-
140609-623 ELEMENT, THUMBWARMERELEMENT, THUMBWARMER
-
150617-248 PAD, INSULATORPAD, INSULATOR
-
160609-628 CONTROL, STOP SWITCH/WARMER, ASSEMBLY (INC. TWO NO. 7 AND 17, 24)CONTROL, STOP SWITCH/WARMER, ASSEMBLY (INC. TWO NO. 7 AND 17, 24)
-
170609-636 CONTROL, WARMER HALF (INC. 18, 21)CONTROL, WARMER HALF (INC. 18, 21)
-
180609-605 SCREW, MACHINESCREW, MACHINE
-
190609-573 KNOB, HANDWARMERKNOB, HANDWARMER
-
200609-606 SCREW, MACHINESCREW, MACHINE
-
210609-572 KNOB, THUMBWARMERKNOB, THUMBWARMER
-
220609-635 CONTROL, STOP SWITCH HALF (INC. 23, 24)CONTROL, STOP SWITCH HALF (INC. 23, 24)
-
230609-607 SCREW, MACHINESCREW, MACHINE
-
250123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
260687-155 CABLE, THROTTLECABLE, THROTTLE
