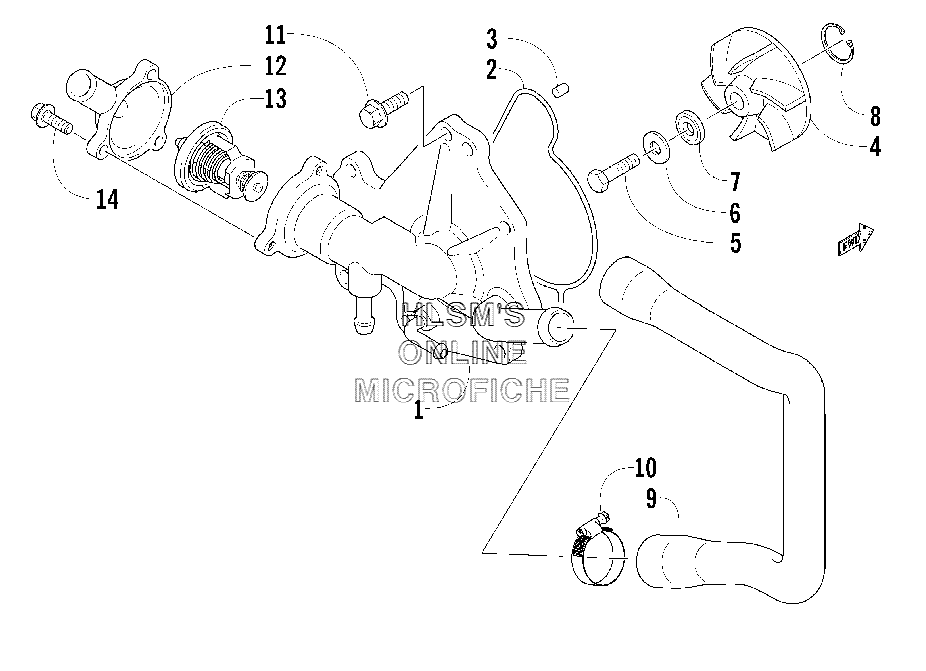

WATER PUMP AND THERMOSTAT для Arctic Cat F6 Firecat EFI (BLACK) - 2005 года выпуска
-
№АртикулНазвание
-
13006-942 COVER, WATER PUMPCOVER, WATER PUMP
-
23006-356 O-RING, WATER PUMP COVERO-RING, WATER PUMP COVER
-
33005-899 PIN, DOWELPIN, DOWEL
-
43005-697 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
53003-426 BOLTBOLT
-
63003-431 WASHERWASHER
-
73003-432 GASKETGASKET
-
83004-009 CIRCLIPCIRCLIP
-
93006-521 HOSE, WATER INLETHOSE, WATER INLET
-
103006-324 CLAMPCLAMP
-
113004-341 BOLTBOLT
-
123006-914 CAP, THERMOSTATCAP, THERMOSTAT
-
133006-913 THERMOSTATTHERMOSTAT
-
143004-512 BOLTBOLT
