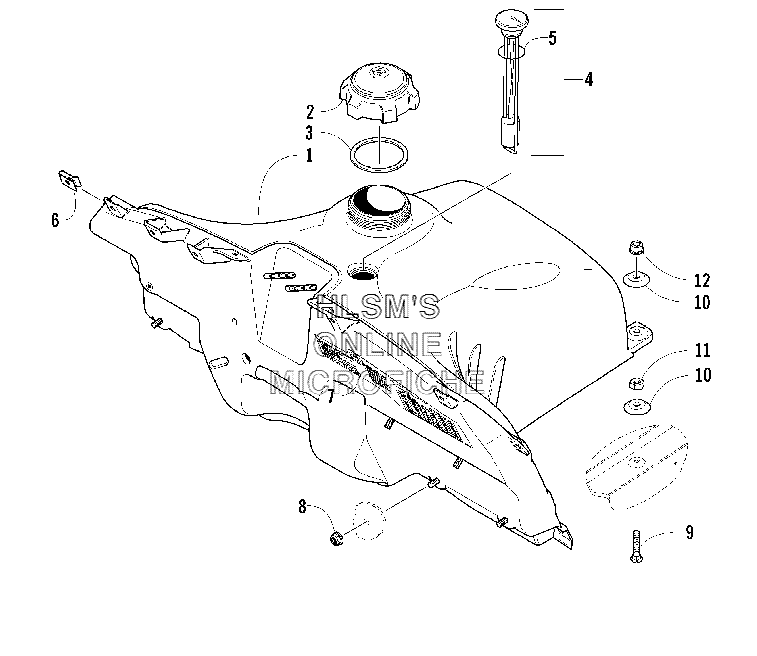

GAS TANK ASSEMBLY для Arctic Cat F6 Firecat EFI (BLACK) - 2005 года выпуска
-
№АртикулНазвание
-
10770-628 TANK, GAS (INC. 2, 5)TANK, GAS (INC. 2, 5)
-
21670-447 CAP, GAS TANK (INC. 3)CAP, GAS TANK (INC. 3)
-
31670-511 SEAL, GAS TANK CAPSEAL, GAS TANK CAP
-
41670-523 GAUGE, GAS W/SEAL (INC. 5)GAUGE, GAS W/SEAL (INC. 5)
-
50470-400 SEAL, GAS GAUGESEAL, GAS GAUGE
-
60623-427 U, NUTU, NUT
-
76611-523 DECAL, CLUTCHING CHARTDECAL, CLUTCHING CHART
-
88047-366 NUT, LOCKNUT, LOCK
-
98011-041 BOLT, CARRIAGEBOLT, CARRIAGE
-
100123-765 WASHER, CUPWASHER, CUP
-
118041-366 NUT, LOCKNUT, LOCK
-
128048-366 NUT, LOCKNUT, LOCK
