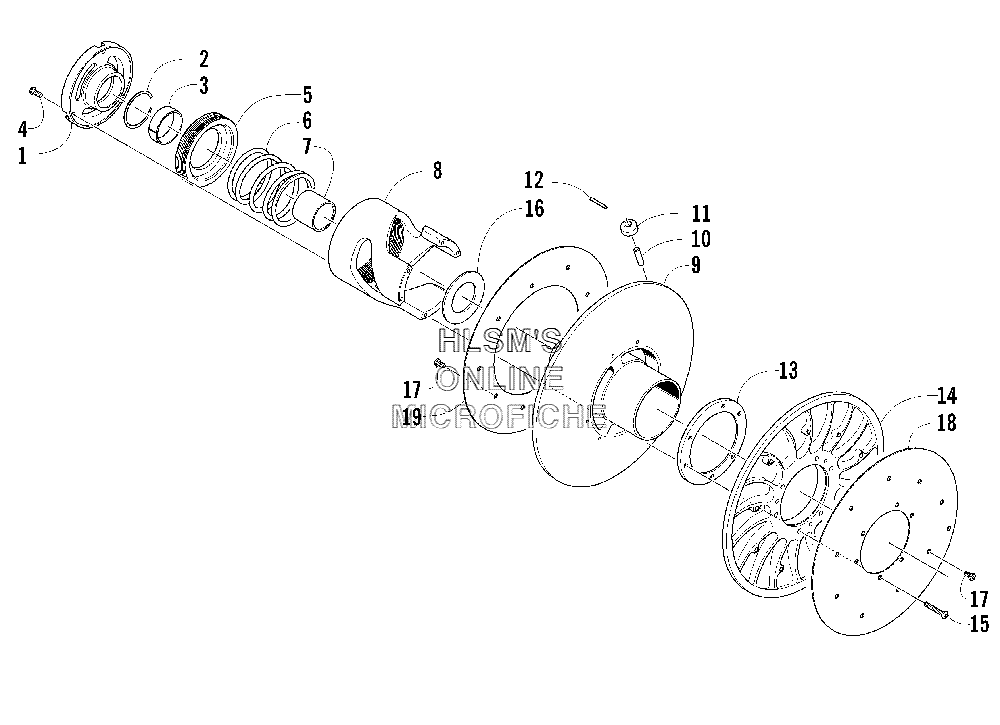

DRIVEN CLUTCH для Arctic Cat F6 Firecat EFI (BLACK) - 2005 года выпуска

№

Артикул

Название
-

0726-196 DRIVEN CLUTCH

DRIVEN CLUTCH

130 ₽
1

0748-595 COVER, TORQUE BRACKET (INC. 2, 3)

COVER, TORQUE BRACKET (INC. 2, 3)

19 130 ₽
2

0648-433 RING, SNAP

RING, SNAP

460 ₽
3

0648-009 BEARING

BEARING

2 910 ₽
4

1623-074 SCREW, MACHINE

SCREW, MACHINE

110 ₽
5

0648-439 ADJUSTER, SPRING

ADJUSTER, SPRING

4 570 ₽
6

0648-732 SPRING, DRIVEN CLUTCH, GREEN

SPRING, DRIVEN CLUTCH, GREEN

18 710 ₽
7

0648-720 SPACER

SPACER

4 570 ₽
8

0648-733 BRACKET, TORQUE 46°/38°

BRACKET, TORQUE 46°/38°

33 900 ₽
8

0648-448 BRACKET, TORQUE 36° (OVER 5, 000 FT ALT.)

BRACKET, TORQUE 36° (OVER 5, 000 FT ALT.)

26 830 ₽
9

0748-599 SHEAVE, STATIONARY (INC. 10, 12)

SHEAVE, STATIONARY (INC. 10, 12)

36 600 ₽
10

0648-097 PIN, CAM ROLLER

PIN, CAM ROLLER

440 ₽
11

0648-139 ROLLER, CAM

ROLLER, CAM

1 870 ₽
12

8070-224 PIN, SPRING

PIN, SPRING

60 ₽
13

0648-688 RETAINER, TORQUE BRACKET

RETAINER, TORQUE BRACKET

6 650 ₽
14

0748-591 SHEAVE, MOVABLE

SHEAVE, MOVABLE

90 470 ₽
15

1623-258 SCREW, MACHINE

SCREW, MACHINE

150 ₽
16

0648-437 SEAT, SPRING

SEAT, SPRING

520 ₽
17

0623-914 SCREW, SELF, TAPPING

SCREW, SELF, TAPPING

40 ₽
18

0648-728 COVER, MOVABLE SHEAVE

COVER, MOVABLE SHEAVE

3 950 ₽
