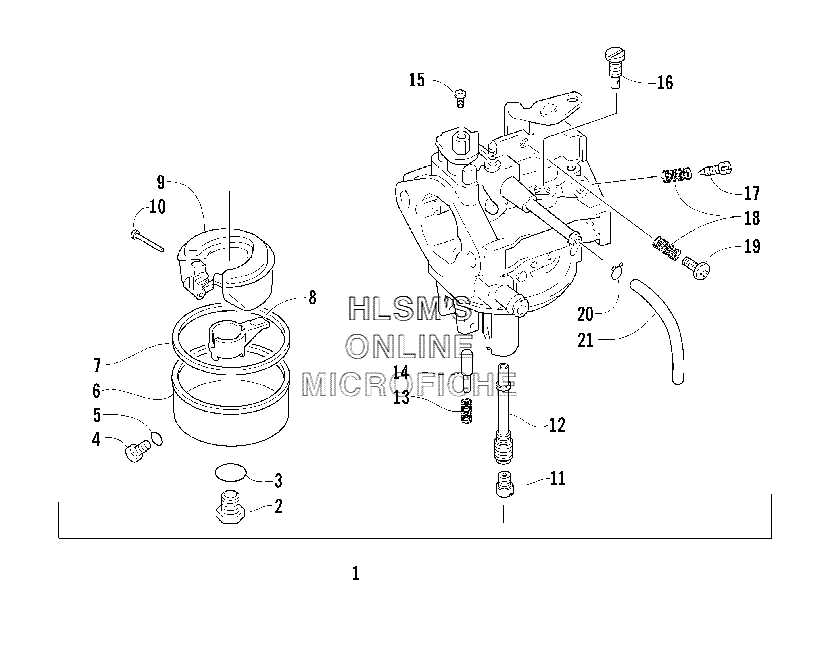

CARBURETOR для Arctic Cat ZR 120 (RED) - 2005 года выпуска
-
№АртикулНазвание
-
10694-028 CARBURETOR ASSY (INC. 2, 21)CARBURETOR ASSY (INC. 2, 21)
-
20693-697 PLUG, DRAINPLUG, DRAIN
-
30691-624 GASKET, DRAIN PLUGGASKET, DRAIN PLUG
-
40693-284 SCREW, DRAINSCREW, DRAIN
-
50693-285 GASKET, DRAIN SCREWGASKET, DRAIN SCREW
-
60693-283 CHAMBER, FLOATCHAMBER, FLOAT
-
70691-423 GASKET, FLOAT CHAMBERGASKET, FLOAT CHAMBER
-
80691-426 RINGRING
-
90691-424 FLOATFLOAT
-
100693-536 PIN, FLOATPIN, FLOAT
-
110694-032 MAIN JET (77.5)MAIN JET (77.5)
-
120693-056 NOZZLENOZZLE
-
130691-428 SPRING, NEEDLE JETSPRING, NEEDLE JET
-
140693-055 NEEDLE JETNEEDLE JET
-
150694-025 SCREWSCREW
-
160694-033 PILOT JET (42.5)PILOT JET (42.5)
-
160693-538 PILOT JET (37.5)PILOT JET (37.5)
-
166506-261 PILOT JET (45)PILOT JET (45)
-
166506-262 PILOT JET (47.5)PILOT JET (47.5)
-
166506-263 PILOT JETPILOT JET
-
170691-102 ADJUSTER SCREW, PILOT AIRADJUSTER SCREW, PILOT AIR
-
180691-272 SPRINGSPRING
-
190693-315 ADJUSTER SCREW, IDLE SPEEDADJUSTER SCREW, IDLE SPEED
-
200694-011 CLAMP, HOSECLAMP, HOSE
-
210694-012 HOSE, GASLINEHOSE, GASLINE
