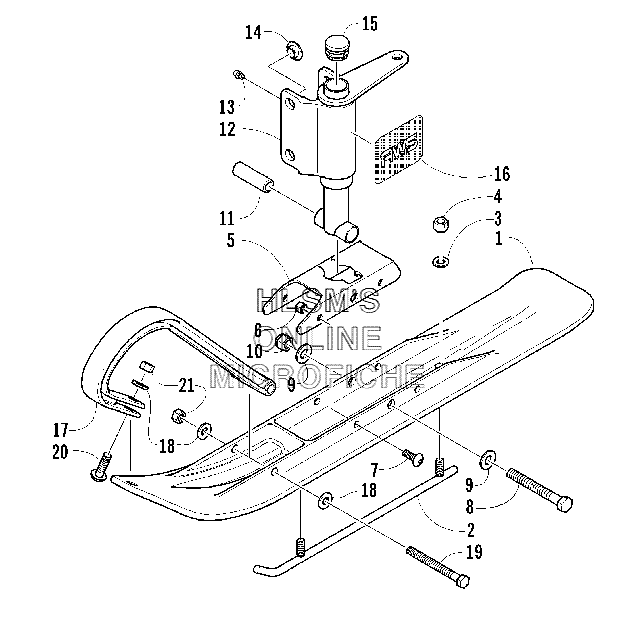

SKI AND SPINDLE ASSEMBLY для Arctic Cat ZR 120 (RED) - 2005 года выпуска
-
№АртикулНазвание
-
12603-379 SKI, PLASTICSKI, PLASTIC
-
20703-698 WEARBARWEARBAR
-
38050-242 WASHERWASHER
-
48040-426 NUT, LOCKNUT, LOCK
-
51703-649 SADDLE, SKISADDLE, SKI
-
68040-366 NUT, LOCKNUT, LOCK
-
78017-580 SCREW, MACHINESCREW, MACHINE
-
88002-231 SCREW, CAPSCREW, CAP
-
98050-277 WASHERWASHER
-
108040-486 NUT, LOCKNUT, LOCK
-
111603-365 AXLE, SUSPENSIONAXLE, SUSPENSION
-
121703-643 SPINDLE (INC. 13, 14)SPINDLE (INC. 13, 14)
-
130623-010 FITTING, GREASEFITTING, GREASE
-
140603-647 INSERT, SPINDLEINSERT, SPINDLE
-
150623-831 CAP, SPINDLECAP, SPINDLE
-
166611-124 DECAL, "AWS", SPINDLEDECAL, "AWS", SPINDLE
-
172603-387 HANDLE, SKIHANDLE, SKI
-
172603-388 HANDLE, SKIHANDLE, SKI
-
188050-247 WASHERWASHER
-
198002-141 SCREW, CAPSCREW, CAP
-
208017-672 SCREW, CAPSCREW, CAP
-
218041-426 NUT, LOCKNUT, LOCK
