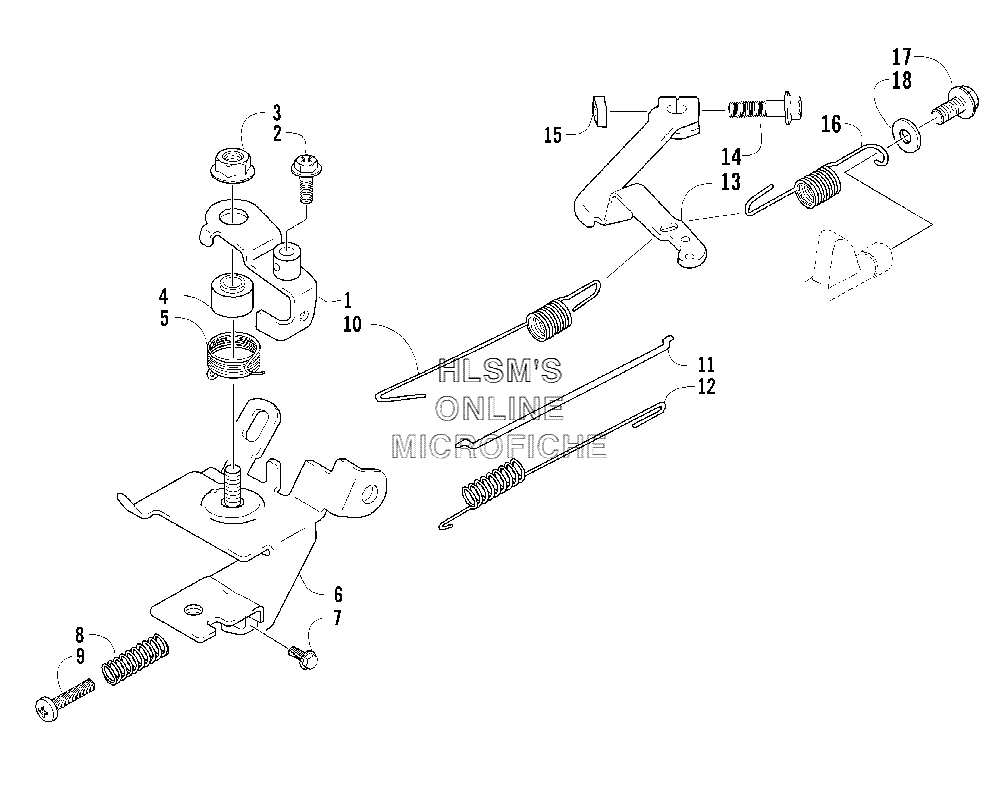

THROTTLE CONTROL ASSEMBLY для Arctic Cat ZR 120 (RED) - 2005 года выпуска
-
№АртикулНазвание
-
10694-016 LEVER, THROTTLE CABLELEVER, THROTTLE CABLE
-
23004-987 BOLTBOLT
-
33004-351 NUTNUT
-
43002-459 SPACERSPACER
-
50694-038 SPRINGSPRING
-
60694-017 BRACKET, THROTTLE CONTROLBRACKET, THROTTLE CONTROL
-
70693-241 BOLTBOLT
-
80691-901 SPRINGSPRING
-
93004-611 SCREWSCREW
-
100694-015 SPRING, THROTTLE CONTROLSPRING, THROTTLE CONTROL
-
110694-019 ROD, CARBURETORROD, CARBURETOR
-
120691-455 SPRING, CARBURETOR RODSPRING, CARBURETOR ROD
-
130693-259 LEVER, THROTTLE CONTROL (INC. 14, 15)LEVER, THROTTLE CONTROL (INC. 14, 15)
-
140693-416 BOLTBOLT
-
150691-017 NUTNUT
-
160623-965 SPRINGSPRING
-
170623-966 SCREWSCREW
-
188050-217 WASHERWASHER
