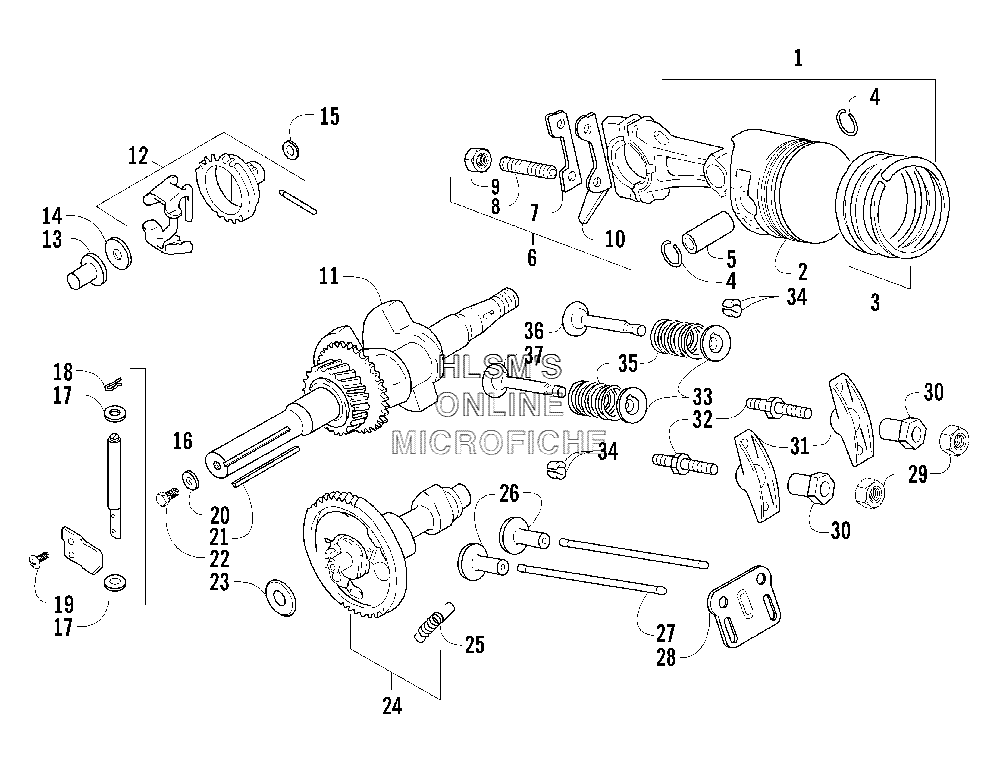

PISTON AND CRANKSHAFT для Arctic Cat ZR 120 (RED) - 2005 года выпуска
-
№АртикулНазвание
-
10694-026 PISTON ASSY (INC. 2, 4)PISTON ASSY (INC. 2, 4)
-
20691-398 PISTONPISTON
-
20691-569 PISTON, OVERSIZED (0.25 MM)PISTON, OVERSIZED (0.25 MM)
-
20691-570 PISTON, OVERSIZED (0.50 MM)PISTON, OVERSIZED (0.50 MM)
-
30691-399 RING, PISTON, SETRING, PISTON, SET
-
30691-571 RING, PISTON, SET, OVERSIZED (0.25 MM)RING, PISTON, SET, OVERSIZED (0.25 MM)
-
30691-572 RING, PISTON, SET, OVERSIZED (0.50 MM)RING, PISTON, SET, OVERSIZED (0.50 MM)
-
40691-378 CIRCLIPCIRCLIP
-
50691-400 PIN, PISTONPIN, PISTON
-
60691-936 ROD, CONNECTING, ASSY (INC. 7, 10)ROD, CONNECTING, ASSY (INC. 7, 10)
-
70691-403 PLATE, LOCKPLATE, LOCK
-
80691-366 BOLT, STUDBOLT, STUD
-
93004-851 NUTNUT
-
100691-402 PLATE, SPLASHPLATE, SPLASH
-
110694-027 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
120693-698 GEAR, GOVERNOR, SETGEAR, GOVERNOR, SET
-
130691-842 SLIDER, GOVERNORSLIDER, GOVERNOR
-
140691-843 WASHERWASHER
-
153004-652 WASHERWASHER
-
160693-258 SHAFT, THROTTLE CONTROL, SET (INC. 17, 19)SHAFT, THROTTLE CONTROL, SET (INC. 17, 19)
-
170693-252 WASHERWASHER
-
180691-848 CLIP, HAIRPINCLIP, HAIRPIN
-
193004-563 SCREWSCREW
-
200694-024 WASHERWASHER
-
210694-006 KEY, CRANKSHAFTKEY, CRANKSHAFT
-
220694-007 BOLT, CRANKSHAFTBOLT, CRANKSHAFT
-
230691-840 WASHERWASHER
-
240691-914 CAMSHAFT (INC. 25)CAMSHAFT (INC. 25)
-
250691-380 SPRINGSPRING
-
260691-406 TAPPETTAPPET
-
270691-407 ROD, PUSHROD, PUSH
-
280691-415 GUIDE, PUSH RODGUIDE, PUSH ROD
-
290691-016 NUTNUT
-
300691-413 PIVOTPIVOT
-
310691-412 ARM, ROCKERARM, ROCKER
-
320694-037 BOLT, STUD, PIVOTBOLT, STUD, PIVOT
-
330693-313 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
340693-281 COTTER, VALVECOTTER, VALVE
-
350694-036 SPRING, VALVESPRING, VALVE
-
360694-008 VALVE, INTAKEVALVE, INTAKE
-
370694-009 VALVE, EXHAUSTVALVE, EXHAUST
