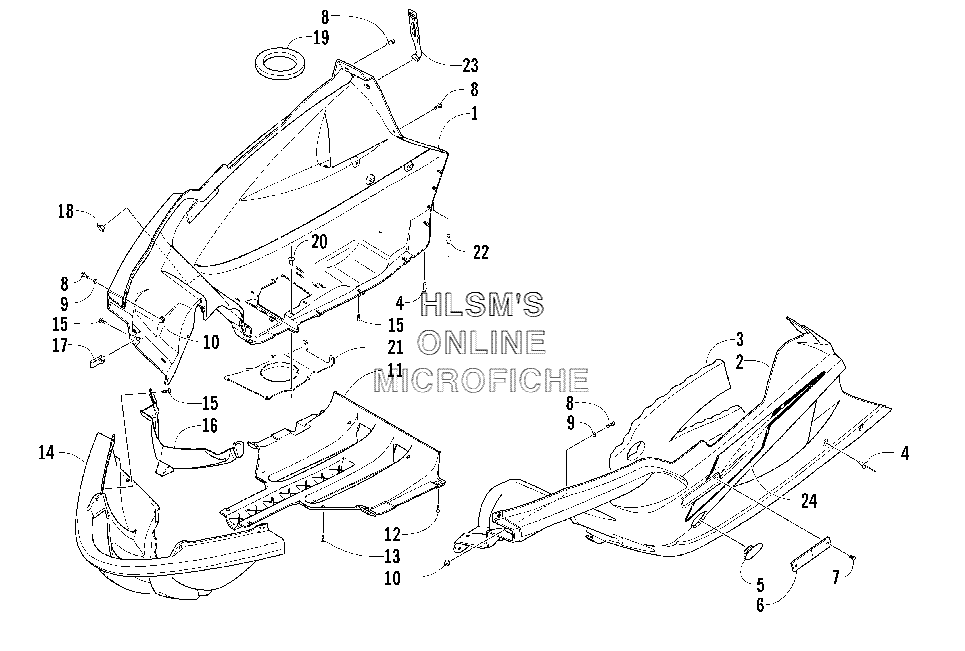

BELLY PAN ASSEMBLY для Arctic Cat Sabercat 500 EFI LX (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
13706-058 BELLY PAN (RIGHT)BELLY PAN (RIGHT)
-
22606-647 BELLY PAN (LEFT)BELLY PAN (LEFT)
-
30617-443 FOAM, BELLY PAN (LEFT)FOAM, BELLY PAN (LEFT)
-
48061-708 RIVETRIVET
-
52606-650 PANEL, ACCESS DRIVE CLUTCHPANEL, ACCESS DRIVE CLUTCH
-
60606-526 REFLECTOR (FRONT/AMBER)REFLECTOR (FRONT/AMBER)
-
70623-269 CLIP, RETAININGCLIP, RETAINING
-
88017-581 SCREW, MACHINESCREW, MACHINE
-
98050-217 WASHERWASHER
-
108047-366 NUT, LOCKNUT, LOCK
-
113606-085 BELLY PAN (CENTER)BELLY PAN (CENTER)
-
121623-031 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
130623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
144606-040 BUMPER, FRONTBUMPER, FRONT
-
150623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
162606-911 SCREEN, CENTER BELLY PANSCREEN, CENTER BELLY PAN
-
171623-030 NUT, SPEEDNUT, SPEED
-
183606-050 PIN, RESONATOR MOUNTINGPIN, RESONATOR MOUNTING
-
191612-603 SEAL, EXHAUSTSEAL, EXHAUST
-
208061-508 RIVETRIVET
-
211612-686 DEFLECTOR, EXHAUSTDEFLECTOR, EXHAUST
-
228061-710 RIVETRIVET
-
232606-624 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
246611-676 DECAL, BELLY PAN (RIGHT)DECAL, BELLY PAN (RIGHT)
-
246611-677 DECAL, BELLY PAN (LEFT)DECAL, BELLY PAN (LEFT)
