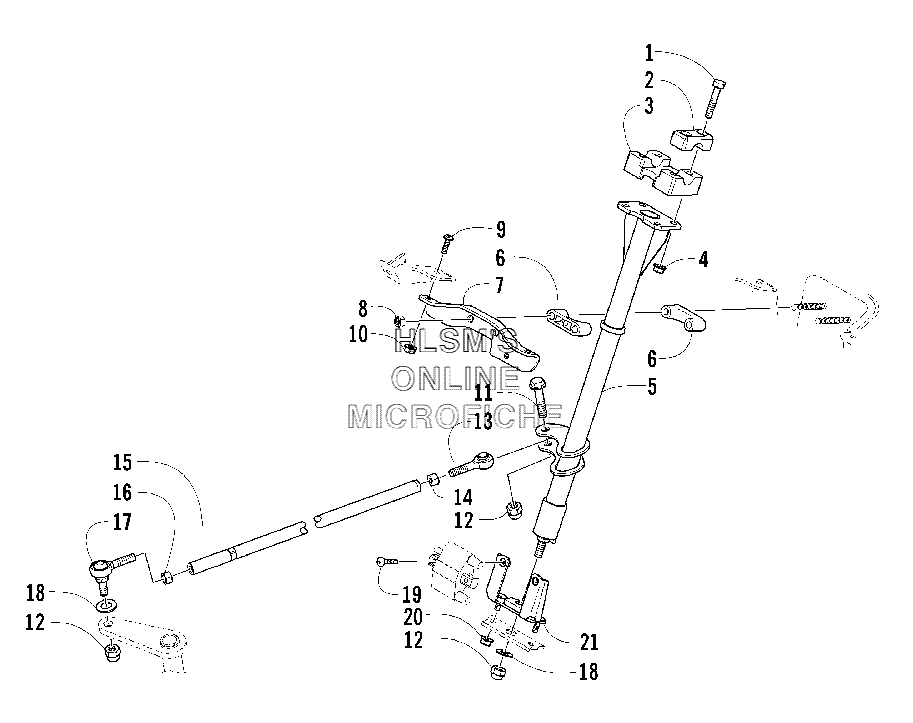

STEERING POST ASSEMBLY для Arctic Cat Sabercat 500 EFI LX (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
18002-137 SCREW, CAPSCREW, CAP
-
20605-506 CAP, ADJUSTING BLOCKCAP, ADJUSTING BLOCK
-
30605-507 BLOCK, ADJUSTINGBLOCK, ADJUSTING
-
48047-426 NUT, LOCKNUT, LOCK
-
50705-844 POST, STEERINGPOST, STEERING
-
60605-576 BLOCK, MOUNTING STEERING POSTBLOCK, MOUNTING STEERING POST
-
70605-649 PLATE, RETAININGPLATE, RETAINING
-
88040-426 NUT, LOCKNUT, LOCK
-
98017-581 SCREW, MACHINESCREW, MACHINE
-
108047-366 NUT, LOCKNUT, LOCK
-
118004-225 SCREW, CAPSCREW, CAP
-
120623-025 NUT, LOCKNUT, LOCK
-
130605-504 BALL JOINT, TIE ROD (RIGHT)BALL JOINT, TIE ROD (RIGHT)
-
140623-294 NUT, HEX (RIGHT)NUT, HEX (RIGHT)
-
150605-672 TUBE, TIE RODTUBE, TIE ROD
-
160123-917 NUT, HEX (LEFT)NUT, HEX (LEFT)
-
170605-511 BALL JOINT, TIE ROD (LEFT)BALL JOINT, TIE ROD (LEFT)
-
180623-044 WASHERWASHER
-
198017-402 SCREW, MACHINESCREW, MACHINE
-
208048-366 NUT, LOCKNUT, LOCK
-
210705-947 STOP, STEERING POSTSTOP, STEERING POST
