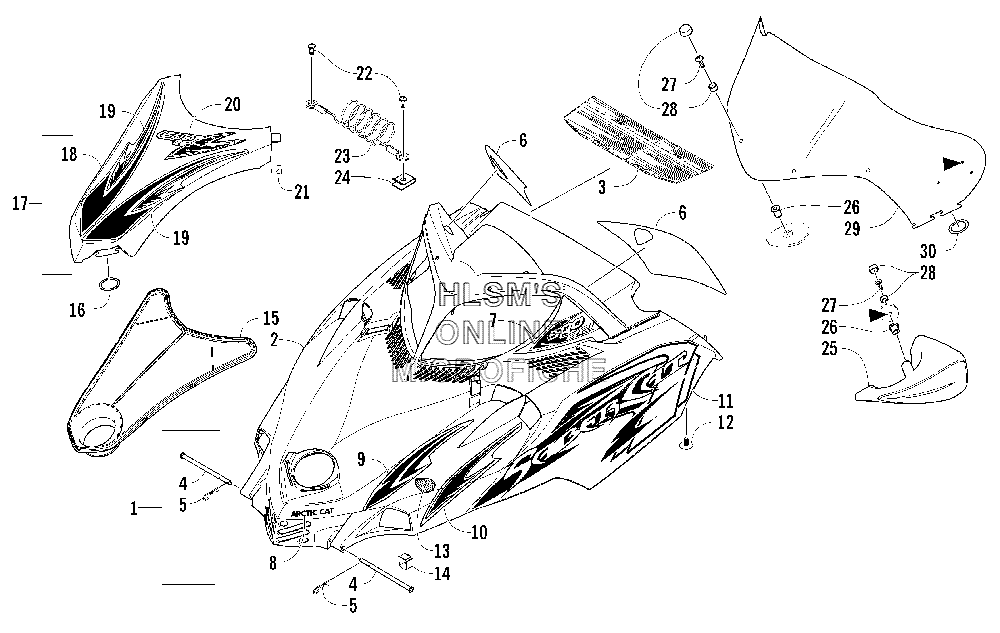

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat Sabercat 500 EFI LX (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
11718-792 HOOD WITH DECALS (INC. 2-11)HOOD WITH DECALS (INC. 2-11)
-
21718-667 HOOD WITH OUT DECALS (INC. 3-5)HOOD WITH OUT DECALS (INC. 3-5)
-
35611-483 DECAL, CAUTION/WARNING REVERSEDECAL, CAUTION/WARNING REVERSE
-
41623-026 PIN, CLEVISPIN, CLEVIS
-
50623-847 CLIP, HAIRPINCLIP, HAIRPIN
-
66611-668 DECAL, CONSOLE (RIGHT)DECAL, CONSOLE (RIGHT)
-
66611-669 DECAL, CONSOLE (LEFT)DECAL, CONSOLE (LEFT)
-
76611-656 DECAL, HEADLIGHT (RIGHT)DECAL, HEADLIGHT (RIGHT)
-
76611-657 DECAL, HEADLIGHT (LEFT)DECAL, HEADLIGHT (LEFT)
-
86611-673 DECAL, HOOD ''ARCTIC CAT''DECAL, HOOD ''ARCTIC CAT''
-
96611-662 DECAL, HOOD (UPPER/RIGHT)DECAL, HOOD (UPPER/RIGHT)
-
96611-663 DECAL, HOOD (UPPER/LEFT)DECAL, HOOD (UPPER/LEFT)
-
106611-664 DECAL, HOOD FORWARD (RIGHT)DECAL, HOOD FORWARD (RIGHT)
-
106611-665 DECAL, HOOD FORWARD (LEFT)DECAL, HOOD FORWARD (LEFT)
-
116611-666 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
116611-667 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
120623-544 PLUGPLUG
-
130617-466 FOAM, HOODFOAM, HOOD
-
140123-394 CLIP, RETAINING FOAMCLIP, RETAINING FOAM
-
153606-150 SCREEN, HOODSCREEN, HOOD
-
162606-801 O-RINGO-RING
-
171718-782 COVER, HOOD WITH DECALS (INC. 18-21)COVER, HOOD WITH DECALS (INC. 18-21)
-
182706-031 COVER, HOOD WITH OUT DECALSCOVER, HOOD WITH OUT DECALS
-
196611-674 DECAL, COVER (RIGHT)DECAL, COVER (RIGHT)
-
196611-675 DECAL, COVER (LEFT)DECAL, COVER (LEFT)
-
206611-670 DECAL, COVER CRESTDECAL, COVER CREST
-
212606-007 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
220623-302 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
232606-726 CABLE, HOODCABLE, HOOD
-
241623-052 U-NUTU-NUT
-
252639-477 KIT, MIRROR (INC. SIX NO. 26-28)KIT, MIRROR (INC. SIX NO. 26-28)
-
260623-845 NUT, EXPANSIONNUT, EXPANSION
-
270623-902 SCREW, MACHINESCREW, MACHINE
-
280124-054 SNAP CAP WITH WASHERSNAP CAP WITH WASHER
-
293606-943 WINDSHIELDWINDSHIELD
-
300616-032 O-RINGO-RING
