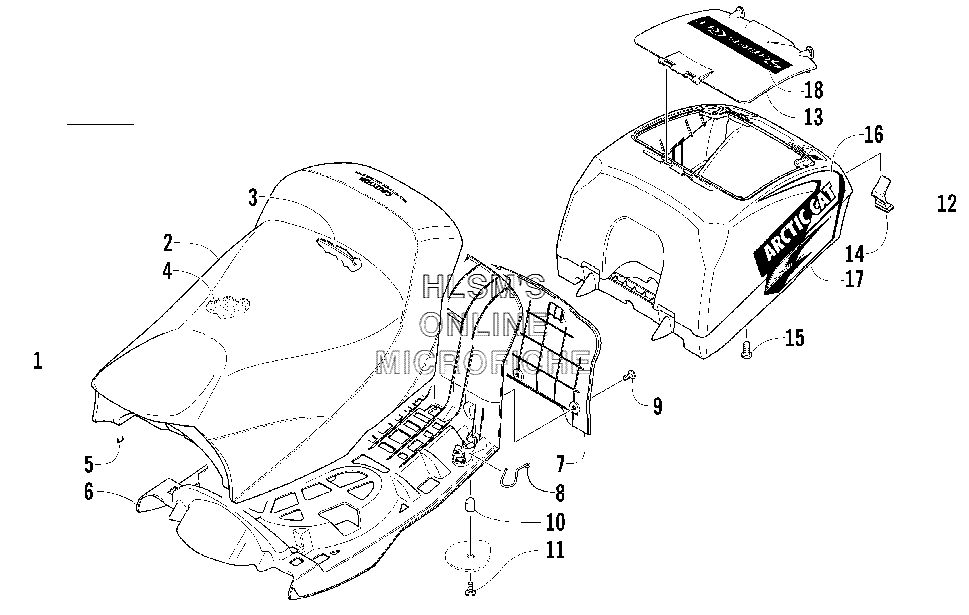

SEAT AND STORAGE BOX ASSEMBLY для Arctic Cat Sabercat 500 EFI LX (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
17998-597 COMPLETE SEAT ASSEMBLY (INC. 2-9)COMPLETE SEAT ASSEMBLY (INC. 2-9)
-
23706-041 COVER, SEAT (INC. 3)COVER, SEAT (INC. 3)
-
33606-369 WIRE, SEATWIRE, SEAT
-
40717-176 FOAM, SEATFOAM, SEAT
-
50624-528 STAPLESTAPLE
-
63606-056 BASE, SEATBASE, SEAT
-
73606-248 PANEL, SEATPANEL, SEAT
-
81623-177 CLIP, RETAININGCLIP, RETAINING
-
91623-158 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
101623-138 LATCH, SEATLATCH, SEAT
-
118017-667 SCREW, MACHINESCREW, MACHINE
-
123606-074 BOX, STORAGE (INC. 13-15)BOX, STORAGE (INC. 13-15)
-
133606-072 COVER, STORAGE BOXCOVER, STORAGE BOX
-
143606-357 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
151623-022 SCREWSCREW
-
166611-678 DECAL, STORAGE BOX (UPPER/RIGHT)DECAL, STORAGE BOX (UPPER/RIGHT)
-
166611-679 DECAL, STORAGE BOX (UPPER/LEFT)DECAL, STORAGE BOX (UPPER/LEFT)
-
176611-680 DECAL, STORAGE BOX (LOWER/RIGHT)DECAL, STORAGE BOX (LOWER/RIGHT)
-
176611-681 DECAL, STORAGE BOX (LOWER/LEFT)DECAL, STORAGE BOX (LOWER/LEFT)
-
186611-682 DECAL, BOX ''SABERCAT''DECAL, BOX ''SABERCAT''
