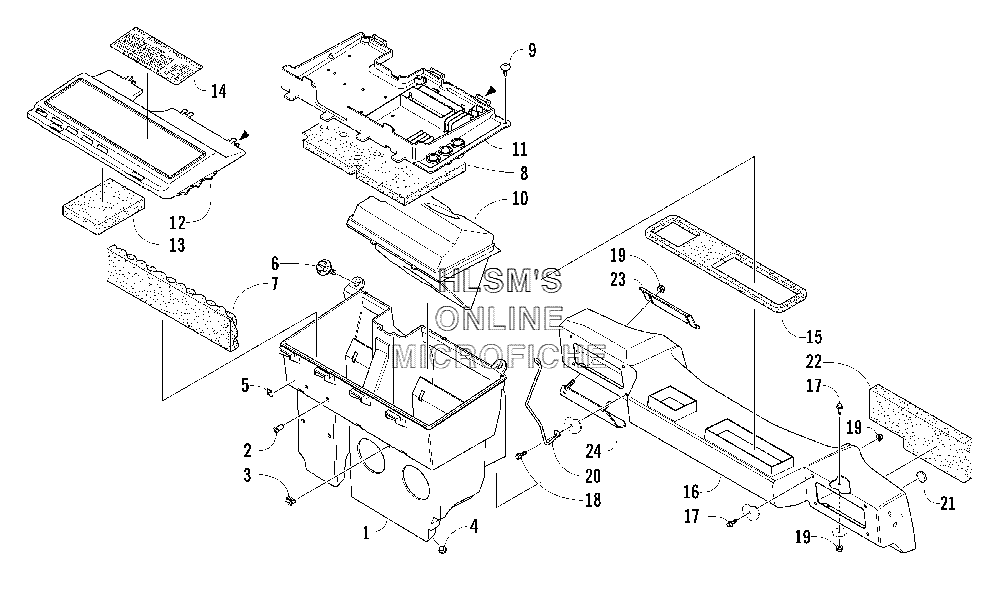

AIR SILENCER ASSEMBLY для Arctic Cat Z 440 LX - 2006 года выпуска
-
№АртикулНазвание
-
10770-659 SILENCER, AIR ASSEMBLY (INC. 2)SILENCER, AIR ASSEMBLY (INC. 2)
-
21623-127 INSERTINSERT
-
30623-403 CLAMP, PUSH-MOUNTCLAMP, PUSH-MOUNT
-
41606-038 BUMPER, AIR SILENCERBUMPER, AIR SILENCER
-
54611-029 DECAL, FUEL SHUT-OFF VALVEDECAL, FUEL SHUT-OFF VALVE
-
60623-780 SCREW, MACHINE HEX SHOULDERSCREW, MACHINE HEX SHOULDER
-
70617-254 FOAM, AIR SILENCER (FRONT)FOAM, AIR SILENCER (FRONT)
-
80617-393 FOAM, COVER AIR SILENCERFOAM, COVER AIR SILENCER
-
90623-727 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
101670-061 RESONATOR, Q-WAVERESONATOR, Q-WAVE
-
111670-197 COVER, AIR SILENCERCOVER, AIR SILENCER
-
121670-049 COVER, TOOL TRAYCOVER, TOOL TRAY
-
130617-411 FOAM, TOOL TRAYFOAM, TOOL TRAY
-
147611-138 DECAL, JET CHARTDECAL, JET CHART
-
150617-245 SEAL, PLENUM/AIR SILENCERSEAL, PLENUM/AIR SILENCER
-
161670-327 PLENUM, AIR SILENCERPLENUM, AIR SILENCER
-
178020-039 SCREW, CAPSCREW, CAP
-
188020-040 SCREW, CAPSCREW, CAP
-
198048-366 NUT, LOCKNUT, LOCK
-
200707-705 BRACKET, GUARD HARNESS/ROPEBRACKET, GUARD HARNESS/ROPE
-
210617-270 FOAM, PLENUM INTAKEFOAM, PLENUM INTAKE
