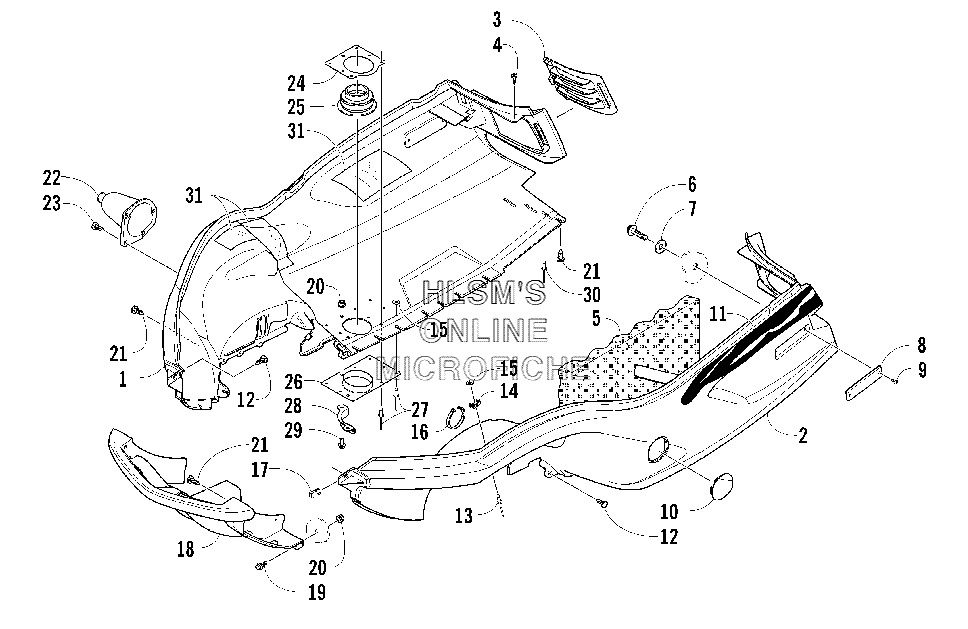

BELLY PAN AND FRONT BUMPER ASSEMBLY для Arctic Cat Z 440 LX - 2006 года выпуска
-
№АртикулНазвание
-
11706-110 BELLY PAN (RIGHT)BELLY PAN (RIGHT)
-
21706-141 BELLY PAN (LEFT)BELLY PAN (LEFT)
-
31606-044 LOUVER, AIR-INTAKE (RIGHT)LOUVER, AIR-INTAKE (RIGHT)
-
31606-045 LOUVER, AIR-INTAKE (LEFT)LOUVER, AIR-INTAKE (LEFT)
-
40623-378 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
50617-315 FOAM, BELLY PAN (LEFT)FOAM, BELLY PAN (LEFT)
-
60623-647 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
70623-184 WASHERWASHER
-
80606-526 REFLECTOR (FRONT/AMBER)REFLECTOR (FRONT/AMBER)
-
90623-269 CLIP, RETAININGCLIP, RETAINING
-
101606-767 PANEL, CLUTCH ACCESSPANEL, CLUTCH ACCESS
-
116611-566 DECAL, BELLY PAN (RIGHT)DECAL, BELLY PAN (RIGHT)
-
116611-567 DECAL, BELLY PAN (LEFT)DECAL, BELLY PAN (LEFT)
-
120623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
138060-506 RIVETRIVET
-
140623-228 MOUNT, CABLE TIEMOUNT, CABLE TIE
-
150123-149 WASHERWASHER
-
160123-788 CABLE TIE 8 IN.CABLE TIE 8 IN.
-
170623-427 NUT, UNUT, U
-
181606-949 BUMPER (FRONT)BUMPER (FRONT)
-
198020-040 SCREW, CAPSCREW, CAP
-
208048-366 NUT, LOCKNUT, LOCK
-
211623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
220605-332 BOOT, STEERING (RIGHT)BOOT, STEERING (RIGHT)
-
220605-333 BOOT, STEERING (LEFT)BOOT, STEERING (LEFT)
-
230623-564 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
240712-881 RING, EXHAUST OUTLET (UPPER)RING, EXHAUST OUTLET (UPPER)
-
251612-027 BOOT, EXHAUSTBOOT, EXHAUST
-
260712-880 RING, EXHAUST OUTLET (LOWER)RING, EXHAUST OUTLET (LOWER)
-
278060-508 RIVETRIVET
-
280712-879 DEFLECTOR, EXHAUSTDEFLECTOR, EXHAUST
-
298020-039 SCREW, CAPSCREW, CAP
-
308061-508 RIVETRIVET
-
310619-206 TAPE, FOILTAPE, FOIL
