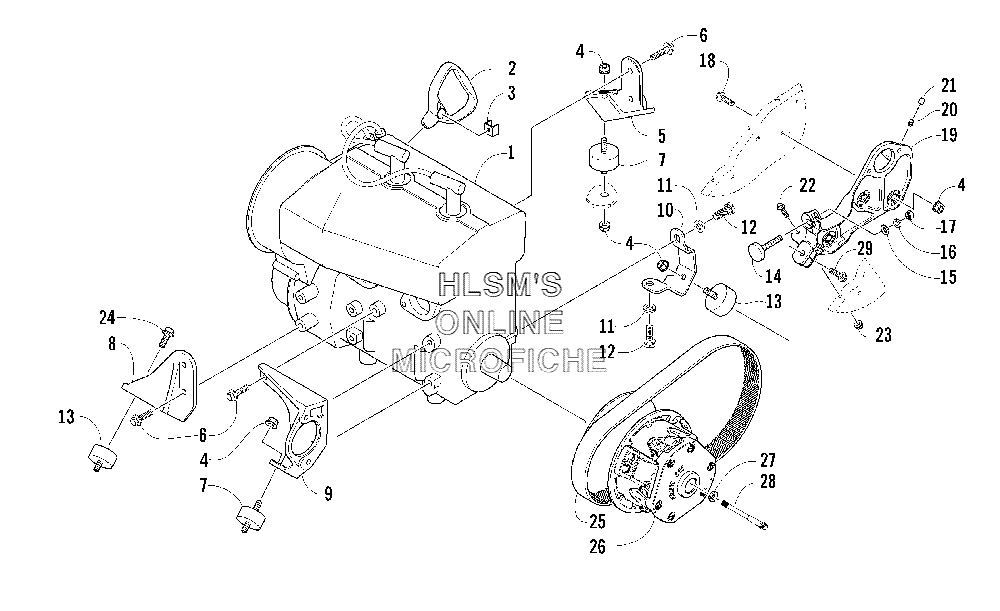

ENGINE AND RELATED PARTS для Arctic Cat Z 440 LX - 2006 года выпуска
-
№АртикулНазвание
-
10662-419 ENGINE, AS44A9ENGINE, AS44A9
-
20636-363 HANDLE, RECOILHANDLE, RECOIL
-
30606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
48048-486 NUT, LOCKNUT, LOCK
-
50708-048 BRACKET, ENGINE MOUNTING (RIGHT/REAR)BRACKET, ENGINE MOUNTING (RIGHT/REAR)
-
68020-130 SCREW, CAPSCREW, CAP
-
70608-118 MOUNT, ENGINE DOUBLE MALEMOUNT, ENGINE DOUBLE MALE
-
80708-050 BRACKET, ENGINE MOUNTING (RIGHT/FRONT)BRACKET, ENGINE MOUNTING (RIGHT/FRONT)
-
90608-287 BRACKET, ENGINE MOUNTING (LEFT/FRONT)BRACKET, ENGINE MOUNTING (LEFT/FRONT)
-
100708-412 BRACKET, ENGINE MOUNTING (LEFT/REAR)BRACKET, ENGINE MOUNTING (LEFT/REAR)
-
118051-332 WASHER, LOCKWASHER, LOCK
-
128002-402 SCREW, CAPSCREW, CAP
-
130608-217 MOUNT, ENGINEMOUNT, ENGINE
-
140608-197 BUMPER, TORQUE ENGINEBUMPER, TORQUE ENGINE
-
158050-277 WASHERWASHER
-
168051-277 WASHER, LOCKWASHER, LOCK
-
178042-486 NUTNUT
-
188020-224 SCREW, CAPSCREW, CAP
-
190708-140 BRACKET, ENGINE MOUNTING/BEARING SUPPORT (INC. 20-21)BRACKET, ENGINE MOUNTING/BEARING SUPPORT (INC. 20-21)
-
201623-010 FITTING, GREASEFITTING, GREASE
-
210623-904 CAP, GREASE FITTINGCAP, GREASE FITTING
-
228020-040 SCREW, CAPSCREW, CAP
-
238048-366 NUT, LOCKNUT, LOCK
-
248020-220 SCREW, CAPSCREW, CAP
-
250627-021 BELT, DRIVEBELT, DRIVE
-
260725-495 CLUTCH, DRIVECLUTCH, DRIVE
-
270623-210 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
280623-804 BOLT, CLUTCHBOLT, CLUTCH
-
298020-225 SCREW, CAPSCREW, CAP
