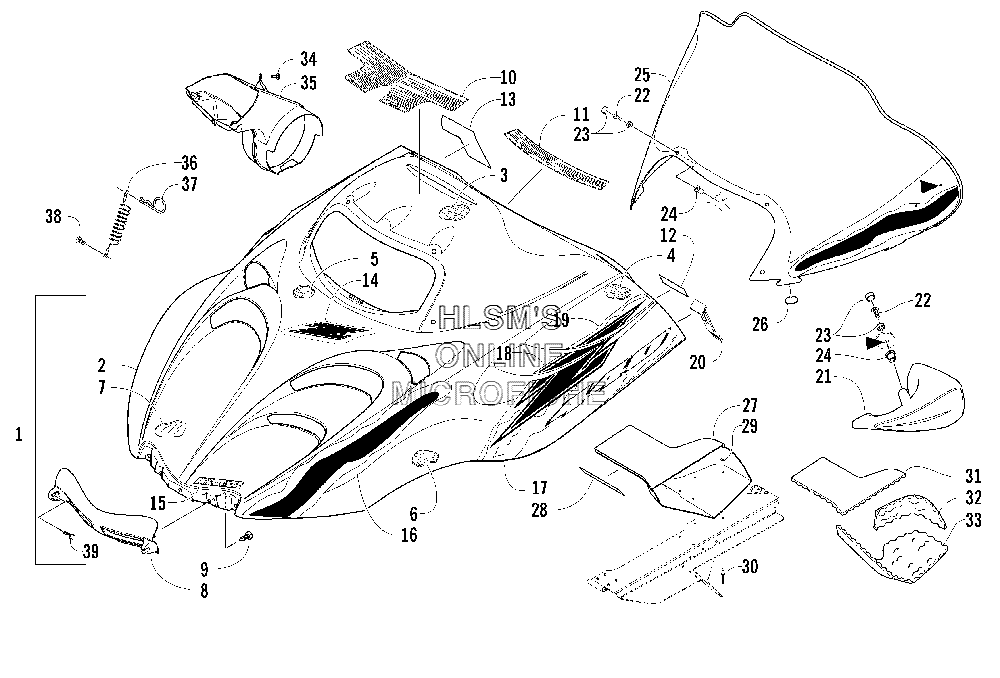

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat Z 440 LX - 2006 года выпуска
-
№АртикулНазвание
-
11718-883 HOOD W/DECALS (INC. 2-19)HOOD W/DECALS (INC. 2-19)
-
21718-700 HOOD W/O DECALS (INC. 3-13)HOOD W/O DECALS (INC. 3-13)
-
30617-478 FOAM, HOOD (UPPER/MIDDLE/RIGHT)FOAM, HOOD (UPPER/MIDDLE/RIGHT)
-
30617-479 FOAM, HOOD (UPPER/MIDDLE/LEFT)FOAM, HOOD (UPPER/MIDDLE/LEFT)
-
40617-476 FOAM, HOOD (UPPER/RIGHT)FOAM, HOOD (UPPER/RIGHT)
-
40617-505 FOAM, HOOD (UPPER/LEFT)FOAM, HOOD (UPPER/LEFT)
-
50617-475 FOAM, HOOD (MIDDLE)FOAM, HOOD (MIDDLE)
-
60617-326 FOAM, HOOD (REAR/RIGHT)FOAM, HOOD (REAR/RIGHT)
-
60617-327 FOAM, HOOD (REAR/LEFT)FOAM, HOOD (REAR/LEFT)
-
71606-938 FOIL, HOOD (RIGHT)FOIL, HOOD (RIGHT)
-
71606-939 FOIL, HOOD (LEFT)FOIL, HOOD (LEFT)
-
81606-720 HINGE, HOODHINGE, HOOD
-
90623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
103611-485 DECAL, WARNING GENERAL AND BRAKEDECAL, WARNING GENERAL AND BRAKE
-
113611-970 DECAL, CAUTION ENGINE/BATTERY/FUELDECAL, CAUTION ENGINE/BATTERY/FUEL
-
123611-509 DECAL, WARNING SEATING CAPACITYDECAL, WARNING SEATING CAPACITY
-
133611-580 DECAL, REVERSEDECAL, REVERSE
-
146611-572 DECAL, HOOD CRESTDECAL, HOOD CREST
-
156611-576 DECAL, ''ARCTIC CAT'' HOODDECAL, ''ARCTIC CAT'' HOOD
-
166611-554 DECAL, HOOD FORWARD (RIGHT)DECAL, HOOD FORWARD (RIGHT)
-
166611-555 DECAL, HOOD FORWARD (LEFT)DECAL, HOOD FORWARD (LEFT)
-
176611-562 DECAL, HOOD (LOWER/RIGHT)DECAL, HOOD (LOWER/RIGHT)
-
176611-563 DECAL, HOOD (LOWER/LEFT)DECAL, HOOD (LOWER/LEFT)
-
186611-558 DECAL, HOOD VENT (CENTER/RIGHT)DECAL, HOOD VENT (CENTER/RIGHT)
-
186611-559 DECAL, HOOD VENT (CENTER/LEFT)DECAL, HOOD VENT (CENTER/LEFT)
-
196611-556 DECAL, HOOD VENT (UPPER/RIGHT)DECAL, HOOD VENT (UPPER/RIGHT)
-
196611-557 DECAL, HOOD VENT (UPPER/LEFT)DECAL, HOOD VENT (UPPER/LEFT)
-
201606-067 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
212639-477 MIRROR KIT (INC. SIX NO. 22-24)MIRROR KIT (INC. SIX NO. 22-24)
-
220623-902 SCREW, MACHINESCREW, MACHINE
-
230124-054 SNAP CAP WITH WASHERSNAP CAP WITH WASHER
-
240623-845 NUT, EXPANSIONNUT, EXPANSION
-
254606-032 WINDSHIELDWINDSHIELD
-
260616-032 O-RINGO-RING
-
271606-872 DUCT, AIR-OUTDUCT, AIR-OUT
-
280706-548 TAPE, FOILTAPE, FOIL
-
290123-149 WASHERWASHER
-
308060-506 RIVETRIVET
-
310617-453 FOAM, AIR-OUT DUCT TOPFOAM, AIR-OUT DUCT TOP
-
320617-454 FOAM, AIR-OUT DUCT SIDEFOAM, AIR-OUT DUCT SIDE
-
330617-452 FOAM, AIR-OUT DUCT BOTTOMFOAM, AIR-OUT DUCT BOTTOM
-
340623-257 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
351606-829 DUCT, AIR-INDUCT, AIR-IN
-
362606-247 CABLE, HOODCABLE, HOOD
-
370623-805 CLIP, HAIRPINCLIP, HAIRPIN
-
380623-057 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
391623-016 SCREW, MACHINESCREW, MACHINE
