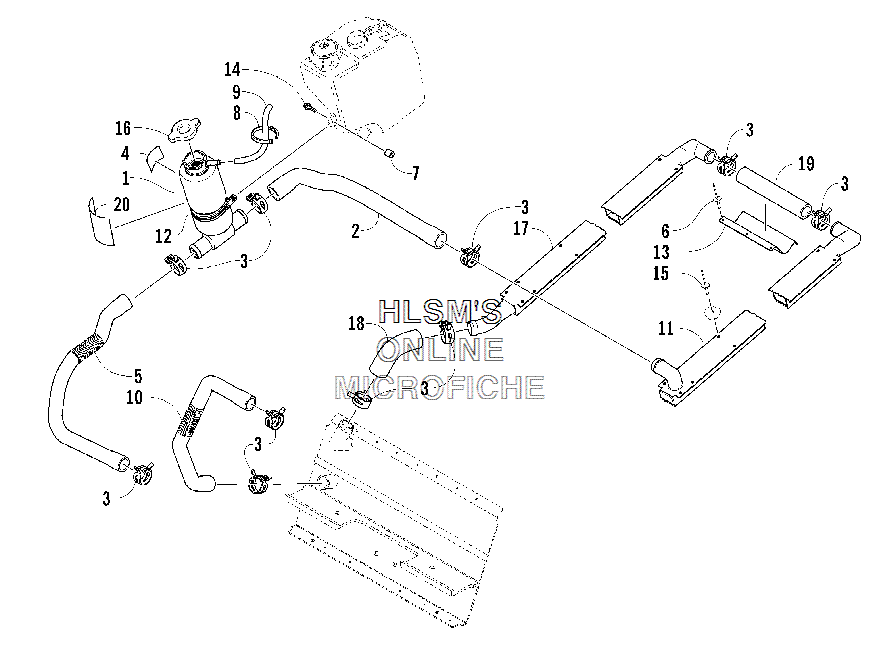

COOLING ASSY. для Arctic Cat ZR 900 EFI - 2006 года выпуска
-
№АртикулНазвание
-
11606-396 TANK, COOLANTTANK, COOLANT
-
20610-379 HOSE, COOLANT TANK/LEFT HEAT EXCHANGERHOSE, COOLANT TANK/LEFT HEAT EXCHANGER
-
30623-736 CLAMP, HOSECLAMP, HOSE
-
42611-758 DECAL, FILL LEVEL - COOLANT TANKDECAL, FILL LEVEL - COOLANT TANK
-
50610-474 HOSE, ENGINE/COOLANT TANKHOSE, ENGINE/COOLANT TANK
-
68060-504 RIVET (BLACK)RIVET (BLACK)
-
71623-045 SPACERSPACER
-
80123-788 CABLE TIE - 7 IN.CABLE TIE - 7 IN.
-
90610-015 HOSE, VENT - 100 FTHOSE, VENT - 100 FT
-
90610-016 HOSE, VENT - 25 FTHOSE, VENT - 25 FT
-
100610-475 HOSE, COOLANT - ENGINE/FRONT HEAT EXCHANGERHOSE, COOLANT - ENGINE/FRONT HEAT EXCHANGER
-
110716-921 HEAT EXCHANGER - LEFT TUBEHEAT EXCHANGER - LEFT TUBE
-
120623-761 CLAMP, COOLANT TANKCLAMP, COOLANT TANK
-
130616-810 GUARD, COOLANT HOSEGUARD, COOLANT HOSE
-
148020-046 SCREW, CAPSCREW, CAP
-
158060-706 RIVET (BLACK)RIVET (BLACK)
-
160606-268 CAP, FILLER NECKCAP, FILLER NECK
-
170716-920 HEAT EXCHANGER - RIGHT TUBEHEAT EXCHANGER - RIGHT TUBE
-
180610-244 HOSE, COOLANT - FRONT HEAT EXCHANGER/RIGHT HEAT EXCHANGERHOSE, COOLANT - FRONT HEAT EXCHANGER/RIGHT HEAT EXCHANGER
-
190610-215 HOSE, COOLANT - REARHOSE, COOLANT - REAR
-
200706-548 TAPE, FOILTAPE, FOIL
