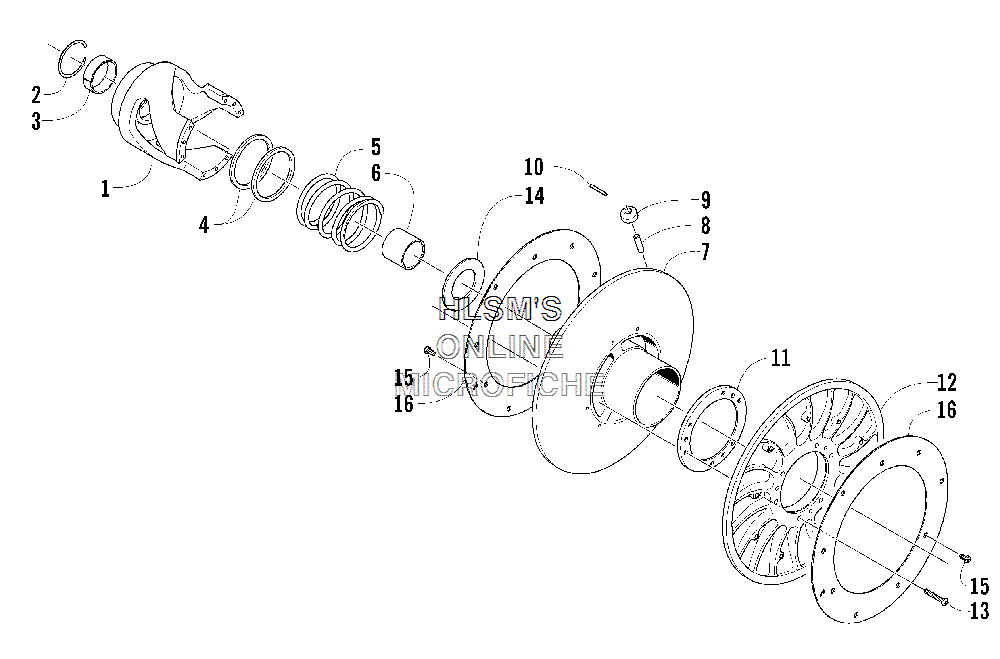

DRIVEN CLUTCH для Arctic Cat ZR 900 EFI - 2006 года выпуска
-
№АртикулНазвание
-
500726-228 DRIVEN CLUTCHDRIVEN CLUTCH
-
10748-648 BRACKET, TORQUE 50°/38° (INC. 2-3) (0-5,000 FT ALT.)BRACKET, TORQUE 50°/38° (INC. 2-3) (0-5,000 FT ALT.)
-
10748-628 BRACKET, TORQUE 50°/36° (INC. 2-3) (OVER 5,000 FT ALT.)BRACKET, TORQUE 50°/36° (INC. 2-3) (OVER 5,000 FT ALT.)
-
20648-433 RING, SNAPRING, SNAP
-
30648-009 BEARINGBEARING
-
40648-713 SEAT, SPRING - DRIVEN CLUTCHSEAT, SPRING - DRIVEN CLUTCH
-
50648-693 SPRING, DRIVEN CLUTCH - WHITESPRING, DRIVEN CLUTCH - WHITE
-
60648-753 SPACERSPACER
-
70748-613 SHEAVE, STATIONARY (INC. 8-10)SHEAVE, STATIONARY (INC. 8-10)
-
80648-097 PIN, CAM ROLLERPIN, CAM ROLLER
-
90648-139 ROLLER, CAMROLLER, CAM
-
108070-224 PIN, SPRINGPIN, SPRING
-
110648-650 RETAINER, TORQUE BRACKETRETAINER, TORQUE BRACKET
-
120748-617 SHEAVE, MOVABLESHEAVE, MOVABLE
-
131623-517 SCREW, MACHINESCREW, MACHINE
-
140648-437 SEAT, SPRINGSEAT, SPRING
-
150623-914 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
160648-728 COVER, SHEAVECOVER, SHEAVE
