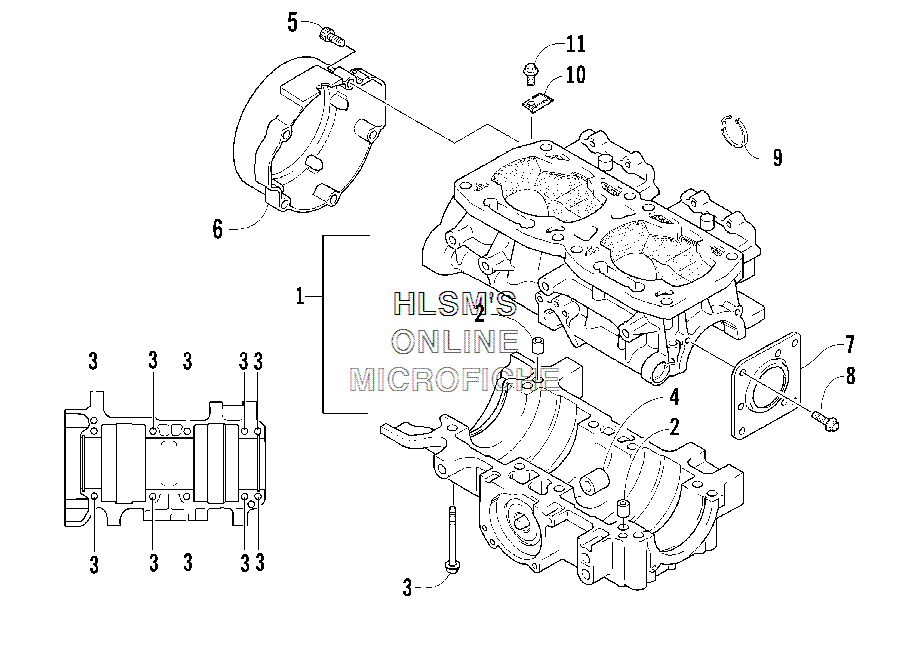

CRANKCASE ASSY. для Arctic Cat ZR 900 EFI - 2006 года выпуска
-
№АртикулНазвание
-
13006-460 CRANKCASE ASSY. (INC. 2-4)CRANKCASE ASSY. (INC. 2-4)
-
23005-206 PIN, DOWELPIN, DOWEL
-
33005-514 BOLTBOLT
-
43003-647 BUSHING, SHAFT - OIL PUMPBUSHING, SHAFT - OIL PUMP
-
53006-077 BOLTBOLT
-
63006-052 CASE, MAGNETOCASE, MAGNETO
-
73008-304 PLATE, OIL SEALPLATE, OIL SEAL
-
83004-338 BOLT, 6X12BOLT, 6X12
-
90123-788 CABLE TIE - 7 IN.CABLE TIE - 7 IN.
-
100608-375 BRACKET, GROUND WIRE - ENGINEBRACKET, GROUND WIRE - ENGINE
-
110145-105 SCREW, M6X14MMSCREW, M6X14MM
