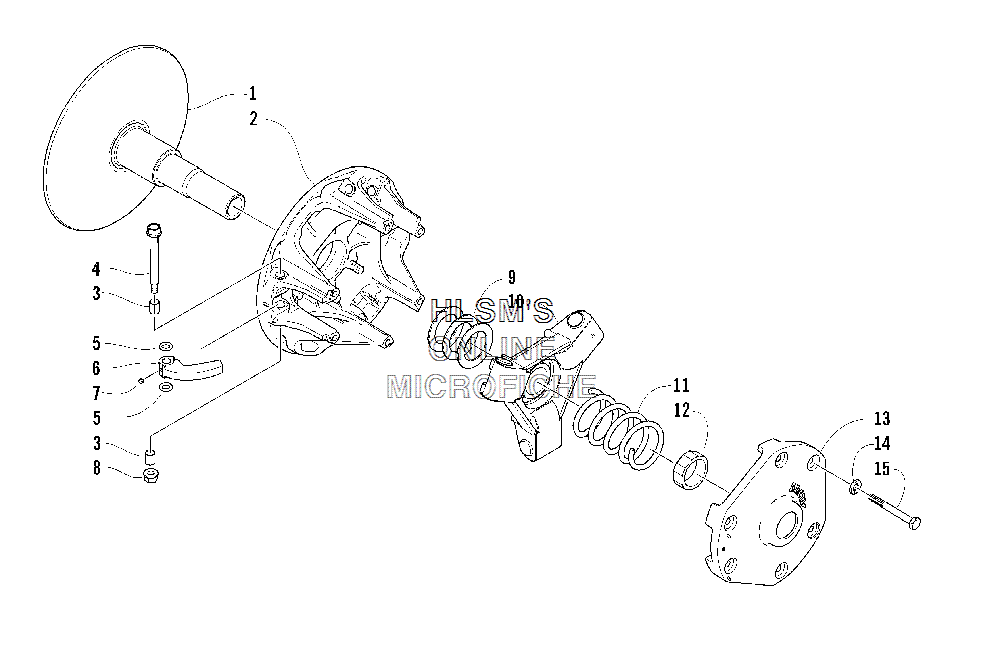

DRIVE CLUTCH для Arctic Cat ZR 900 EFI - 2006 года выпуска
-
№АртикулНазвание
-
310725-534 DRIVE CLUTCHDRIVE CLUTCH
-
310746-759 UNCALIBRATED DRIVE CLUTCHUNCALIBRATED DRIVE CLUTCH
-
314639-217 CAM ARM KIT (INC. 3-5 AND 7-8)CAM ARM KIT (INC. 3-5 AND 7-8)
-
10746-763 SHEAVE, STATIONARYSHEAVE, STATIONARY
-
20746-756 SHEAVE, MOVABLE (INC. 3)SHEAVE, MOVABLE (INC. 3)
-
30646-372 BEARING, CAM ARM PINBEARING, CAM ARM PIN
-
40646-747 PIN, CAM ARMPIN, CAM ARM
-
51602-692 O-RINGO-RING
-
60746-742 ARM, CAM (INC. 7)ARM, CAM (INC. 7)
-
60746-673 ARM, CAM (INC. 7) (5-9,000 FT ALT.)ARM, CAM (INC. 7) (5-9,000 FT ALT.)
-
60746-672 ARM, CAM (INC. 7) (OVER 9,000 FT ALT.)ARM, CAM (INC. 7) (OVER 9,000 FT ALT.)
-
71623-183 SCREW, SETSCREW, SET
-
88048-366 NUT, LOCKNUT, LOCK
-
90646-377 WASHER, SPACERWASHER, SPACER
-
100746-115 SPIDER ASSY.SPIDER ASSY.
-
110646-155 SPRING, DRIVE CLUTCH - PURPLESPRING, DRIVE CLUTCH - PURPLE
-
110646-147 SPRING, DRIVE CLUTCH - YELLOW/GREEN (OVER 5,000 FT ALT.)SPRING, DRIVE CLUTCH - YELLOW/GREEN (OVER 5,000 FT ALT.)
-
120646-140 NUTNUT
-
130746-160 COVERCOVER
-
148051-212 WASHER, LOCK - SPRINGWASHER, LOCK - SPRING
-
151623-442 SCREW, MACHINESCREW, MACHINE
