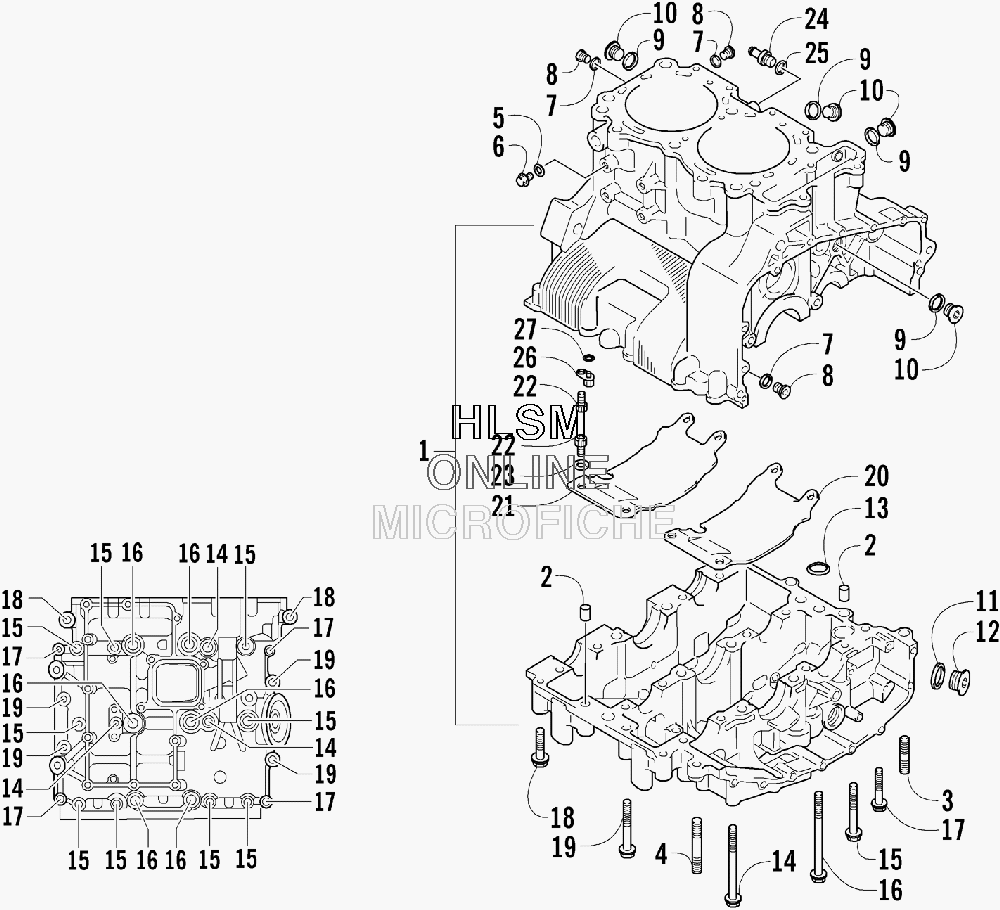

CRANKCASE ASSEMBLY для Arctic Cat JAGUAR Z1 EARLY BUILD (GREEN) - 2007 года выпуска
-
№АртикулНазвание
-
13007-080 CRANKCASE ASSEMBLY (INC. 2)CRANKCASE ASSEMBLY (INC. 2)
-
23004-822 ...PIN, DOWEL...PIN, DOWEL
-
33007-081 BOLT, STUDBOLT, STUD
-
43002-431 BOLT, STUDBOLT, STUD
-
53402-444 GASKET, WATER DRAIN BOLTGASKET, WATER DRAIN BOLT
-
63004-705 BOLT, WATER DRAINBOLT, WATER DRAIN
-
73007-083 GASKET, OIL PLUGGASKET, OIL PLUG
-
83423-352 PLUG, OILPLUG, OIL
-
93402-556 GASKET, OIL PLUGGASKET, OIL PLUG
-
103403-004 PLUG, OILPLUG, OIL
-
113007-084 GASKET, OIL PLUGGASKET, OIL PLUG
-
123007-085 PLUG, OILPLUG, OIL
-
133007-086 O-RING, CRANKCASEO-RING, CRANKCASE
-
143007-087 BOLTBOLT
-
153007-088 BOLTBOLT
-
163007-089 BOLTBOLT
-
173004-369 BOLTBOLT
-
180693-397 BOLTBOLT
-
193004-370 BOLTBOLT
-
203007-090 PLATE, OIL SEPARATOR - RIGHTPLATE, OIL SEPARATOR - RIGHT
-
213007-091 PLATE, OIL SEPARATOR - LEFTPLATE, OIL SEPARATOR - LEFT
-
223007-092 BOLTBOLT
-
233004-652 WASHERWASHER
-
243007-093 FITTING, WATER BYPASS HOSEFITTING, WATER BYPASS HOSE
-
253402-013 GASKET, WATER BYPASS HOSE FITTINGGASKET, WATER BYPASS HOSE FITTING
-
263007-094 JET, PISTON COOLINGJET, PISTON COOLING
-
273423-051 O-RINGO-RING
