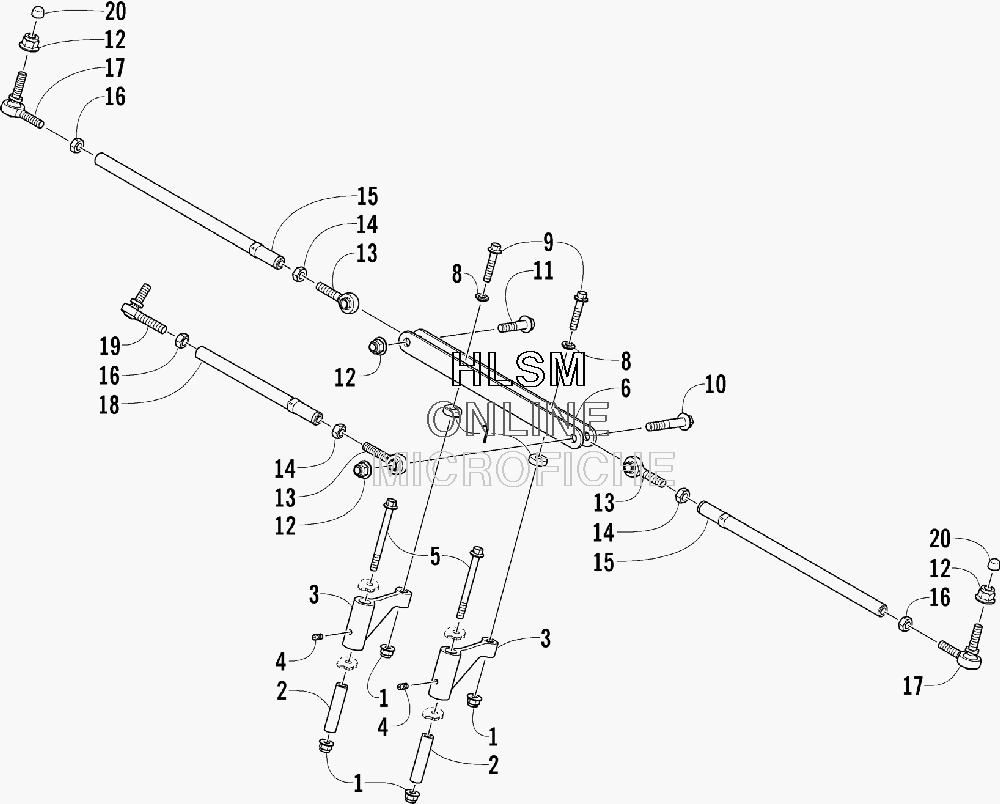

TIE ROD ASSEMBLY для Arctic Cat JAGUAR Z1 EARLY BUILD (GREEN) - 2007 года выпуска
-
№АртикулНазвание
-
18427-802 NUT, LOCKNUT, LOCK
-
22603-436 AXLE, STEERING ARMAXLE, STEERING ARM
-
31707-007 ARM, STEERING - ASSEMBLY (INC. 4)ARM, STEERING - ASSEMBLY (INC. 4)
-
41623-010 ...FITTING, GREASE...FITTING, GREASE
-
58408-885 SCREW, CAPSCREW, CAP
-
61705-015 DRAG LINK (INC. 7)DRAG LINK (INC. 7)
-
70605-760 ...BEARING...BEARING
-
80605-764 AXLE, DRAG LINKAXLE, DRAG LINK
-
98408-840 SCREW, CAPSCREW, CAP
-
108408-065 SCREW, CAPSCREW, CAP
-
118408-045 SCREW, CAPSCREW, CAP
-
128427-002 NUT, LOCKNUT, LOCK
-
130605-752 BALL JOINT, TIE ROD - RIGHT-HAND THREADBALL JOINT, TIE ROD - RIGHT-HAND THREAD
-
148420-002 NUT, HEX - RIGHT-HAND THREADNUT, HEX - RIGHT-HAND THREAD
-
150605-751 TUBE, TIE ROD - SPINDLETUBE, TIE ROD - SPINDLE
-
160423-013 NUT, HEX - LEFT-HAND THREADNUT, HEX - LEFT-HAND THREAD
-
170605-753 BALL JOINT, STEERING - LEFT-HAND THREADBALL JOINT, STEERING - LEFT-HAND THREAD
-
180605-754 TUBE, TIE RODTUBE, TIE ROD
-
190605-755 BALL JOINT, TIE ROD - LEFT-HAND THREADBALL JOINT, TIE ROD - LEFT-HAND THREAD
-
204606-818 CAP, TIE RODCAP, TIE ROD
