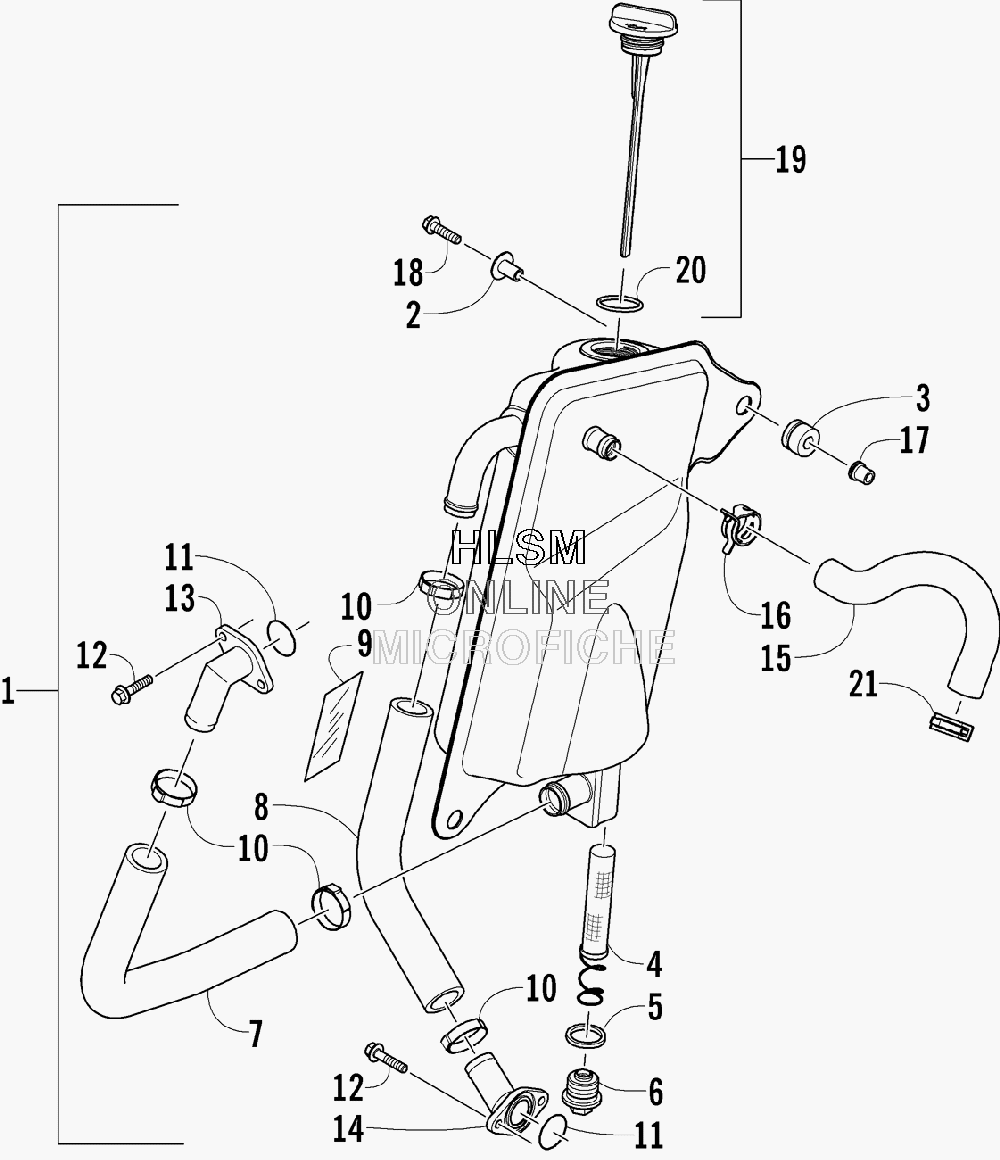

OIL TANK ASSEMBLY для Arctic Cat JAGUAR Z1 EARLY BUILD (GREEN) - 2007 года выпуска
-
№АртикулНазвание
-
10770-703 TANK, OIL - ASSEMBLY (INC. 2-9 AND TWO NO. 10)TANK, OIL - ASSEMBLY (INC. 2-9 AND TWO NO. 10)
-
21623-573 ...BUSHING, FLANGED...BUSHING, FLANGED
-
31670-729 ...GROMMET...GROMMET
-
41670-819 ...SCREEN, OIL TANK...SCREEN, OIL TANK
-
51670-870 ...WASHER, CRUSH...WASHER, CRUSH
-
61670-820 ...PLUG, DRAIN...PLUG, DRAIN
-
70610-641 ...HOSE, OIL - FEED...HOSE, OIL - FEED
-
80610-642 ...HOSE, OIL - RETURN...HOSE, OIL - RETURN
-
90706-548 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
101623-515 ...CLAMP, HOSE...CLAMP, HOSE
-
110648-441 O-RINGO-RING
-
128408-616 SCREW, CAPSCREW, CAP
-
131670-727 FITTING, OIL SUPPLY - ENGINEFITTING, OIL SUPPLY - ENGINE
-
141670-726 FITTING, OIL RETURN - ENGINEFITTING, OIL RETURN - ENGINE
-
150610-664 HOSE, BREATHER - OIL TANKHOSE, BREATHER - OIL TANK
-
161623-287 CLAMP, HOSECLAMP, HOSE
-
170423-391 INSERTINSERT
-
188408-630 SCREW, CAPSCREW, CAP
-
191670-872 CAP, OIL TANK (INC. 20)CAP, OIL TANK (INC. 20)
-
201670-823 ...SEAL, CAP - OIL TANK...SEAL, CAP - OIL TANK
-
211623-289 CLAMP, HOSECLAMP, HOSE
