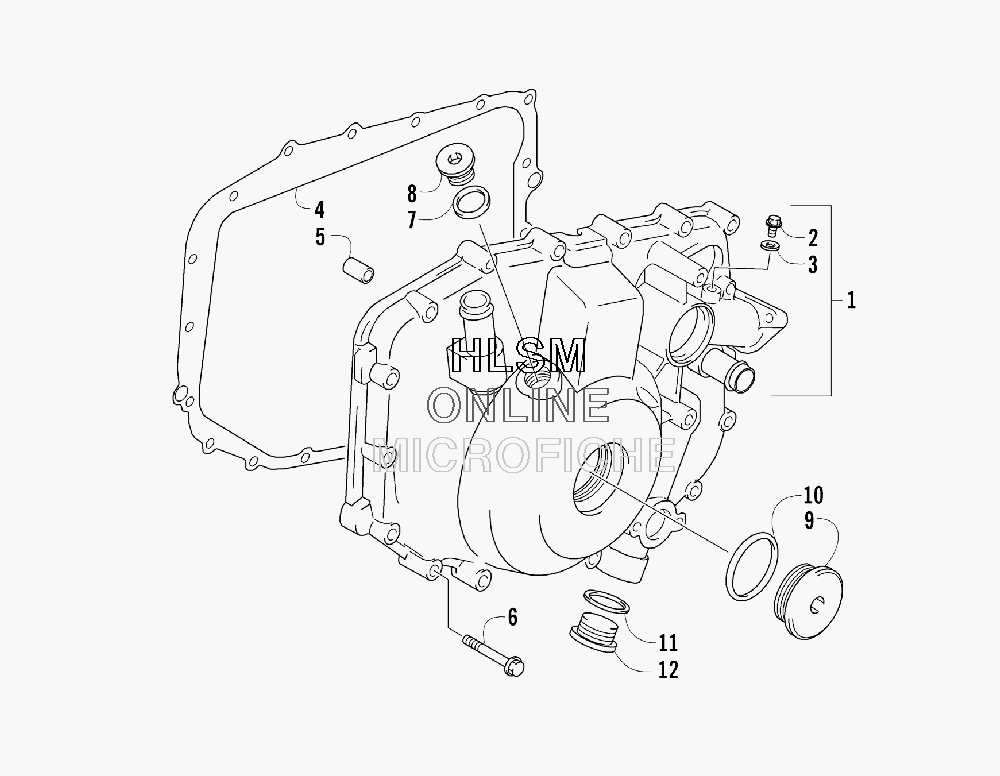

MAGNETO COVER для Arctic Cat JAGUAR Z1 EARLY BUILD (GREEN) - 2007 года выпуска
-
№АртикулНазвание
-
13007-095 COVER, MAGNETOCOVER, MAGNETO
-
23006-598 ...BOLT, AIR-RELEASE...BOLT, AIR-RELEASE
-
33003-290 ...GASKET...GASKET
-
43007-096 GASKET, MAGNETO COVERGASKET, MAGNETO COVER
-
53007-097 PIN, DOWEL - MAGNETO COVERPIN, DOWEL - MAGNETO COVER
-
60693-327 BOLT, MAGNETO COVERBOLT, MAGNETO COVER
-
73402-013 GASKETGASKET
-
83423-180 PLUG, TDCPLUG, TDC
-
93402-898 PLUG, CRANKSHAFT HOLEPLUG, CRANKSHAFT HOLE
-
103423-061 O-RINGO-RING
-
113403-106 GASKET, OIL PLUGGASKET, OIL PLUG
-
123007-085 PLUG, OILPLUG, OIL
