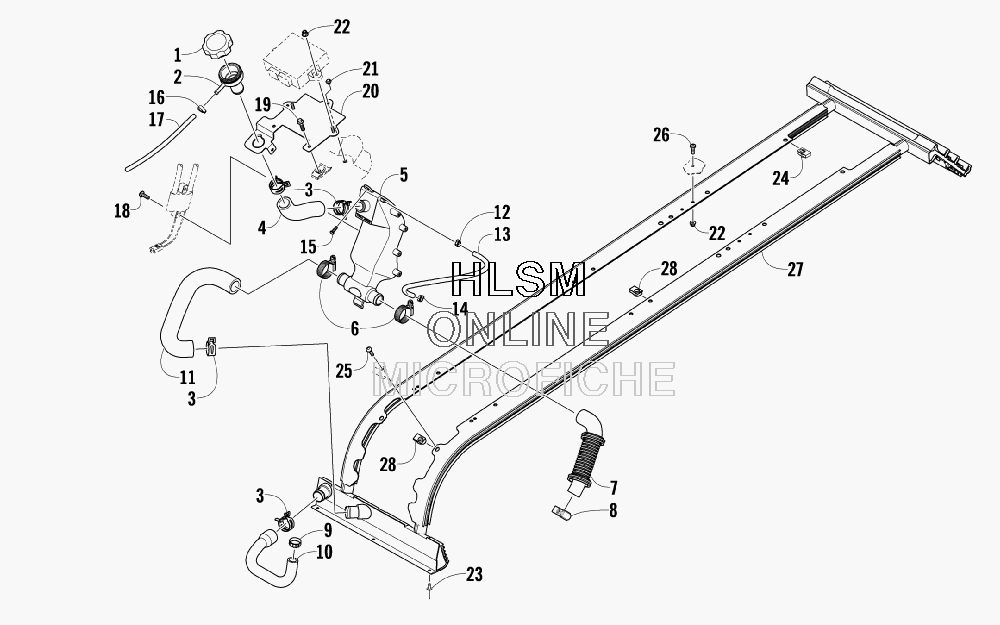

COOLING ASSEMBLY для Arctic Cat AC F5 EFI - 2009 года выпуска
-
№АртикулНазвание
-
14606-209 CAPCAP
-
21670-848 NECK, FILLERNECK, FILLER
-
30623-736 CLAMP, HOSECLAMP, HOSE
-
40610-750 HOSE, COOLANT - FILLER NECK/COOLANT TANKHOSE, COOLANT - FILLER NECK/COOLANT TANK
-
51670-885 TANK, COOLANTTANK, COOLANT
-
61623-092 CLAMP, HOSECLAMP, HOSE
-
70610-710 HOSE, COOLANT - ENGINE/COOLANT TANKHOSE, COOLANT - ENGINE/COOLANT TANK
-
81623-229 CLAMP, HOSECLAMP, HOSE
-
91623-418 CLAMP, HOSECLAMP, HOSE
-
100610-674 HOSE, COOLANT - ENGINE/HEAT EXCHANGERHOSE, COOLANT - ENGINE/HEAT EXCHANGER
-
110610-696 HOSE, COOLANT - HEAT EXCHANGER/COOLANT TANKHOSE, COOLANT - HEAT EXCHANGER/COOLANT TANK
-
121623-655 CLAMP, HOSECLAMP, HOSE
-
130610-538 HOSE, VENT - 25 FTHOSE, VENT - 25 FT
-
141623-619 CLAMP, HOSECLAMP, HOSE
-
158470-510 SCREW, MACHINESCREW, MACHINE
-
160124-045 CLAMP, HOSECLAMP, HOSE
-
170610-692 HOSE - GREEN - 25 FTHOSE - GREEN - 25 FT
-
170610-693 HOSE - GREEN - 100 FTHOSE - GREEN - 100 FT
-
181623-609 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
198408-620 SCREW, MACH-TSTRH M6X1.0X20 Z & YSCREW, MACH-TSTRH M6X1.0X20 Z & Y
-
204706-053 BRACKET, FILLER NECKBRACKET, FILLER NECK
-
211623-760 SCREW, CAPSCREW, CAP
-
228427-602 NUT, LOCKNUT, LOCK
-
238060-686 RIVETRIVET
-
240423-577 CLIP, U-NUTCLIP, U-NUT
-
258470-520 SCREW, MACHINESCREW, MACHINE
-
268470-620 SCREW, MACHINESCREW, MACHINE
-
274706-298 EXCHANGER, HEAT (INC. 28)EXCHANGER, HEAT (INC. 28)
-
281623-637 ...CLIP, U-NUT...CLIP, U-NUT
