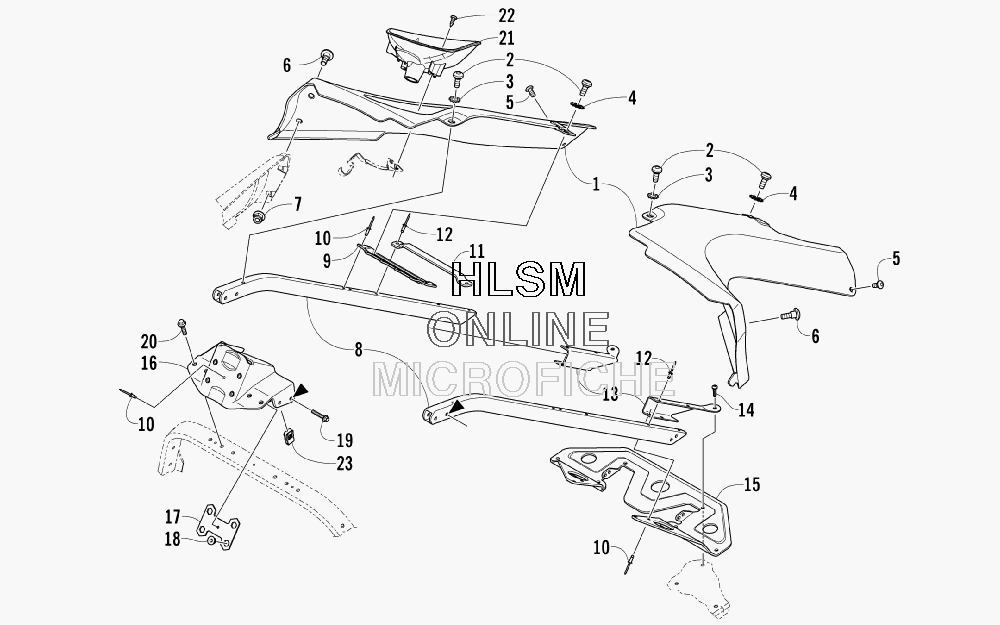

SEAT SUPPORT ASSEMBLY для Arctic Cat AC F5 EFI - 2009 года выпуска
-
№АртикулНазвание
-
13706-711 SPAR, REAR - RIGHT - BLACKSPAR, REAR - RIGHT - BLACK
-
14606-887 SPAR, REAR - LEFT - BLACKSPAR, REAR - LEFT - BLACK
-
20423-396 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
38053-212 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
48053-242 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
58470-510 SCREW, MACHINESCREW, MACHINE
-
60423-355 SCREW, SHOULDERSCREW, SHOULDER
-
78427-602 NUT, LOCKNUT, LOCK
-
85606-092 TUBE, SUPPORT - RIGHTTUBE, SUPPORT - RIGHT
-
85606-093 TUBE, SUPPORT - LEFTTUBE, SUPPORT - LEFT
-
94606-329 BRACKET, CROSSOVERBRACKET, CROSSOVER
-
108060-488 RIVETRIVET
-
114606-745 BRACKET, CROSSOVER - SEAT-BASEBRACKET, CROSSOVER - SEAT-BASE
-
128060-484 RIVETRIVET
-
135606-096 BRACKET, NONADJUSTABLE - RIGHTBRACKET, NONADJUSTABLE - RIGHT
-
135606-097 BRACKET, NONADJUSTABLE - LEFTBRACKET, NONADJUSTABLE - LEFT
-
148470-520 SCREW, MACHINESCREW, MACHINE
-
155606-094 PLATE, SUPPORT - LOWERPLATE, SUPPORT - LOWER
-
164606-328 PLATE, SUPPORT - UPPERPLATE, SUPPORT - UPPER
-
170605-948 BRACKET, NUT HOLDERBRACKET, NUT HOLDER
-
188424-602 NUTNUT
-
198408-535 SCREW, CAPSCREW, CAP
-
208408-625 SCREW, CAPSCREW, CAP
-
214606-683 CUP, RECOILCUP, RECOIL
-
220623-727 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
231623-637 CLIP, U-NUTCLIP, U-NUT
