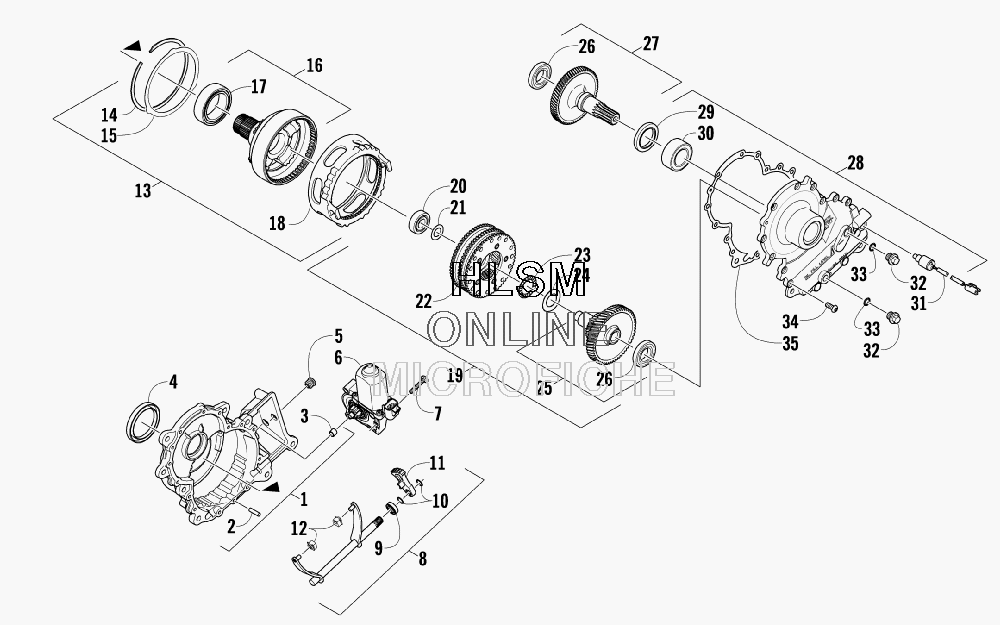

GEARCASE ASSEMBLY для Arctic Cat AC F5 EFI - 2009 года выпуска
-
№АртикулНазвание
-
-1702-053 COMPLETE GEARCASE ASSEMBLYCOMPLETE GEARCASE ASSEMBLY
-
11702-052 GEARCASE (INC. 2-4)GEARCASE (INC. 2-4)
-
21602-915 ...PIN, DOWEL...PIN, DOWEL
-
31602-916 ...BEARING...BEARING
-
42602-159 ...SEAL, OIL...SEAL, OIL
-
51602-917 PLUG, PLASTICPLUG, PLASTIC
-
60630-241 ACTUATOR, SHIFTACTUATOR, SHIFT
-
78468-536 SCREW, MACHINESCREW, MACHINE
-
81702-006 FORK, SHIFT - ASSEMBLY (INC. 9-11)FORK, SHIFT - ASSEMBLY (INC. 9-11)
-
92602-013 ...SEAL, OIL...SEAL, OIL
-
102602-057 ...RING, RETAINING...RING, RETAINING
-
112602-042 ...ARM, SHIFT FORK...ARM, SHIFT FORK
-
122602-127 BLOCK, SLIDERBLOCK, SLIDER
-
130702-910 SLIDER ASSEMBLY (INC. 14-18)SLIDER ASSEMBLY (INC. 14-18)
-
142602-040 ...RING, RETAINING...RING, RETAINING
-
152602-064 ...WASHER, THRUST...WASHER, THRUST
-
182602-063 ...SLIDER...SLIDER
-
190702-853 GEAR, TRANSFER - 66T/34T - ASSEMBLY (INC. 20-25 AND ONE NO. 26)GEAR, TRANSFER - 66T/34T - ASSEMBLY (INC. 20-25 AND ONE NO. 26)
-
201602-842 ...BEARING...BEARING
-
212602-058 ...WASHER, THRUST...WASHER, THRUST
-
220702-867 ...GEAR, PLANETARY - ASSEMBLY...GEAR, PLANETARY - ASSEMBLY
-
231602-840 ...BEARING, THRUST...BEARING, THRUST
-
241602-841 ...WASHER, THRUST...WASHER, THRUST
-
250702-852 ...GEAR, TRANSFER (INC. ONE NO. 26)...GEAR, TRANSFER (INC. ONE NO. 26)
-
261602-981 ......BEARING......BEARING
-
270702-686 SHAFT, INPUT - 54T (INC. ONE NO. 26)SHAFT, INPUT - 54T (INC. ONE NO. 26)
-
280702-941 COVER, GEARCASE (INC. 29-33)COVER, GEARCASE (INC. 29-33)
-
292602-160 ...SEAL, OIL...SEAL, OIL
-
301602-982 ...BEARING...BEARING
-
310630-224 ...SWITCH, GEAR INDICATOR...SWITCH, GEAR INDICATOR
-
322602-099 ...PLUG, DRAIN...PLUG, DRAIN
-
331602-213 ...O-RING...O-RING
-
340423-538 SCREW, MACHINESCREW, MACHINE
-
352602-183 GASKET, GEARCASEGASKET, GEARCASE
-
**4639-628 FLUID, GEARCASE - 12 OZ (NOT ILLUSTRATED)FLUID, GEARCASE - 12 OZ (NOT ILLUSTRATED)
